Specifications
Maximum power(Pmax) 100W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6.11 A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 5.55A
Cell efficiency 21%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 18pcs
Weight 1800g

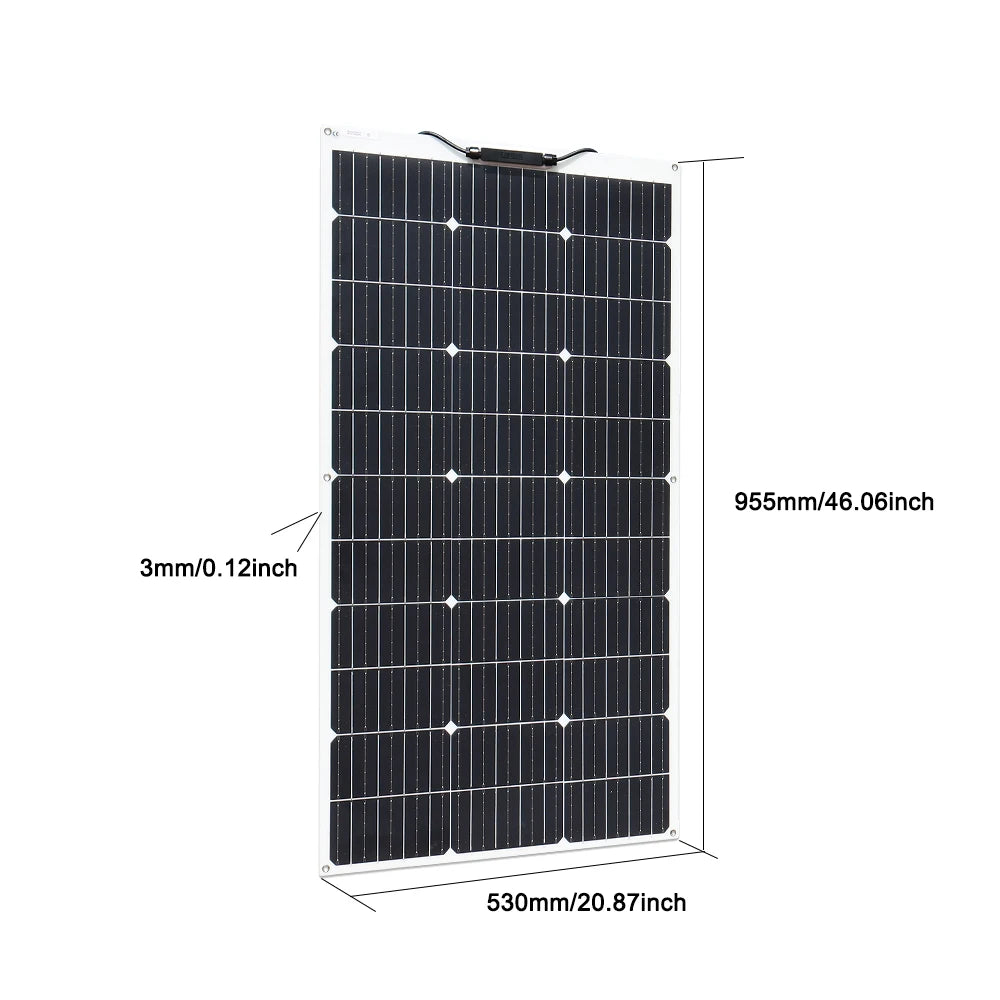

Size 955*530*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
OR New solar panel 100W
16.5v 100w solar panel specifications:
Aximum power(pmax) 100w
Maximum system voltage 600v dc
Open circuit voltage(voc) 19.8v
Short circuit current(isc) 6.66a
Maximum power voltage(vmp) 16.5v
Maximum power current(imp) 6.06a
Number of cells 30pcs
Weight 2kg
Yesze 975mm*550mm*3mm
Operating temperature(noct) 45 plus or minus 2 celsius system
Stc: lrradiance1000w/m2,temperature 25 celsius system, am=1.5
Features:
1.[Excellent performance] Using high-quality monocrystalline silicon cells, high-efficiency monocrystalline silicon solar cells provide good performance even in low light conditions

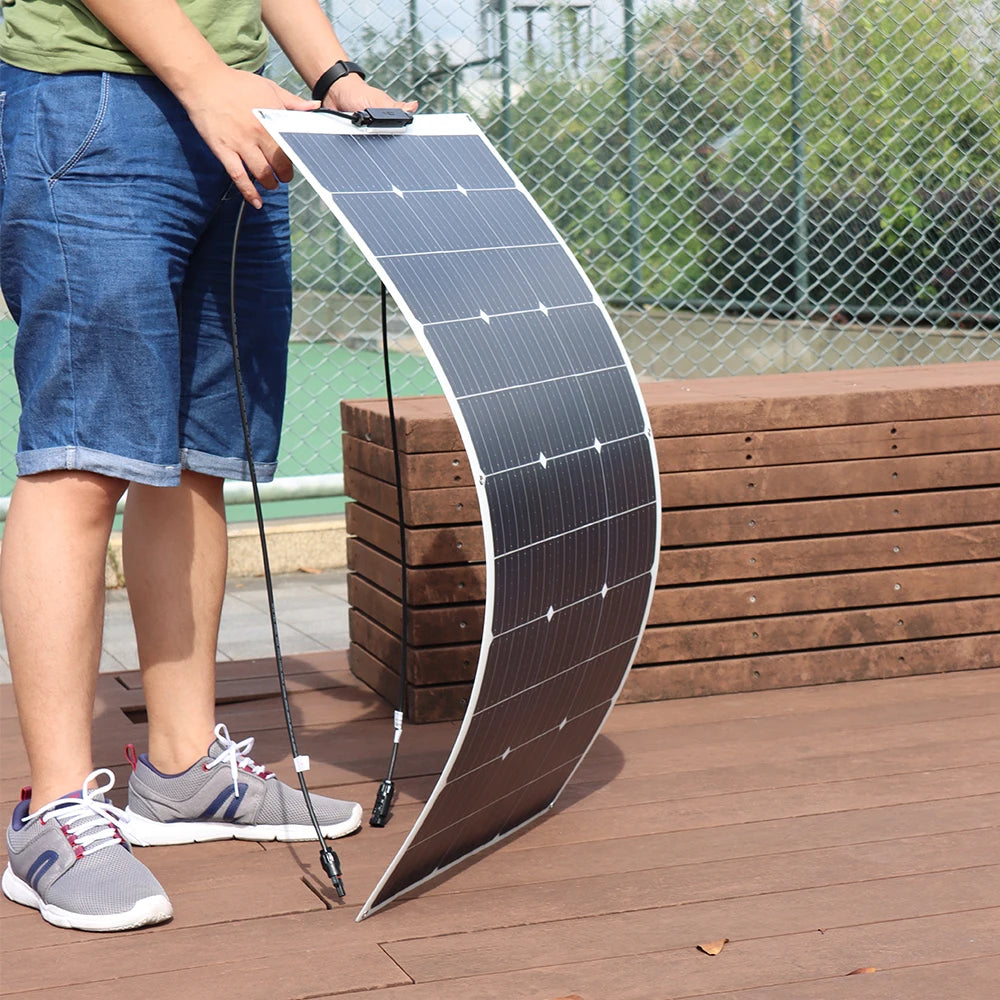

2.[Flexible]This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.
3.[Practicality]Light energy converts electrical energy and has strong practicability. It is a good supplement for power shortages and places where the city power cannot reach, such as mountains, marine, deserts, etc.

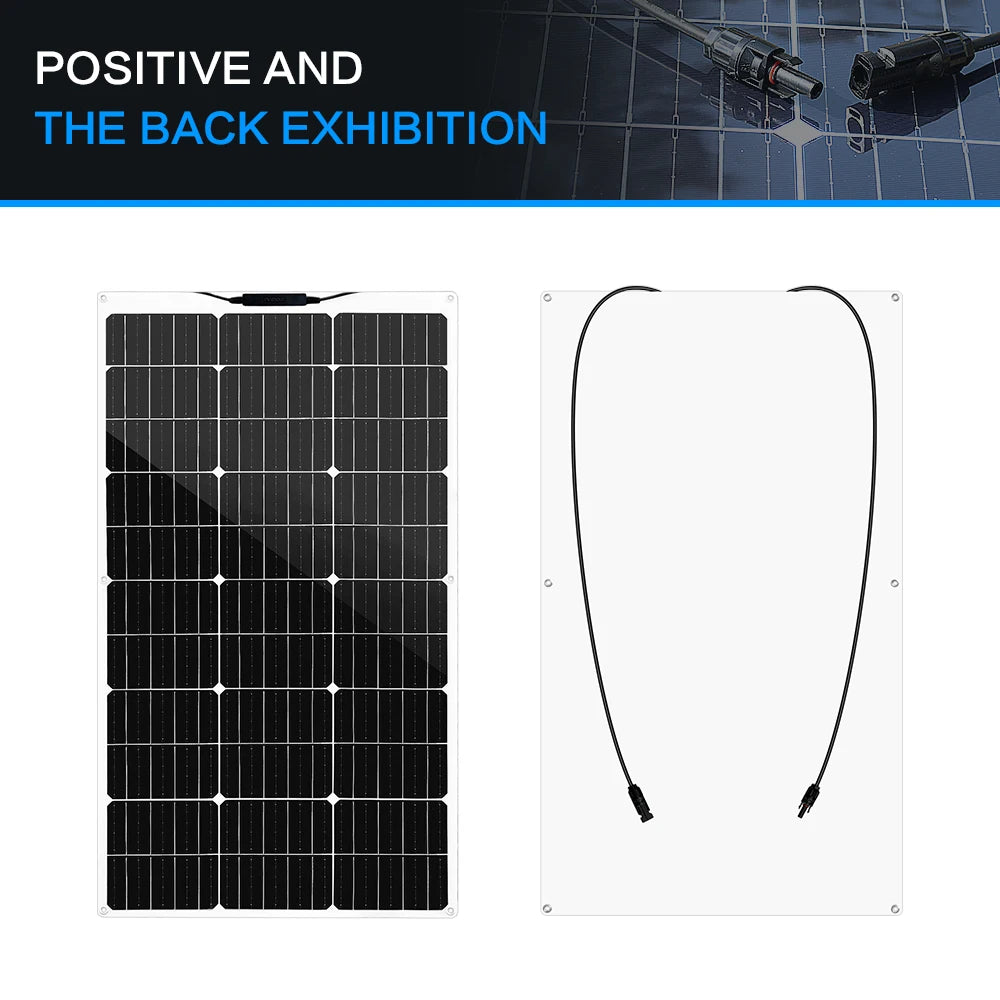

4.[Nice Details] The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.
5.[Easy Installation]The solar panel has 6 grommet mounting holes are available to attach fasteners,and can also be installed with silicone and adhesive tape. 12-month guarantee service.
Packing list

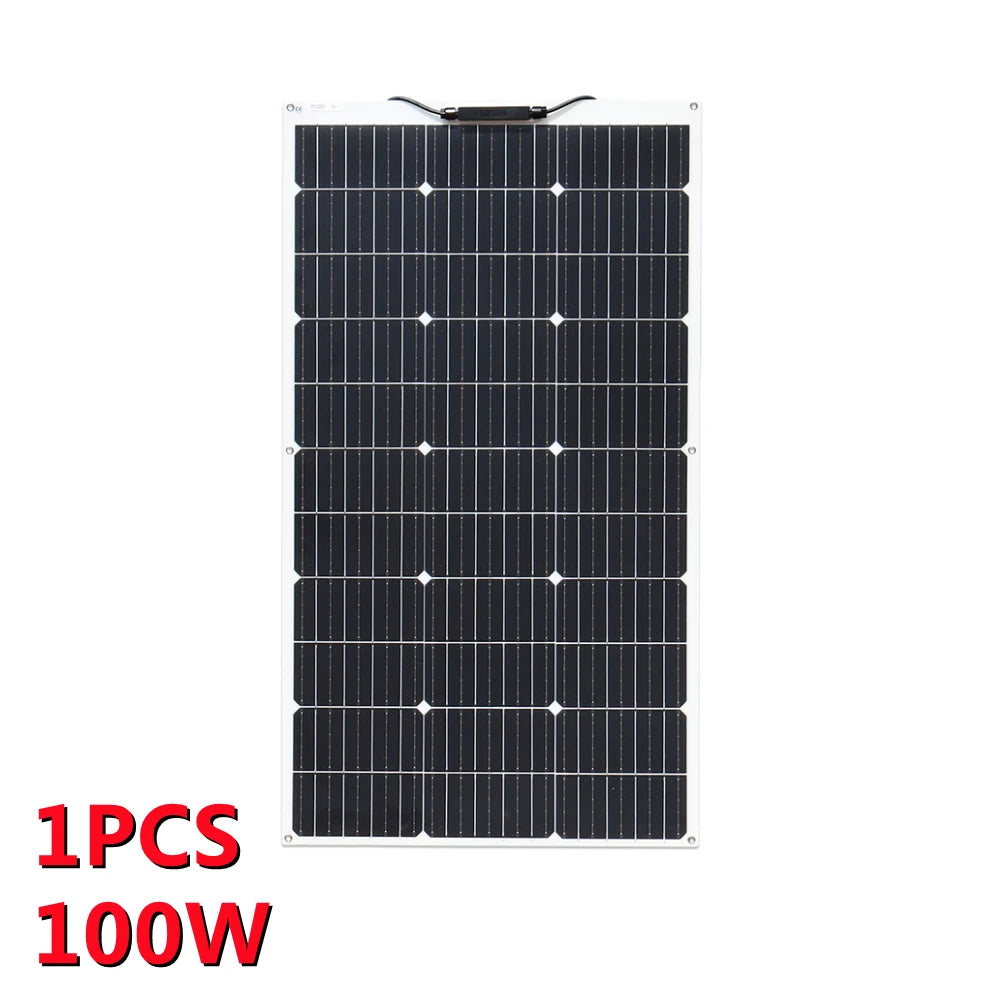

1 x 100W 18V Solar Panel (100W)
or

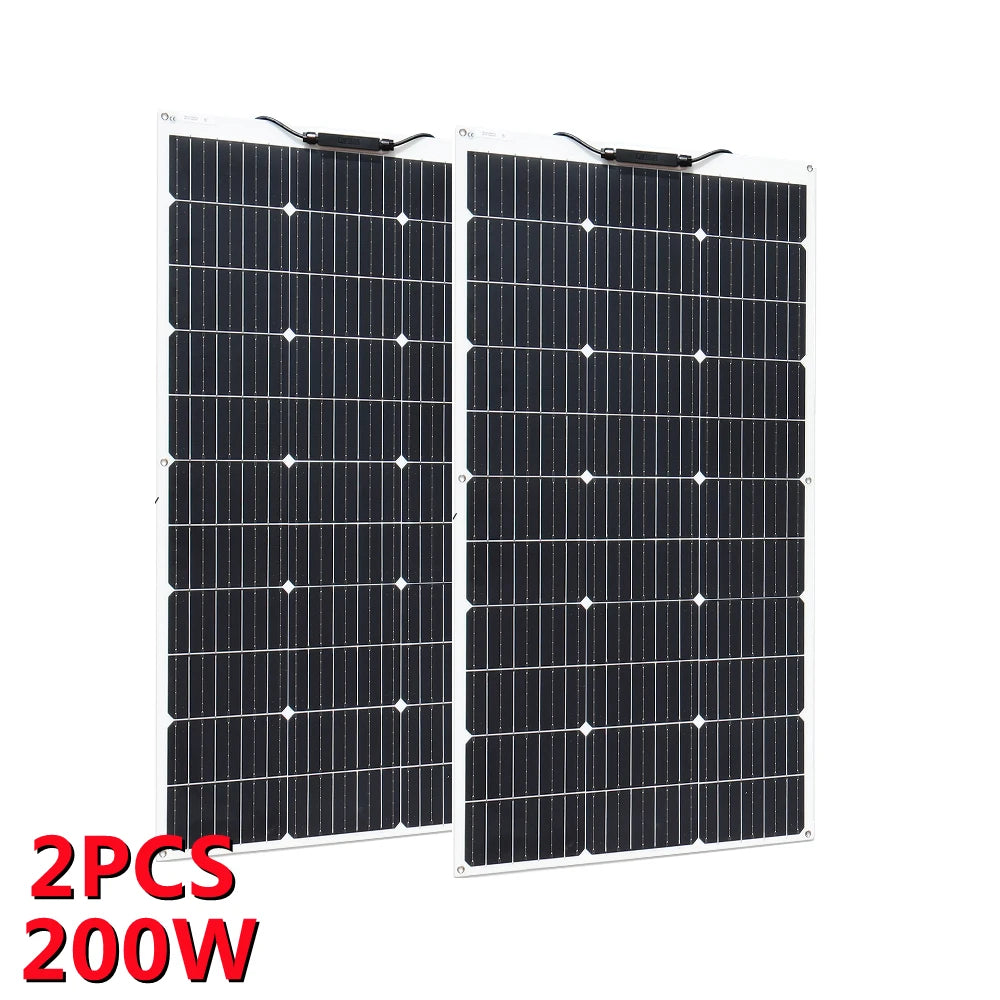

2 x 100W 18V Solar Panel (200W)
or

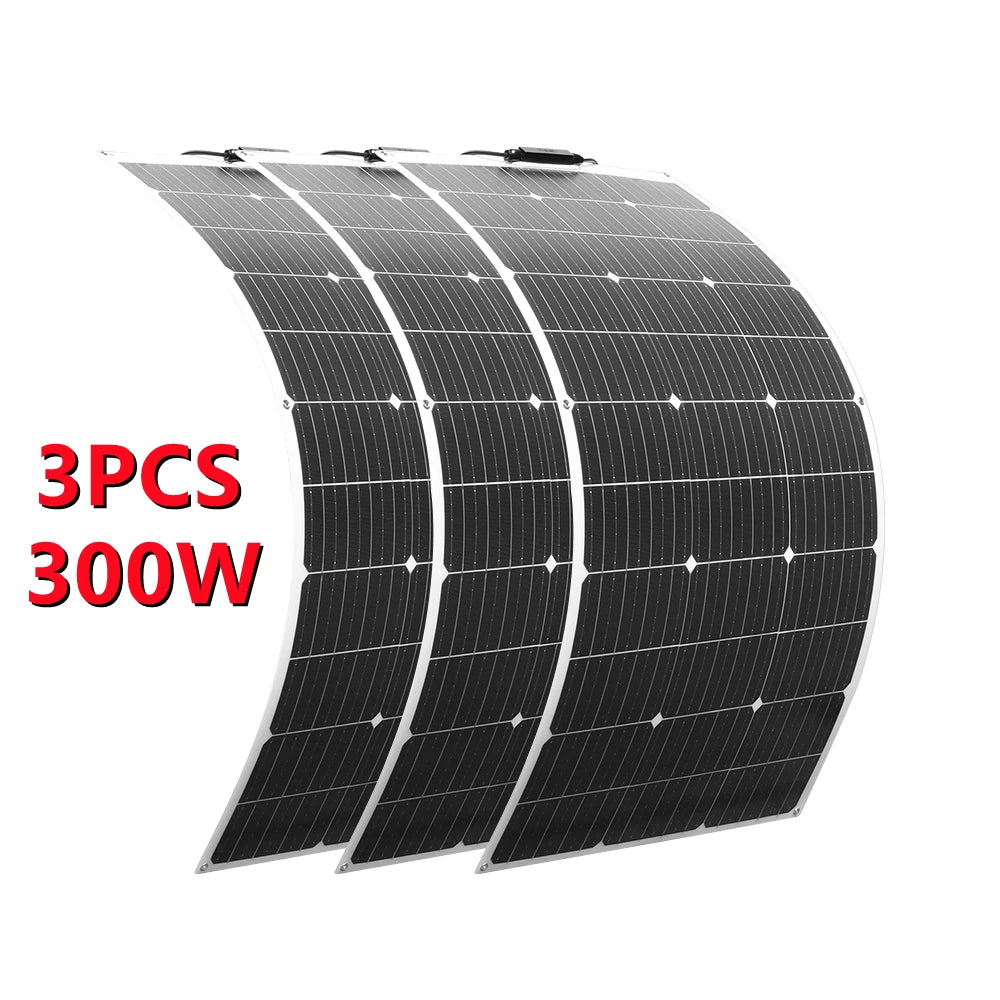

3 x 100W 18V Solar Panel(300W)
or

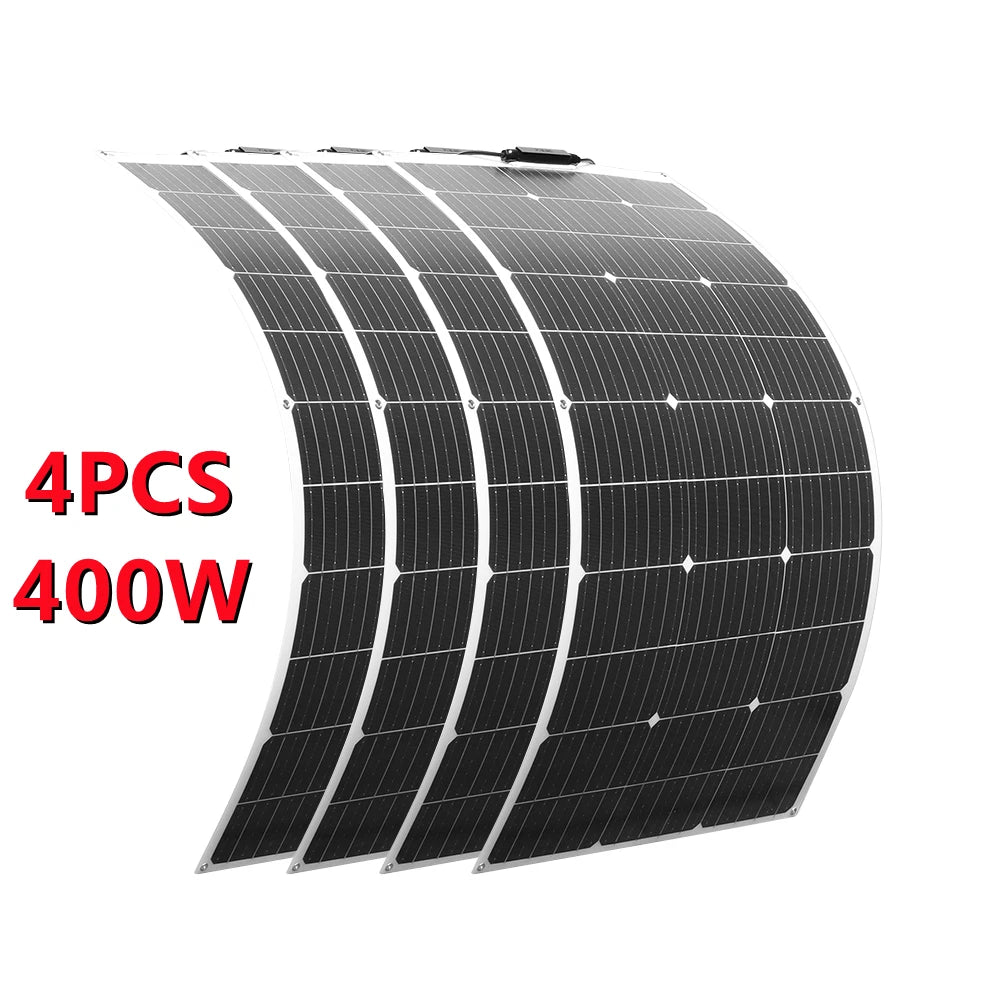

4 x 100W 18V Solar Panel (400W)
or

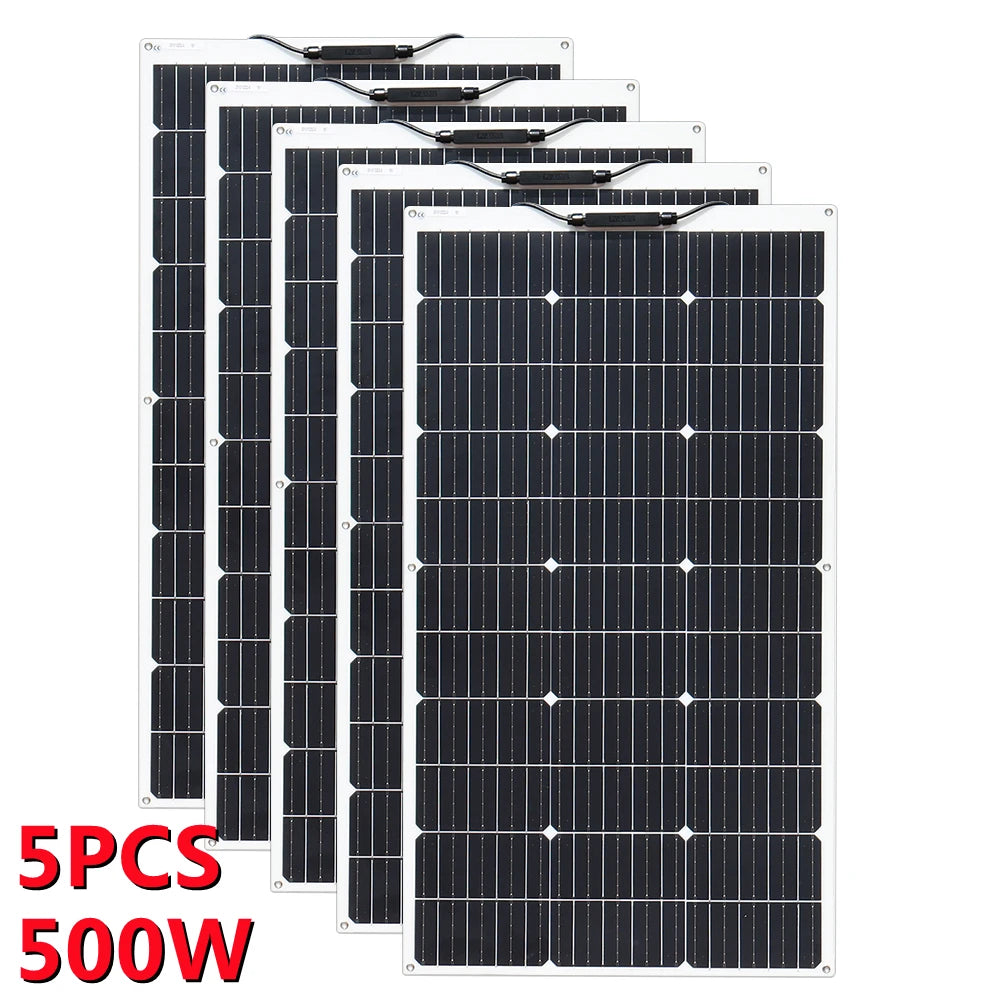

5 x 100W 18V Solar Panel (500W)
or

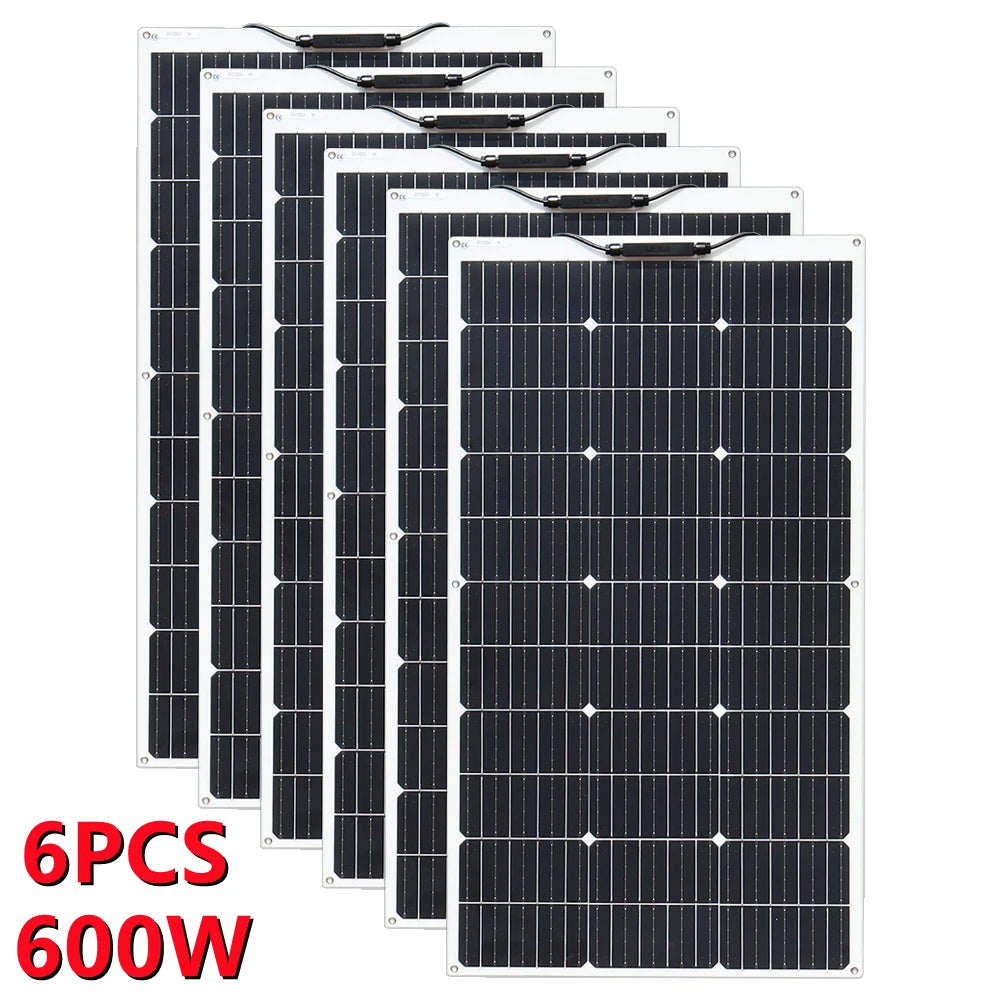

6 x 100W 18V Solar Panel(600W)
or

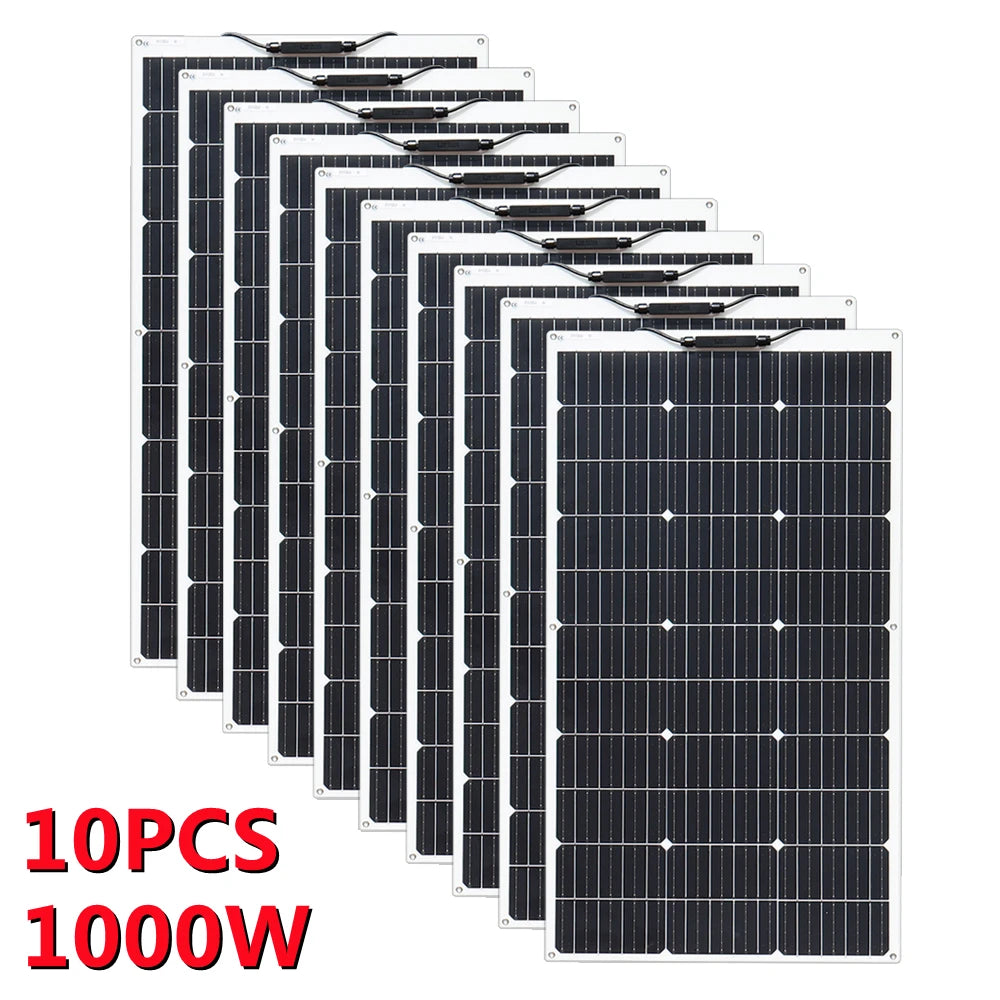

10 x 100W 18V Solar Panel (1000W)
or

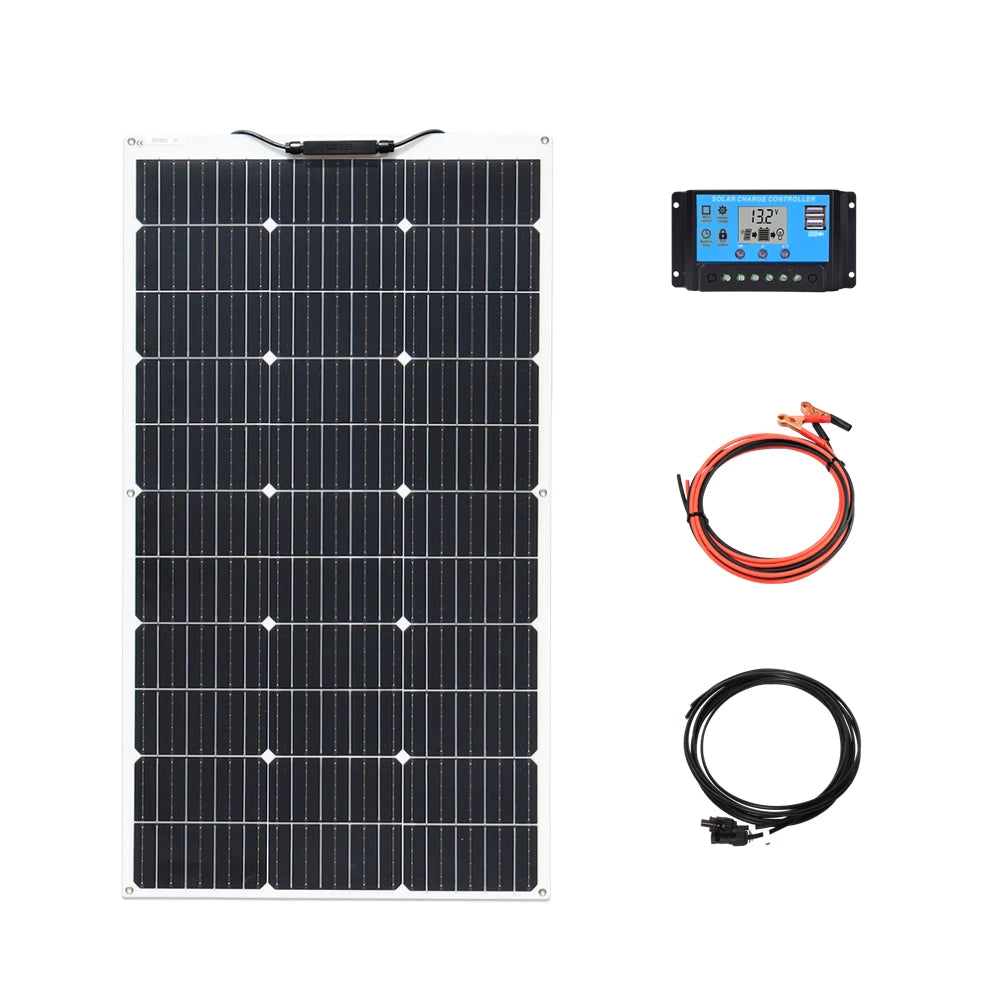

1 x 100W 18V Solar Panel (100W Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 10A Controller
or

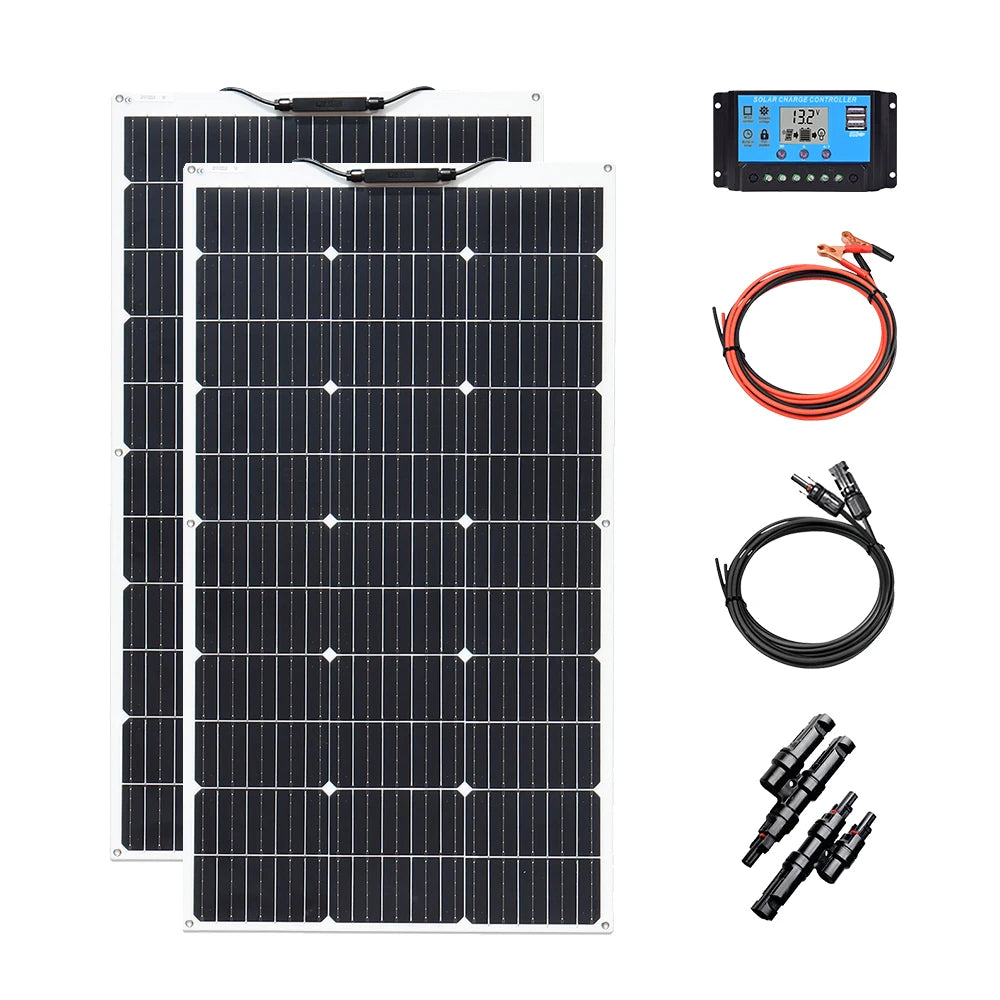

2 x 100W 18V Solar Panel (200W Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 20A Controller
1 set 2 in 1 PV adapter
