BOGUANG balcony power plants kit 400W/800W Solar Panles with 300W/600W Inverter Waterproof solar system for home complete kit
Regular price $489.89SPECIFICATIONS
Brand Name: BOGUANG
Certification: CE,weee
Flexible Solar Panel: No
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 800W / 400W
Model Number: Solar Panel System
Module Efficien: 24%
Nominal Capacity: 400W / 800W
Number of Panels: 1
Origin: Mainland China
Size: 1140*700*25mm /1235*680*25mm
Type: Solar Panel
is_customized: Yes

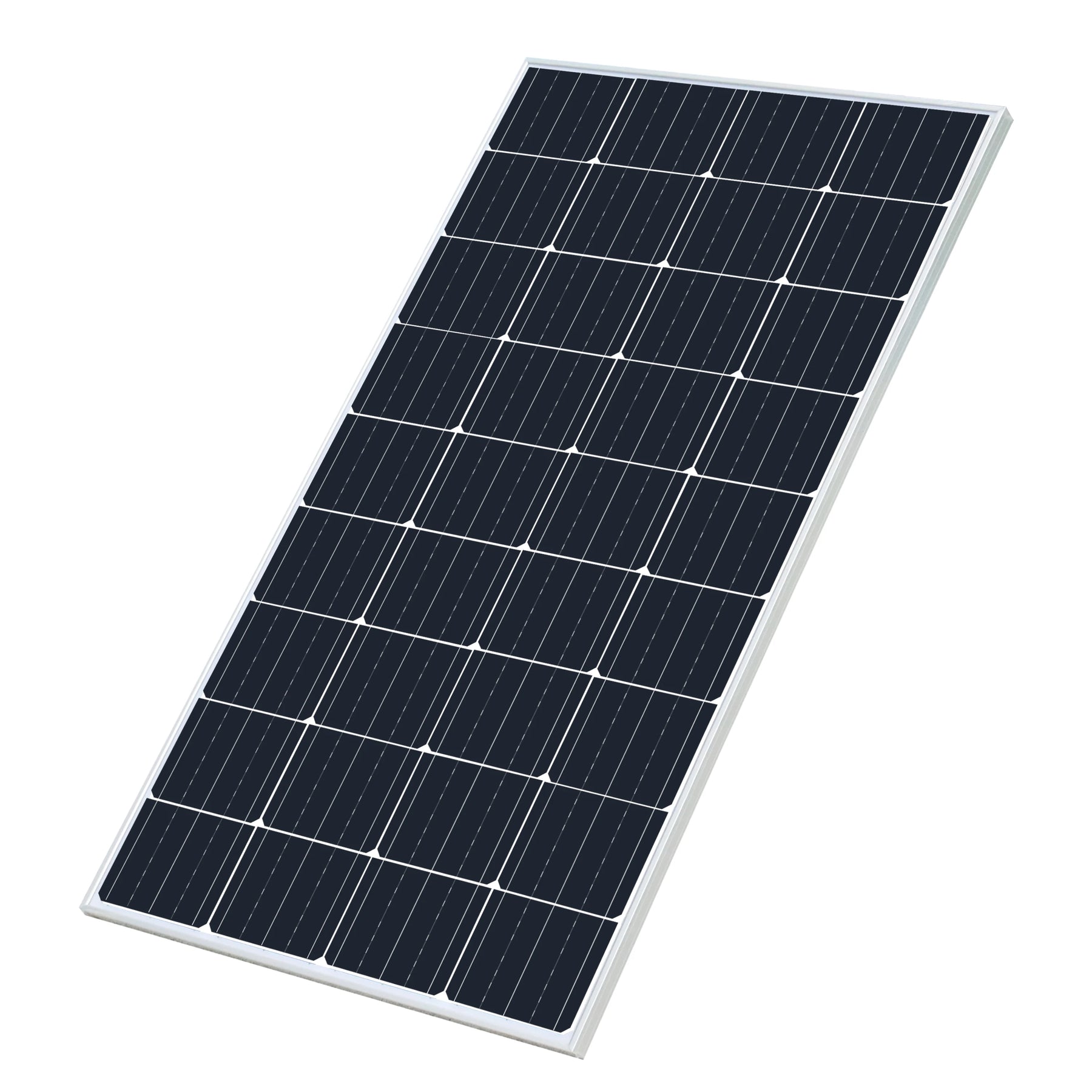

BOGUANG balcony power plants kit 400W/800W Solar Panles with 300W/600W Inverter Waterproof solar system for home complete kit
Maximum power(Pmax) 200W
Vmp(Voltage at Max Power, V)： 18V
Voc(Voltage at Open Circuit, V)： 21.6 V
Output Tolerance: ±3%
Diode: 2 By Pass
Junction Box: IP67 Rated
Temperature range: -20℃-+80℃
Frame: Heavy & Solid Aluminum Alloy
Kind of Glass: 3.2mm Tempered glass
Output Cable: 2.5mm²/14AWG 90mm/3.54＂
Dimensions: 1235*680*25mm (Russian/US stock size 1140*700*25mm）
Weight: 7.96kg
Max System Voltage : 1000V DC(IEC)/600V DC (UL)
STC:Irradiance 1000w/m² Temperature 25℃ AM=1.5

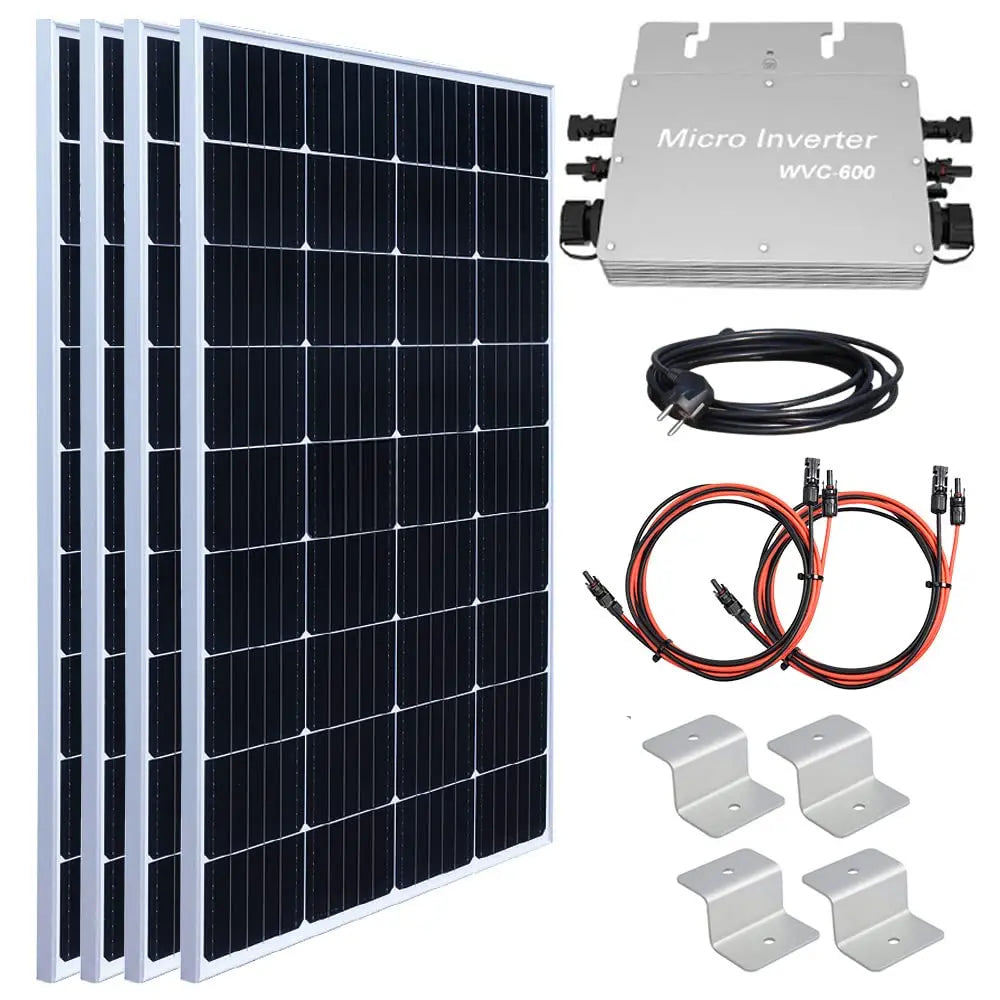

Package of list of "800w kit"
4* 200w glass solar panel

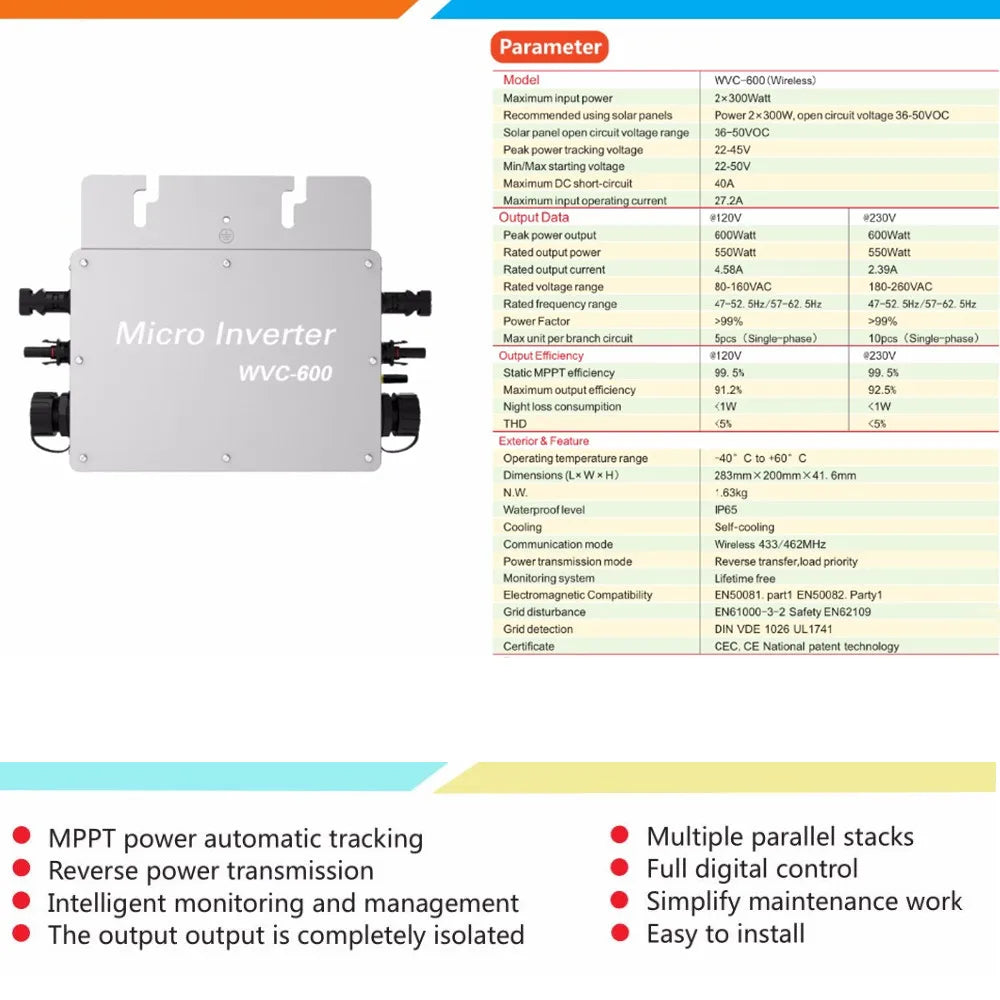

1* 600W 230V Micro Inverter
1* 5 meters AC cable for socket
2* 3 meters extension cable
16* Z brackets
PS:
1. The package is shipped in two packages, the inverter package arrives first, and the solar panel package (returns are not supported) arrives later.
2. The balcony power station is only suitable for home power grids. The AC terminal must meet 230V voltage to start the inverter. The outlet voltage is unstable and the inverter cannot be started.
3. Please connect the positive and negative poles of the inverter correctly, otherwise the inverter may be burned!
4. The reason why the indicator light on the front of the inverter flashes red or does not light up: The solar panel must be exposed to the sun and the voltage of the solar panel is normal. If the solar panel voltage is too low, the inverter cannot start.

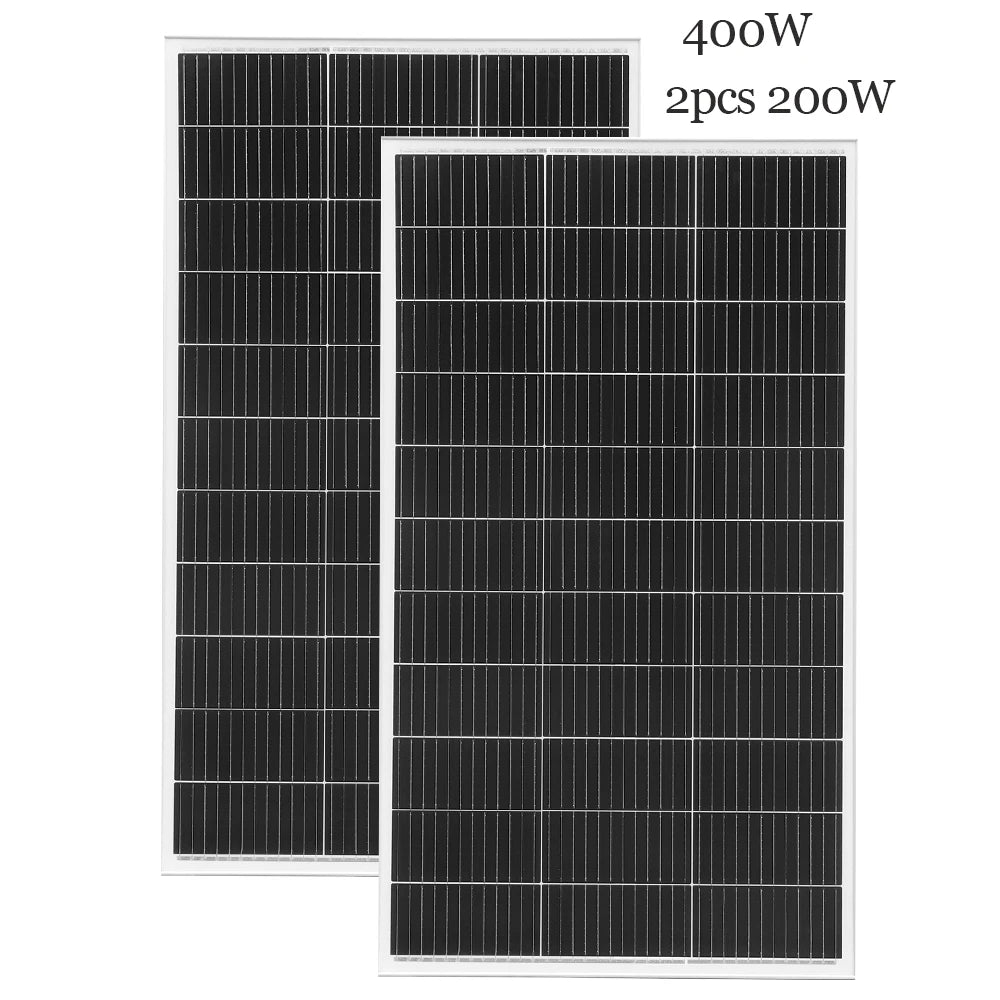

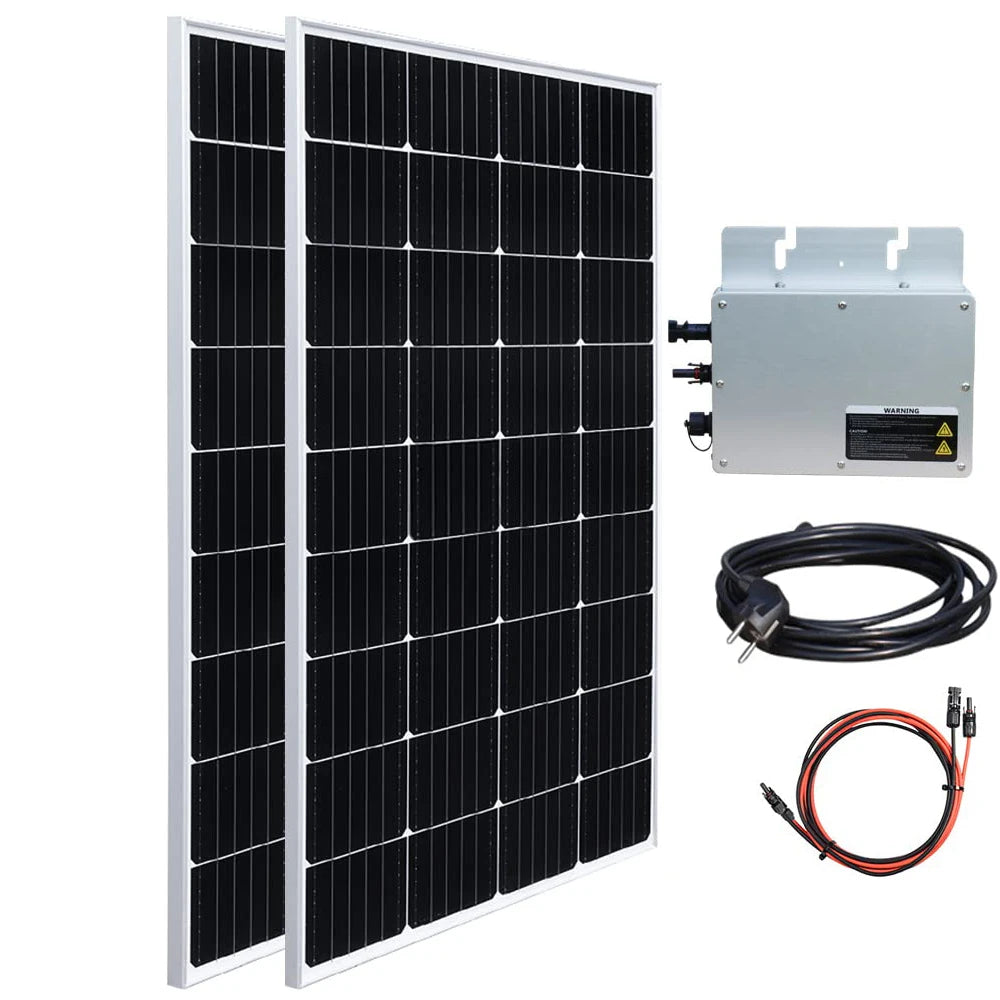

Package of list of "400w kit"
2* 200w glass solar panel
1* 300W 230V Micro Inverter
1* 5 meters AC cable for socket
1* 3 meters extension cable
8* Z brackets

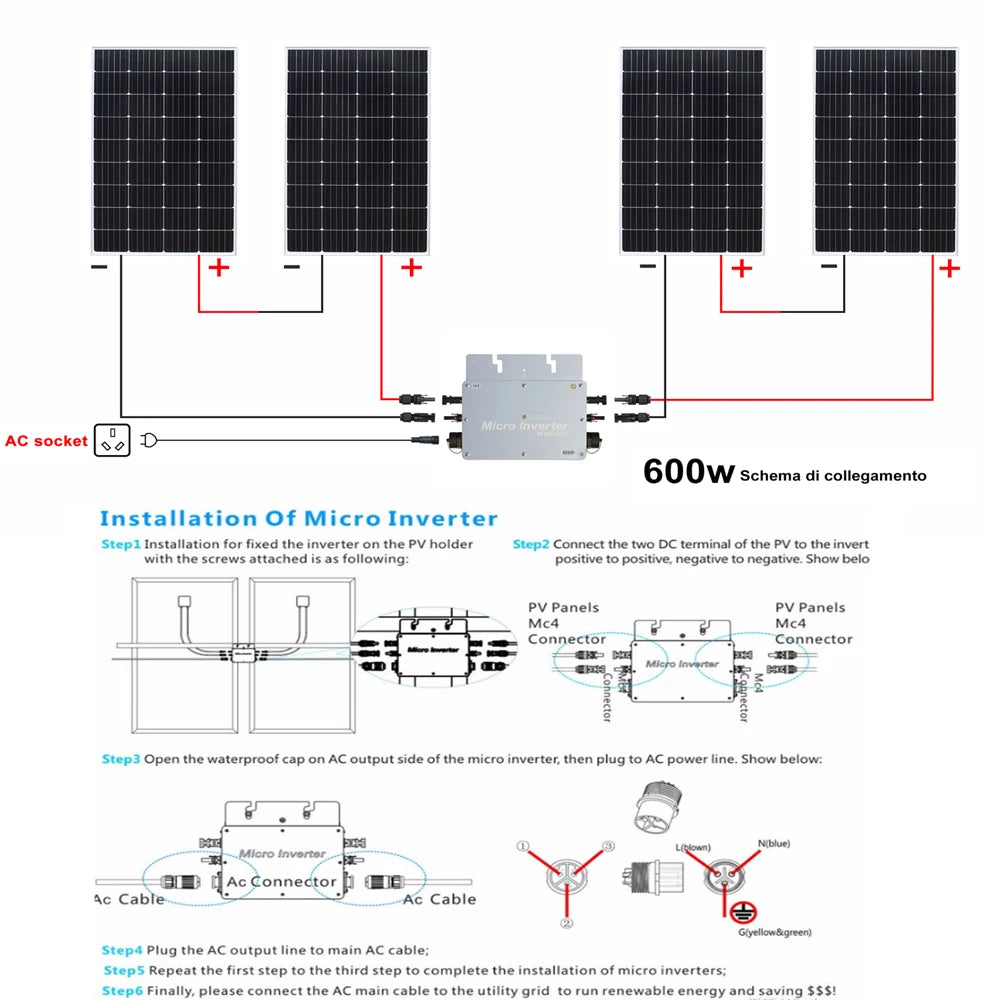

Installation
Step 1- Attaching the micro inverters to the racking.
a.Mark the location of the micro inverter on the rack, with respect to the PV module junction box or any other obstructions.
b. Mount one micro inverter at each of these locations using hardware recommended by your module racking vendor.
Step 2- Connect the micro inverter AC cable and connect to AC bus cable (L-brown,N-blue,G- green&yellow) one by one, please do not exceed the maximum current of AC bus cable.
Step 3- Connect micro inverter to the PV module, please do not exceed PV panel(s) VOC over
inverter max. input voltage.
Step 4- Install the AC branch circuit junction box, wire the conductors of the AC bus cable. Connect the AC branch circuit junction box to the point of utility-grid Interconnection.
Step 5- Double check all micro inverter, connectors and cables are correctly and well connected.
Step 6- Turn on the AC circuit breaker on each AC branch circuit of micro inverter.
Step 7- Turn on the main AC circuit breaker of utility-grid. Your system will start producing power
after a 30 sec safety delay period.
Package of list of "Only 400W Solar"
2* 200w glass solar panel

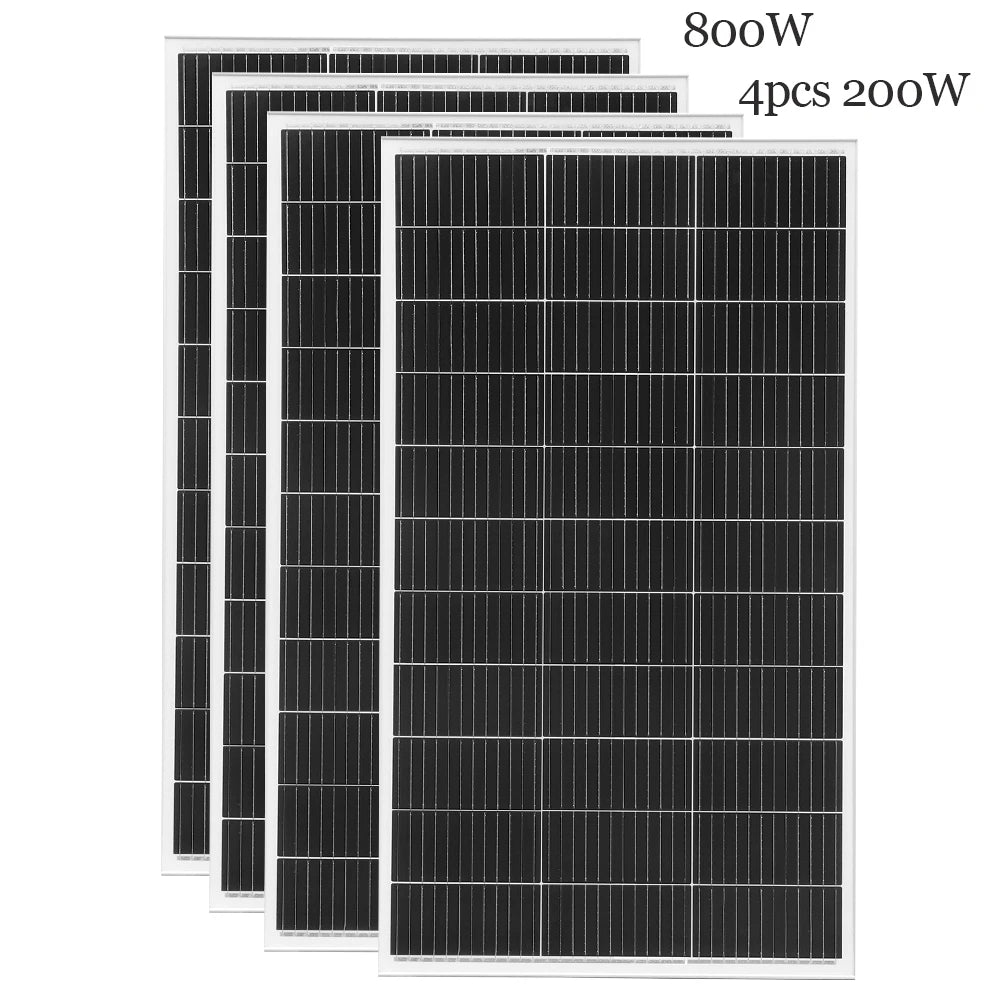

Package of list of "Only 800W Solar"
4* 200w glass solar panel
