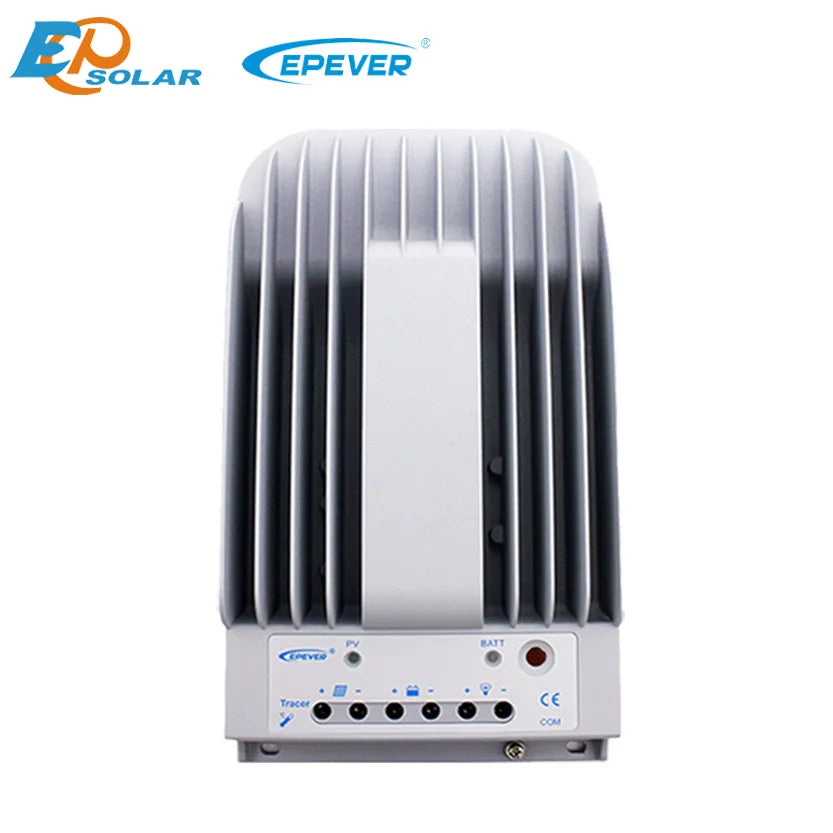

EPEVER Tracer4215BN 40amp solar intelligent Controller Solar Charger 40A 12v 24v controller 40a Solar MPPT Tracer4215BN
Regular price $364.03SPECIFICATIONS
Application: Solar System Controller
Brand Name: EPever
Hign-concerned Chemical: None
Maximum Current: 40a
Model Number: Tracer-4215BN
Origin: Mainland China
is_customized: Yes
EPEVER 40a solar intelligent controller solar 12v 24v controller 40a mppt Tracer4210BN

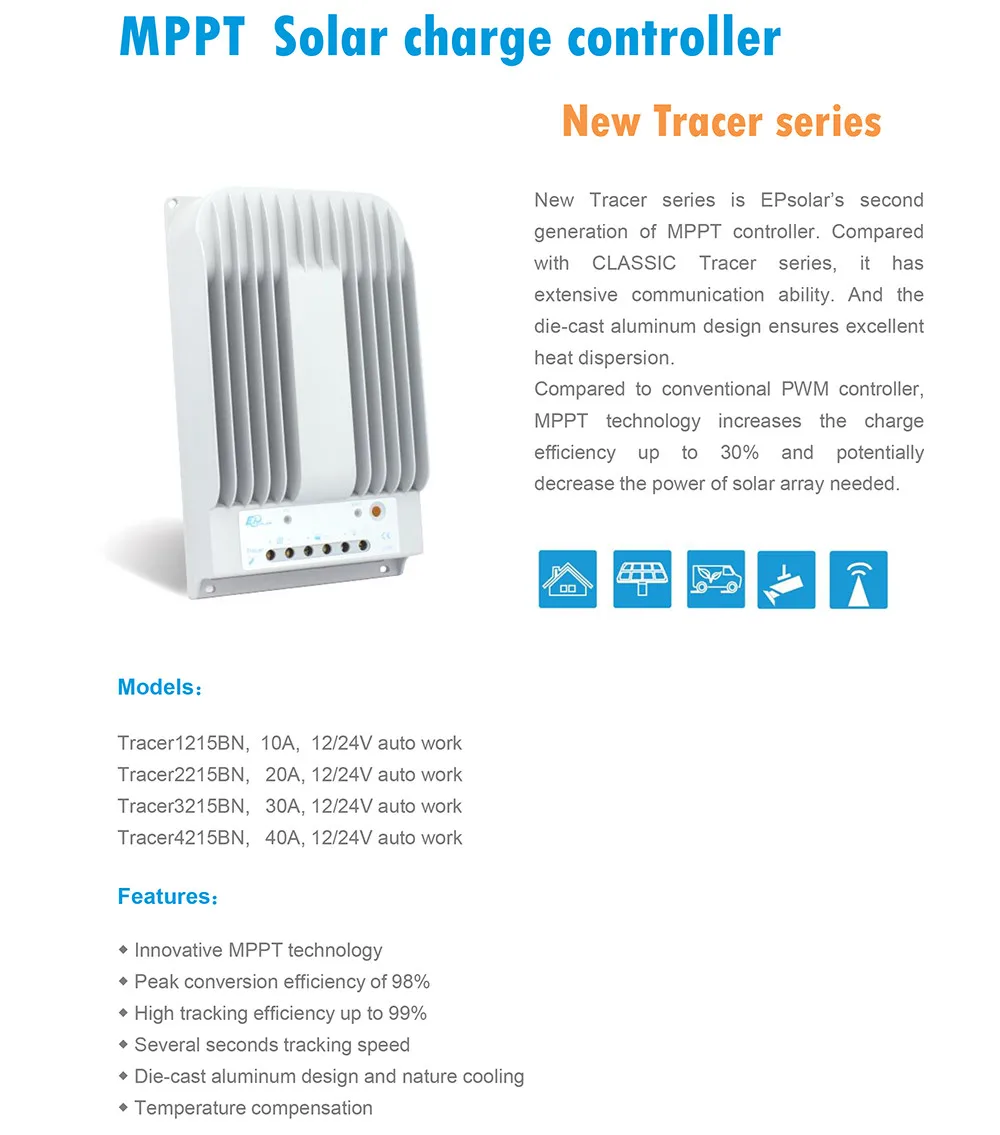

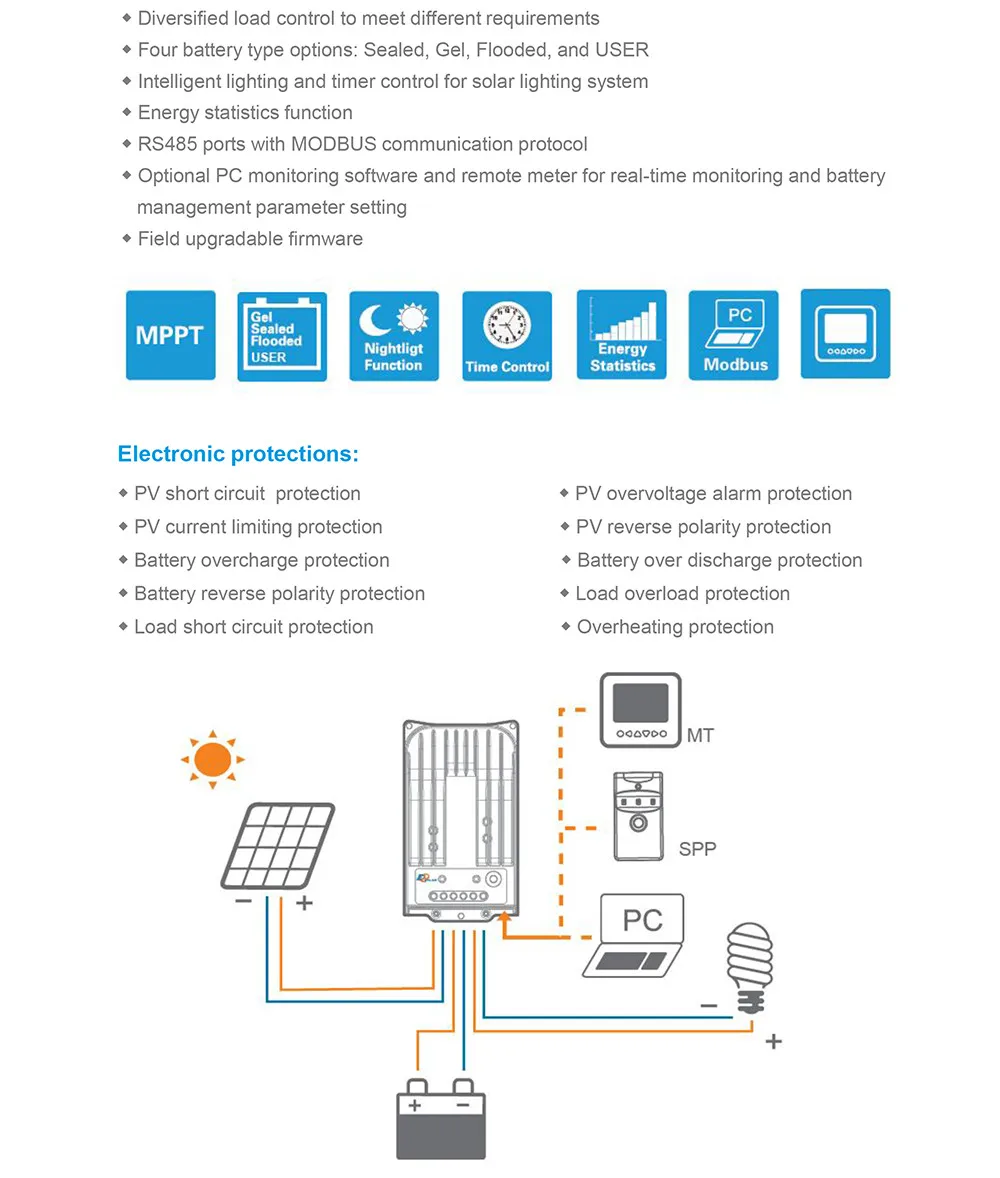

The New Tracer-4215BN controller features are listed below:
•12V/24V automatic identify or user-defined working voltage.

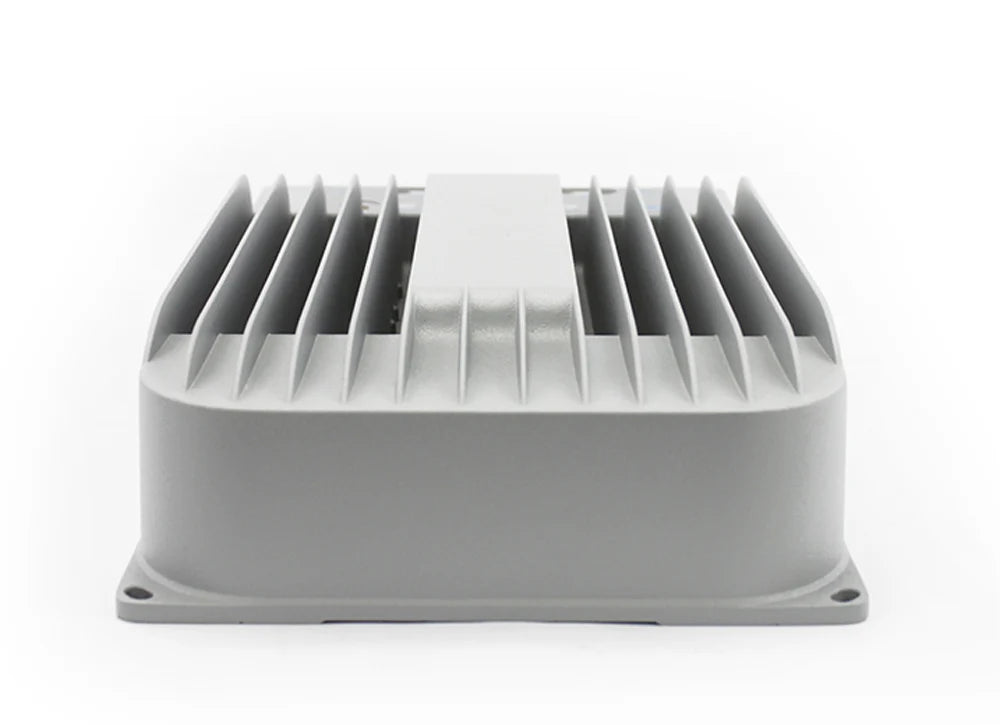

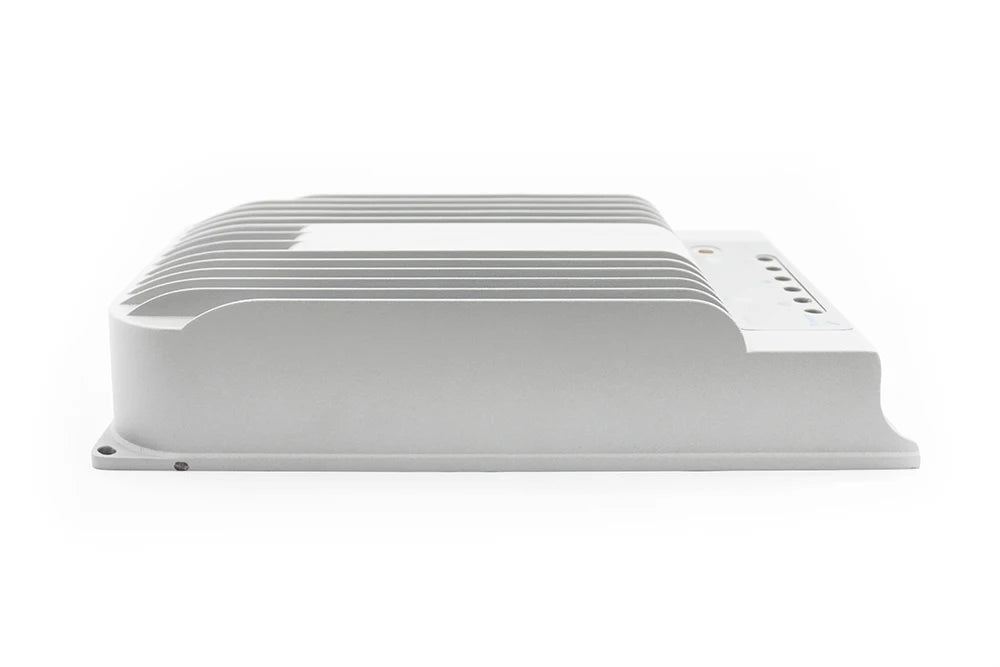

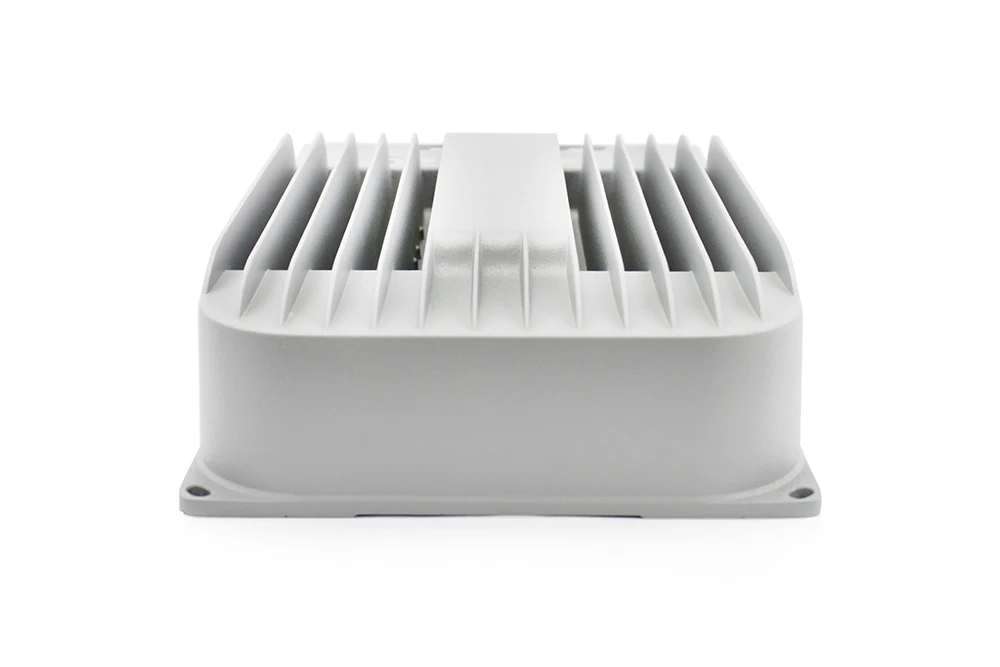

•Excellent heat dissipation. Using the integration of cast aluminum radiator shell, the controller can be natural cooling.
•Advanced maximum power point tracking technology to optimize using the solar system. Peak conversion efficiency is as high as 98%.
•Lock the MP point fast and the controller provides the industry’s highest tracking efficiency of 99%.
•Widely used, automatic recognize day or night.
•Several load methods are supported to convenient for different demand.
•Support 4 charging options: Sealed, Gel, Flooded and User-defined.

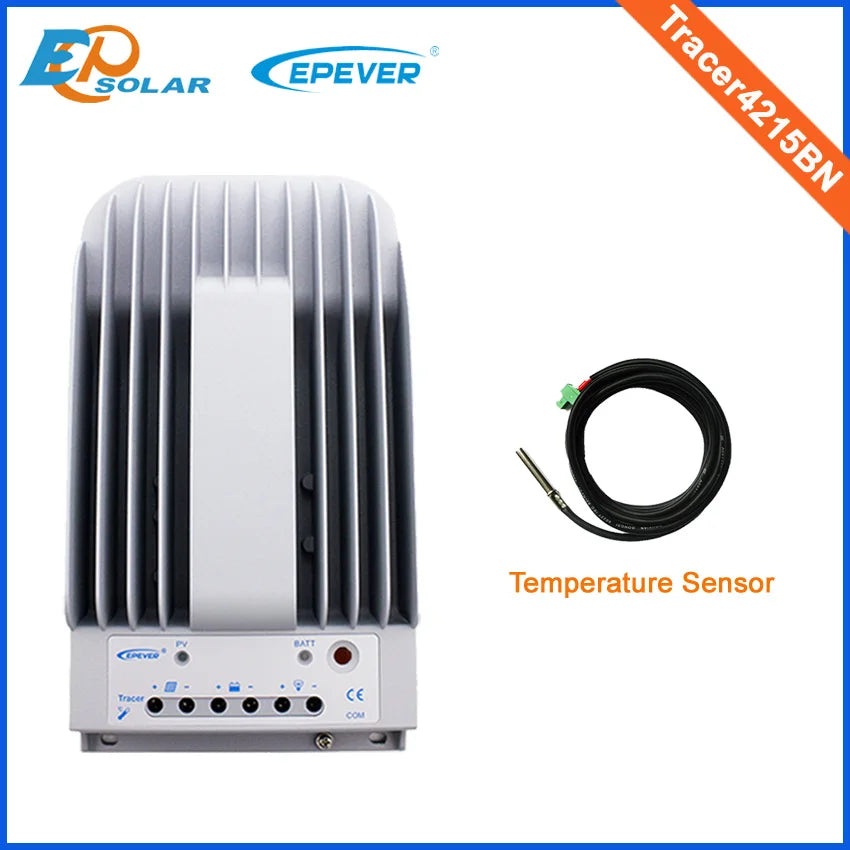

•Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.
•Protection: over temperature, over charging, PV and load short, PV (battery) revered, over current protection.
•Actual power convenient and record function makes convenience to check the datum every day, every month and every year.
•RS-485 ports via the open standard Modbus protocol are supported to meet different occasion of demand.

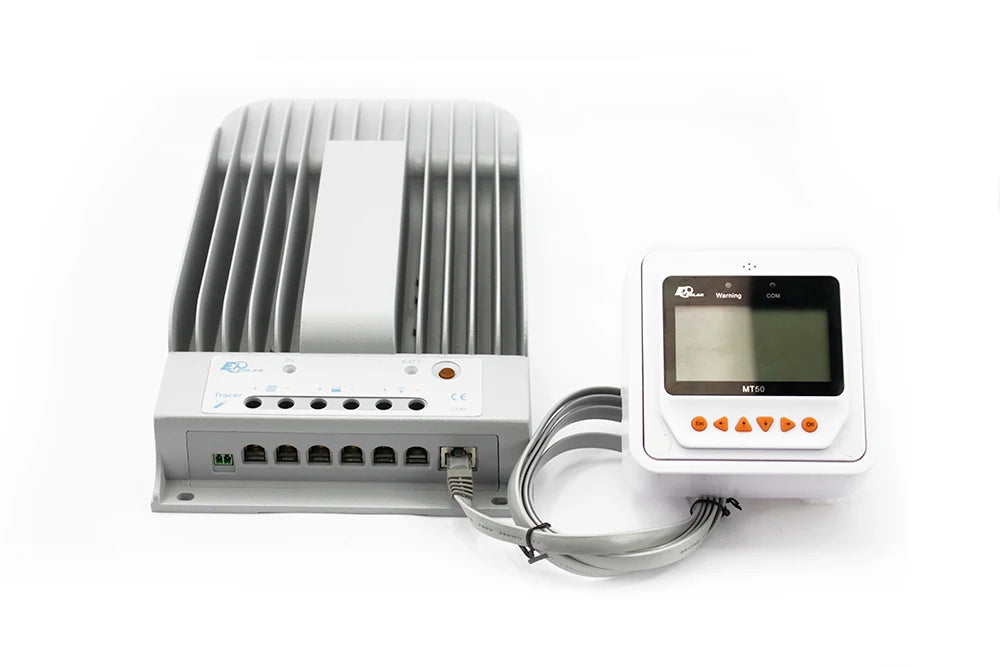

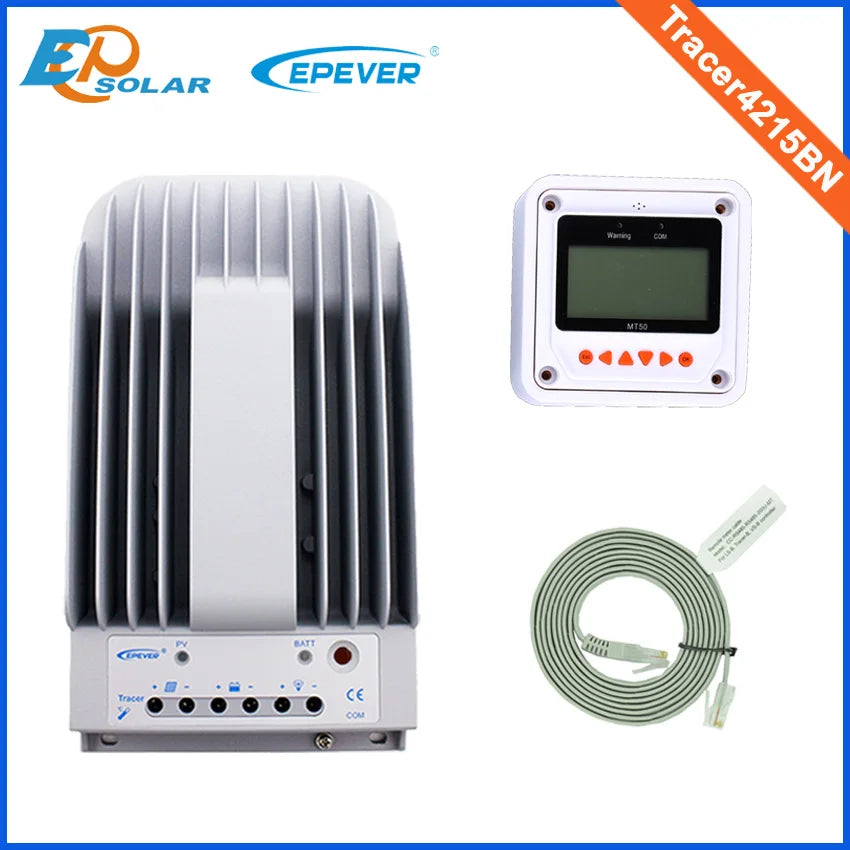

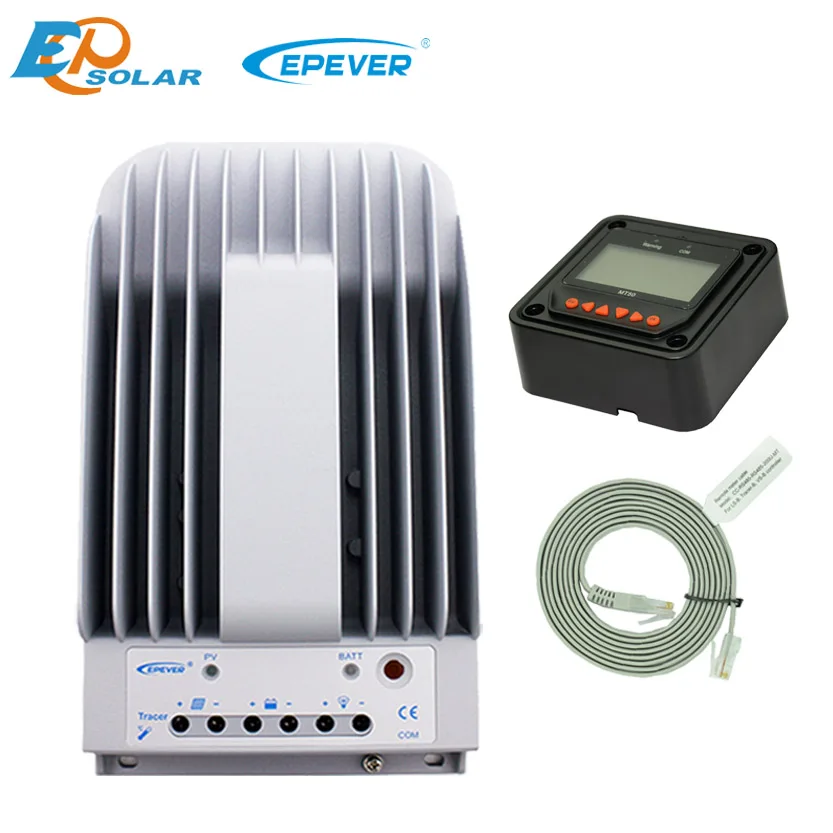

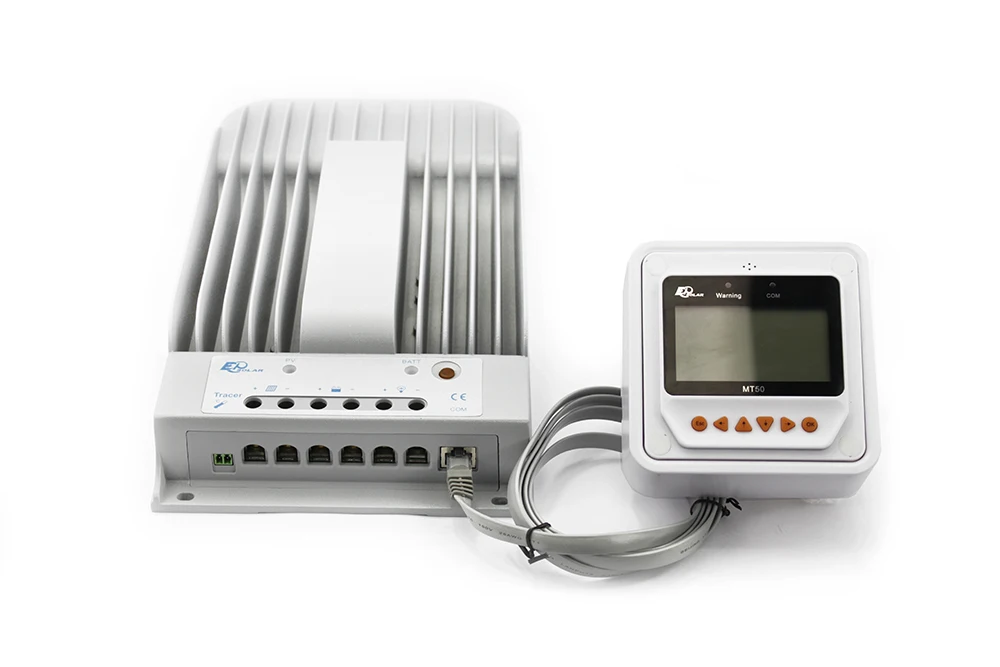

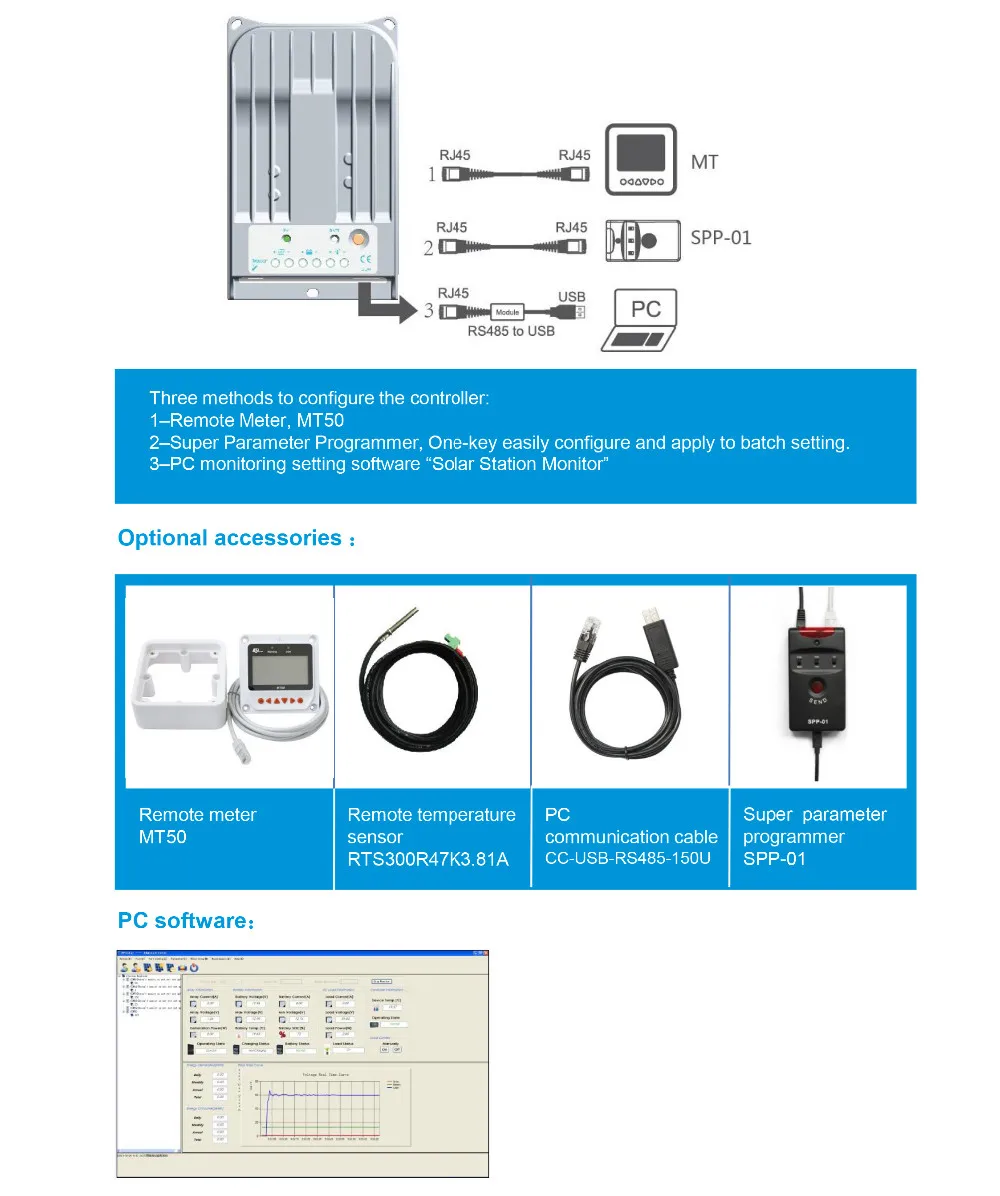

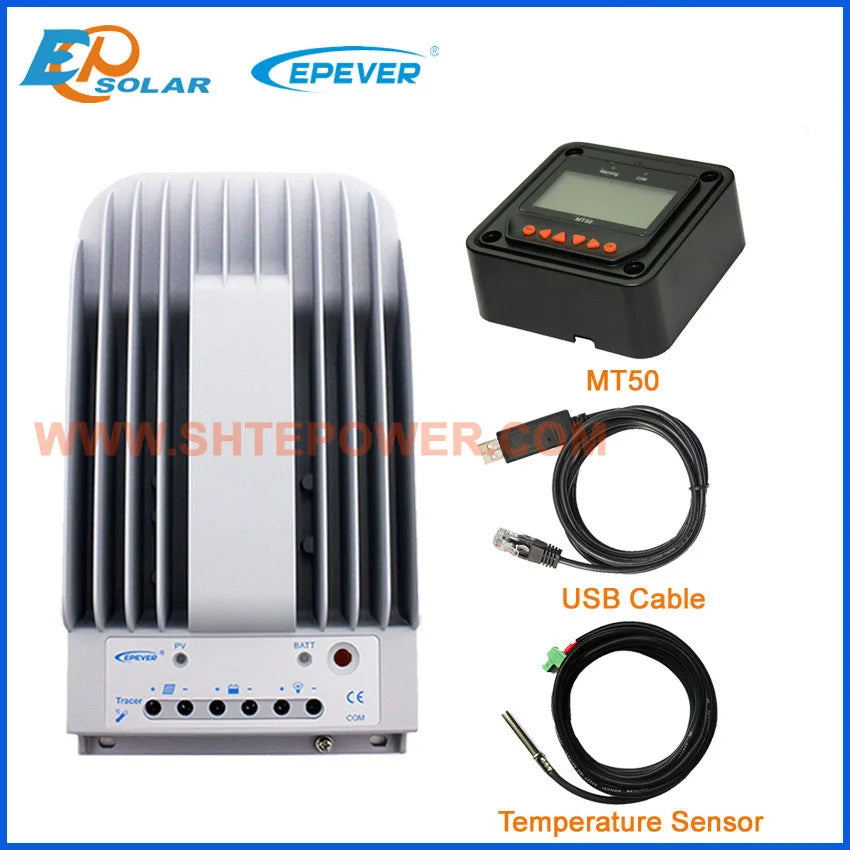

•With supporting PC monitoring software and remote meter MT50, it is convenient to check the real-time data of controllers and set the parameters.
•Support firmware update.

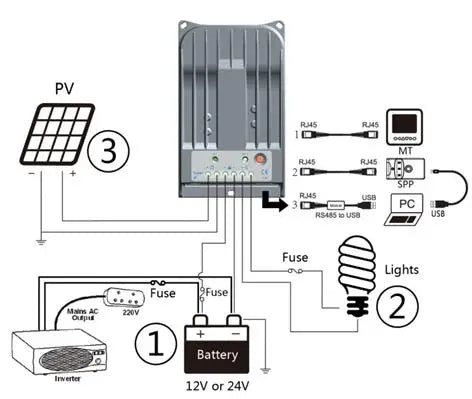

The Tracer-BN series controller is for off-grid solar system and control the charging and discharging of the battery. The controller features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging.

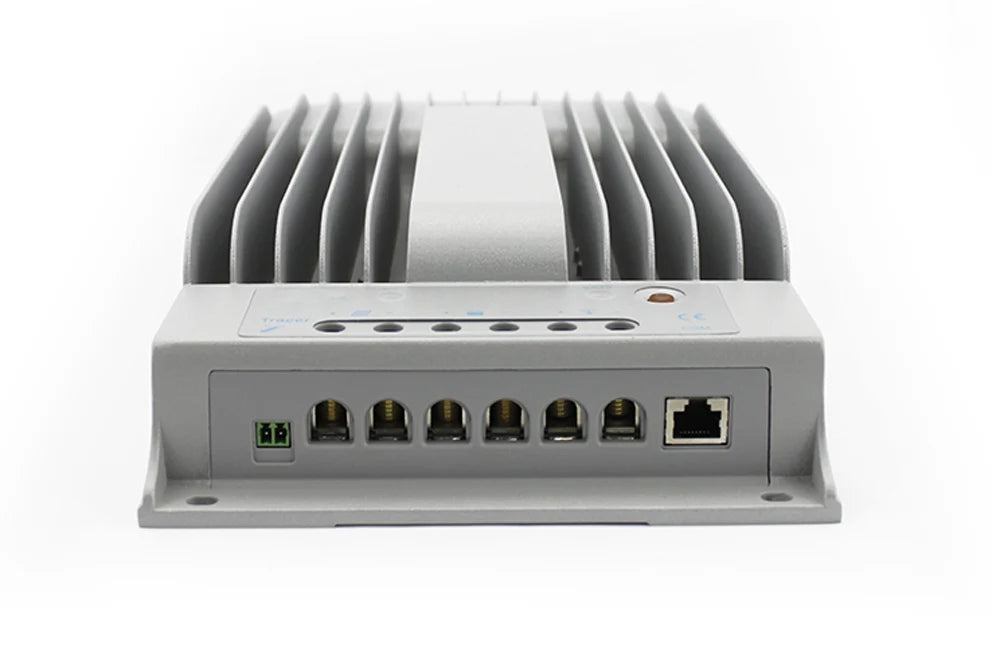

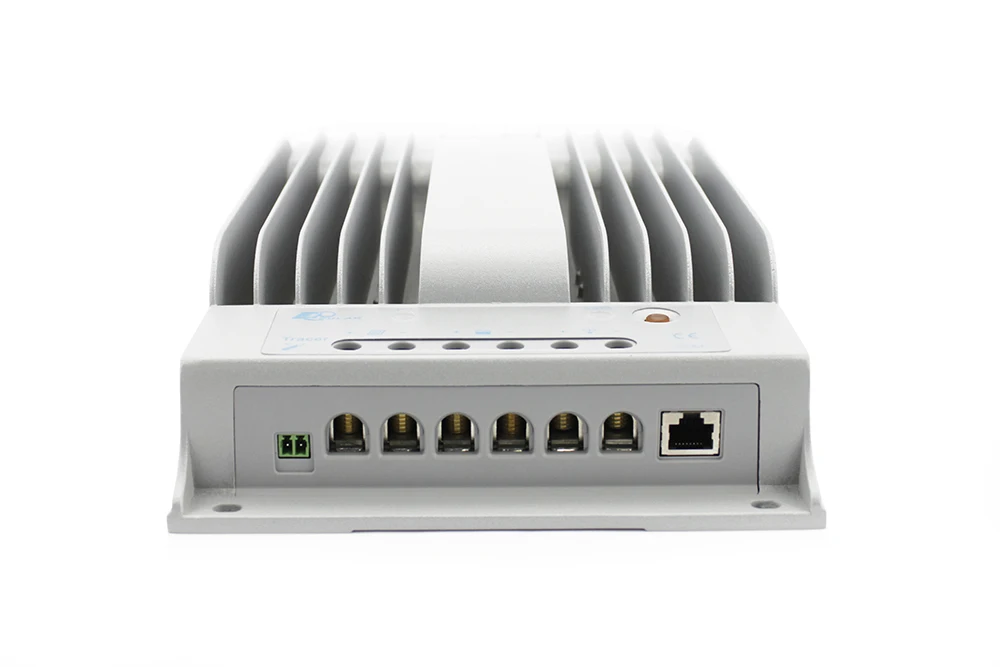

The battery charging process has been optimized for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults. In addition, the Tracer-BN series controller has a RJ45 interface to allow communication with other accessory.

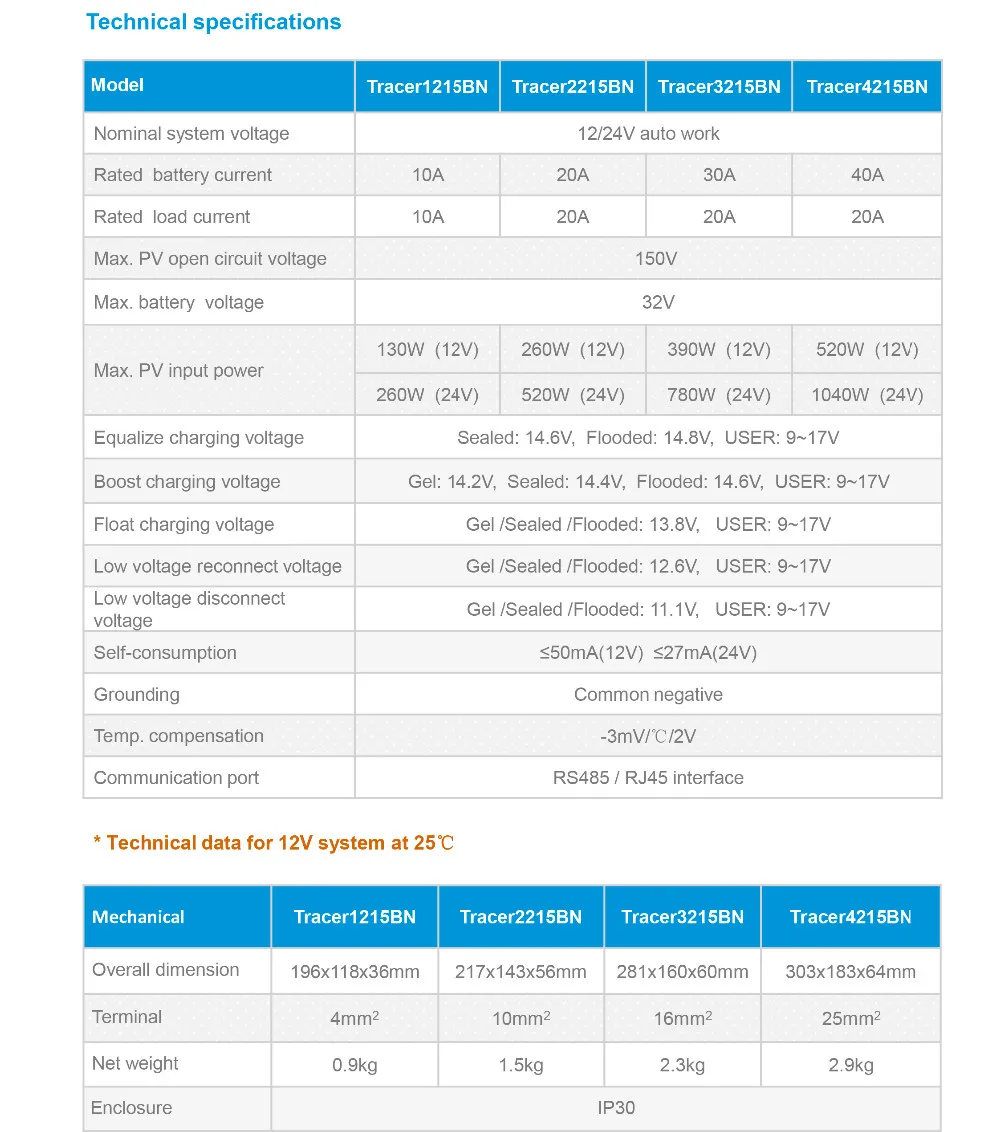

Technical Specifications
• Electrical Parameters
Description |
Parameter |
Nominal system voltage |
12VDC / 24VDC Auto work |
Rated charge current |
Tracer4215BN 40A |
Rated discharge current |
Tracer4215BN 20A |
Maximum battery voltage |
32V |
Max. solar input voltage |
150VDC |
Max. PV input power |
Tracer4215BN 520W(12V) 1040W(24V) |
Self-consumption* |
≤50mA(12V) ≤27mA(24V) |
Charge circuit voltage drop |
≤0.26V |
Discharge circuit voltage drop |
≤0.15V |
Temperature compensate coefficient |
-3mV/ºC/2V(default) |
Communication |
RS485(RJ45 interface) |

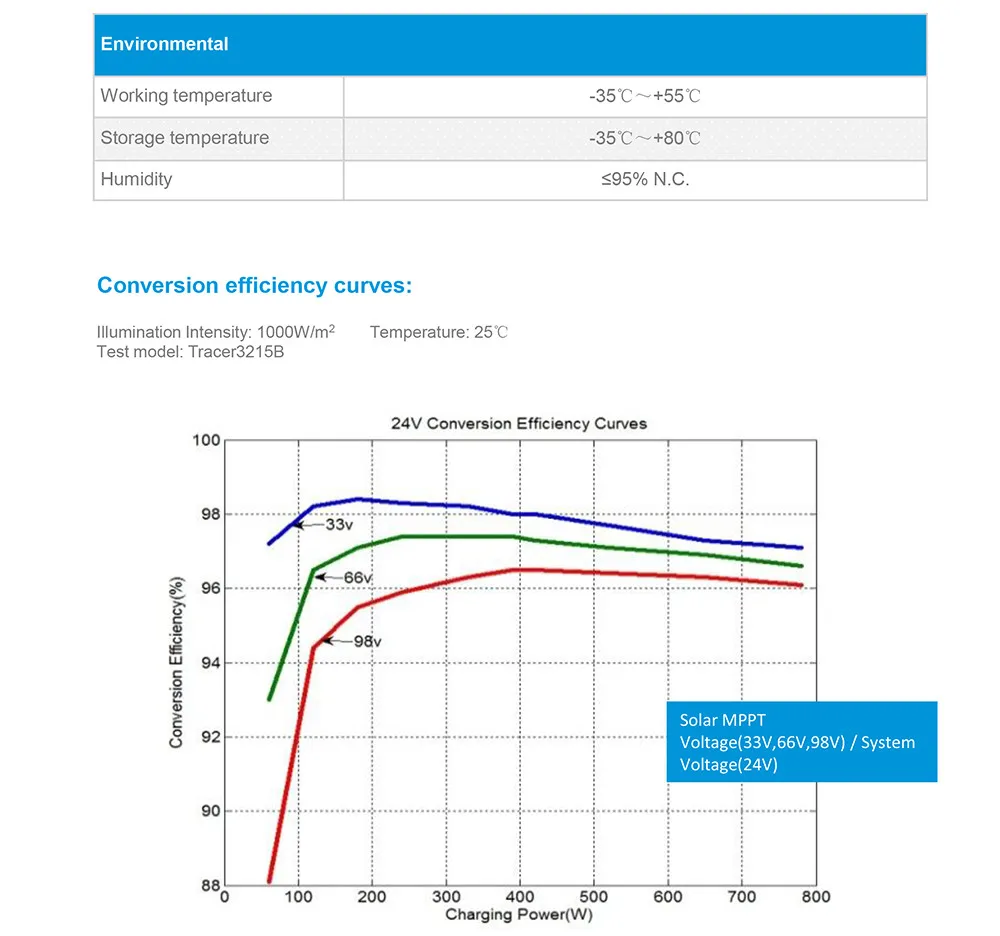

Environmental |
Parameter |
Ambient temperature range |
-35Cto +55C |
Storage temperature range |
-35C to +80C |
Humidity range |
≤95%(NC) |
Enclosure |
IP30 |
Altitude |
≤3000 m |
Mechanical |
Parameter |
Dimension |
242mm x 169mm x 91mm |
Mounting dimension |
Detail in dimensions drawing |
Mounting hole size |
Φ5 |
Power cable |
25mm2 |
Weight |
4.1kg |
