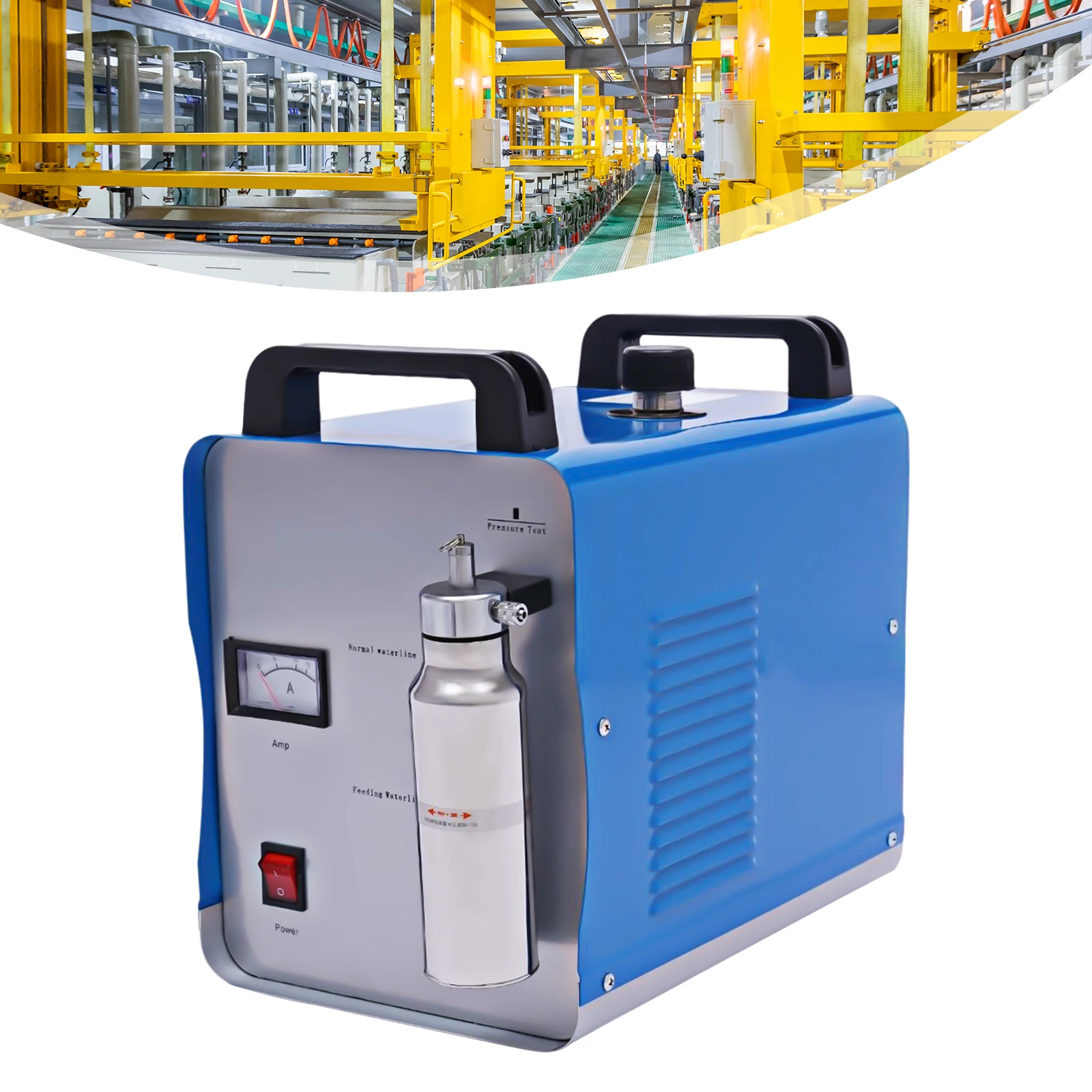

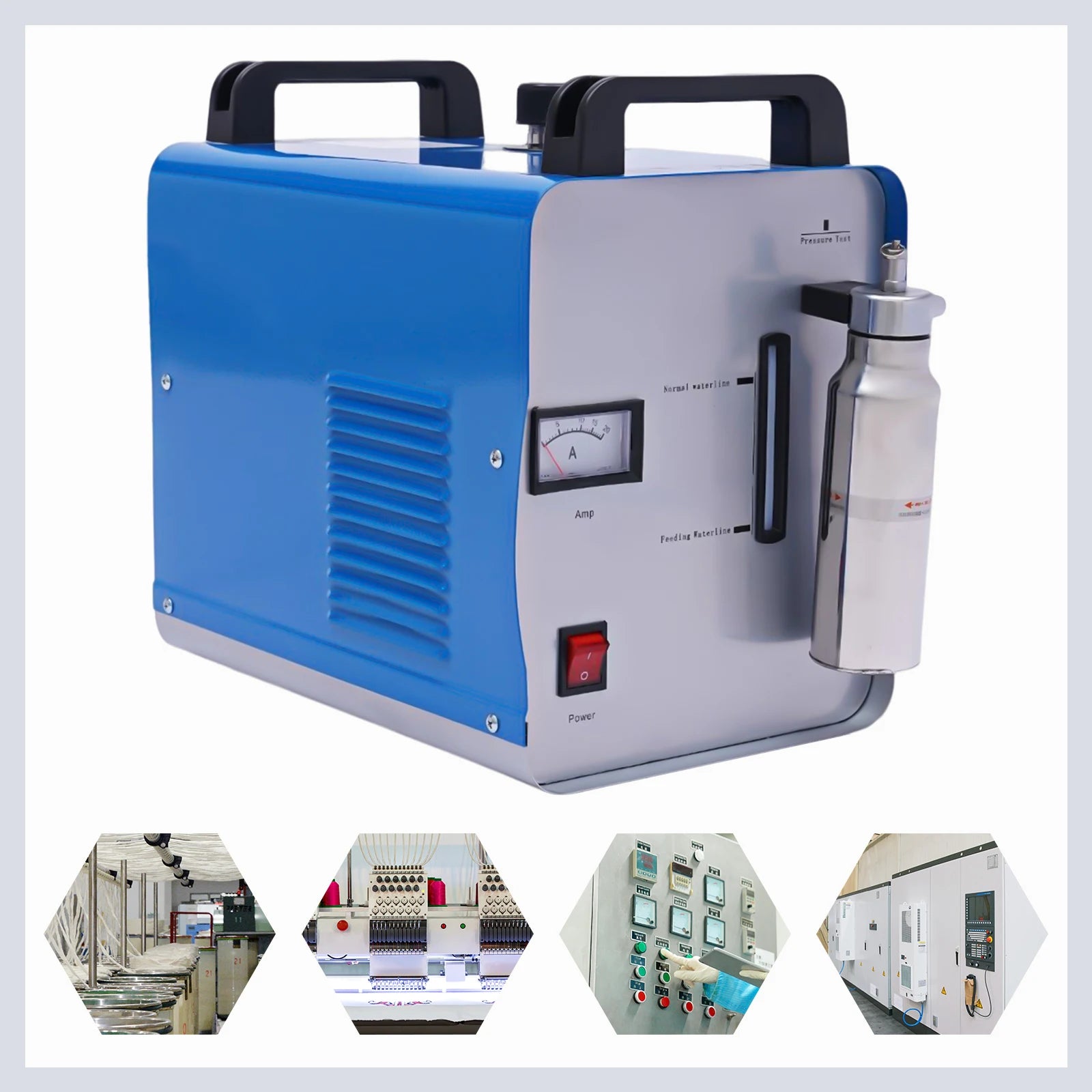

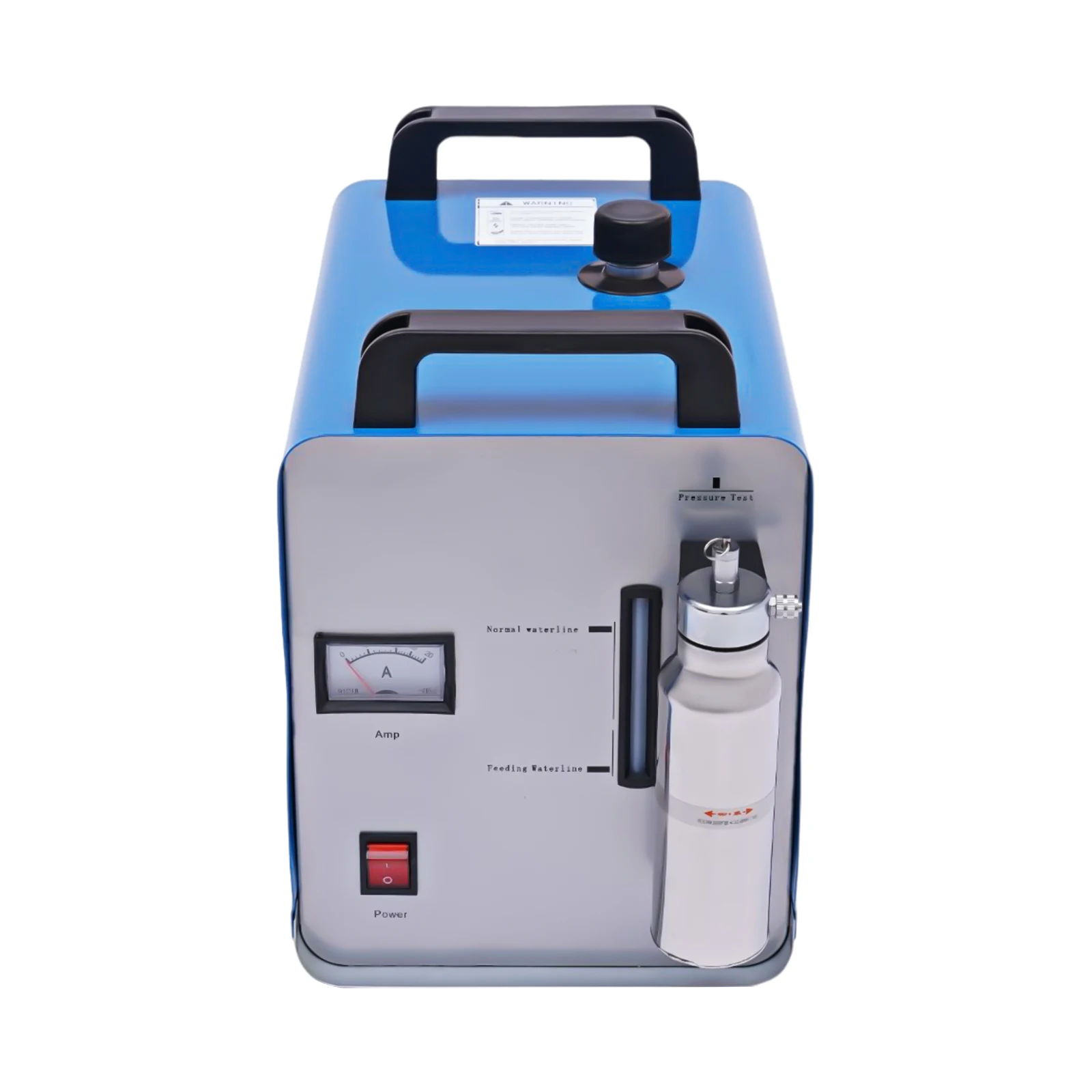

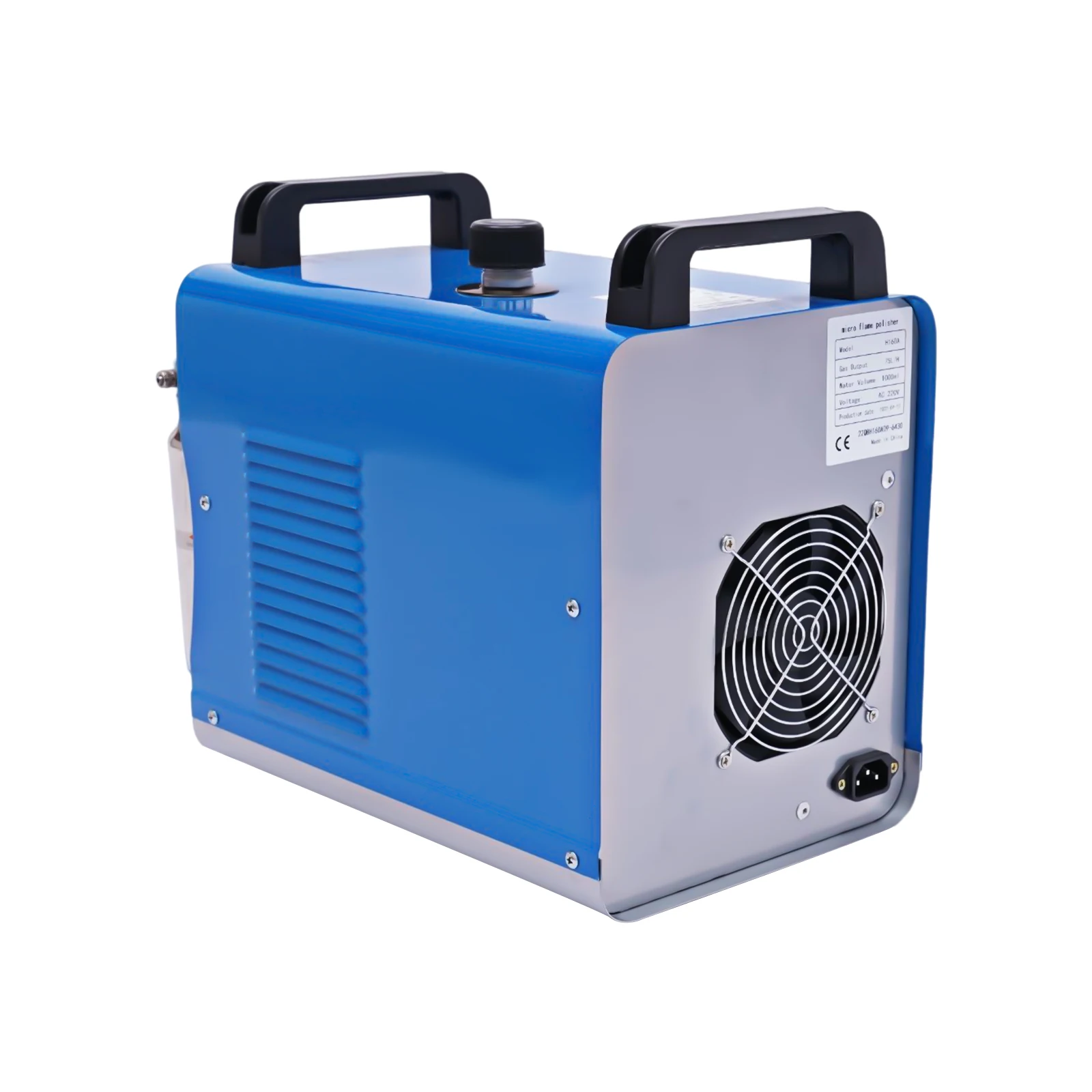

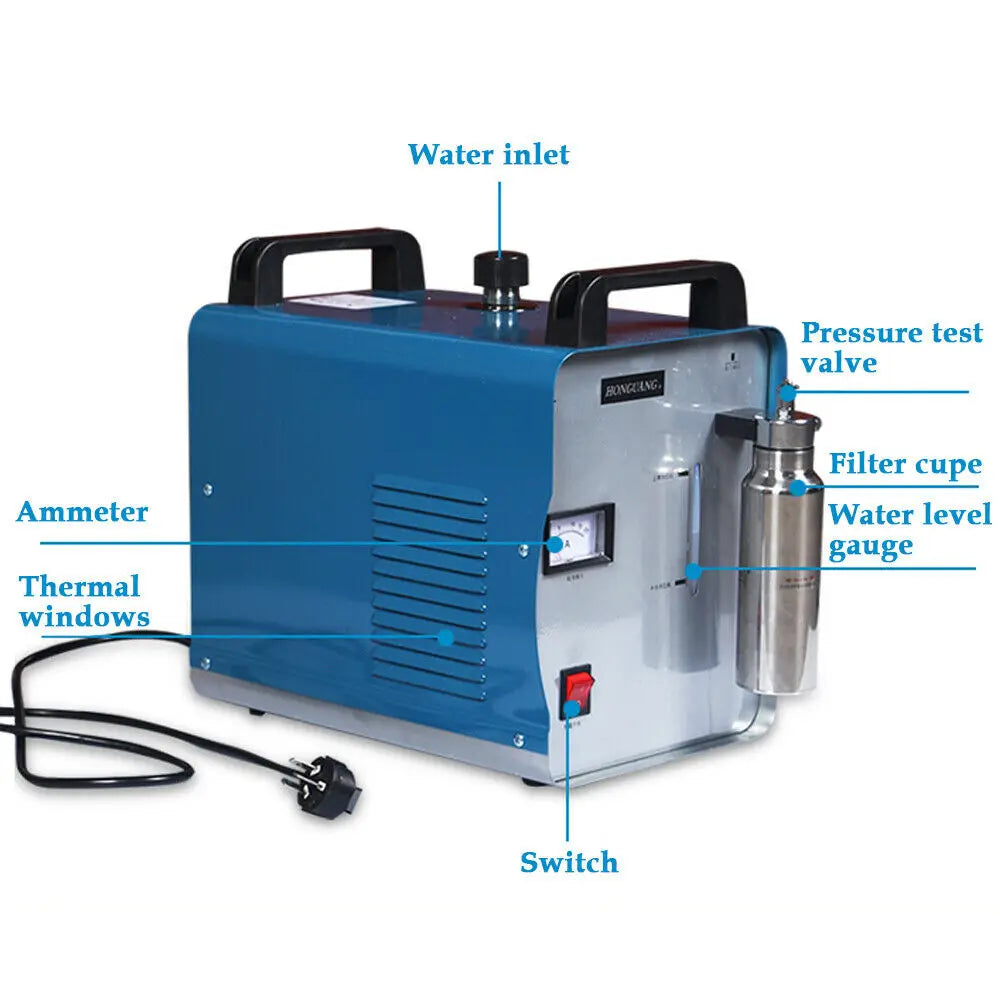

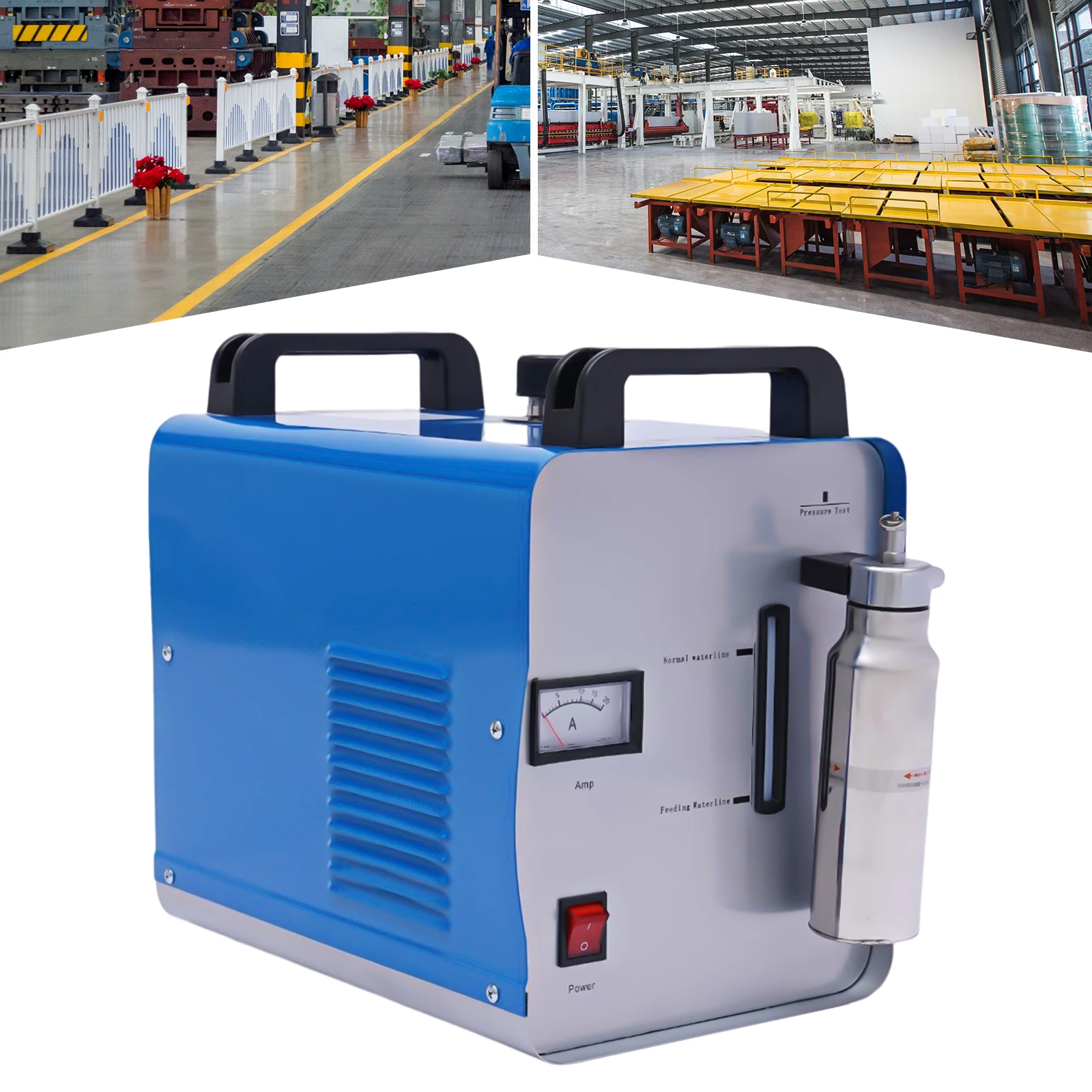

Product Description
Our flame polisher machine that harnesses the power of hydrogen and oxygen(decomposed from water) to generate a high-temperature flame is engineered to meet the demands of professional polishing applications, providing outstanding results across various industries. Whether you require precise edge polishing, surface finishing, or weld seam smoothing, this advanced tool offers the capabilities and reliability needed to elevate your polishing processes.
Key Features
Simple raw materials——Using water (distilled water and pure water) as fuel, easy to obtain and energy saving.
Safety guarantee——Low working voltage, designed to automatically cut off when exceeding the set voltage.
Exquisite craftsmanship——This product adopts a series parallel composite process for electrolysis.
Environmental protection and energy conservation——This design makes the machine safer, economical, environmentally friendly, and convenient to obtain fuel.
Specification——95L/H
Model: H180
Max. gas prduct:95L/H
Flame temperature:2800℃
Cell volume: 1800 ml
Electrolytic cells: 1
Feeding cell: 0
Working voltage: psi
Voltage: AC220V1.5A
Water consumes: 30 mL/H
Max.water adding: 1.0L
Solution density: 15%
Pressure range: 0. 13-0. 15Mpa
Weight: 9 Kg

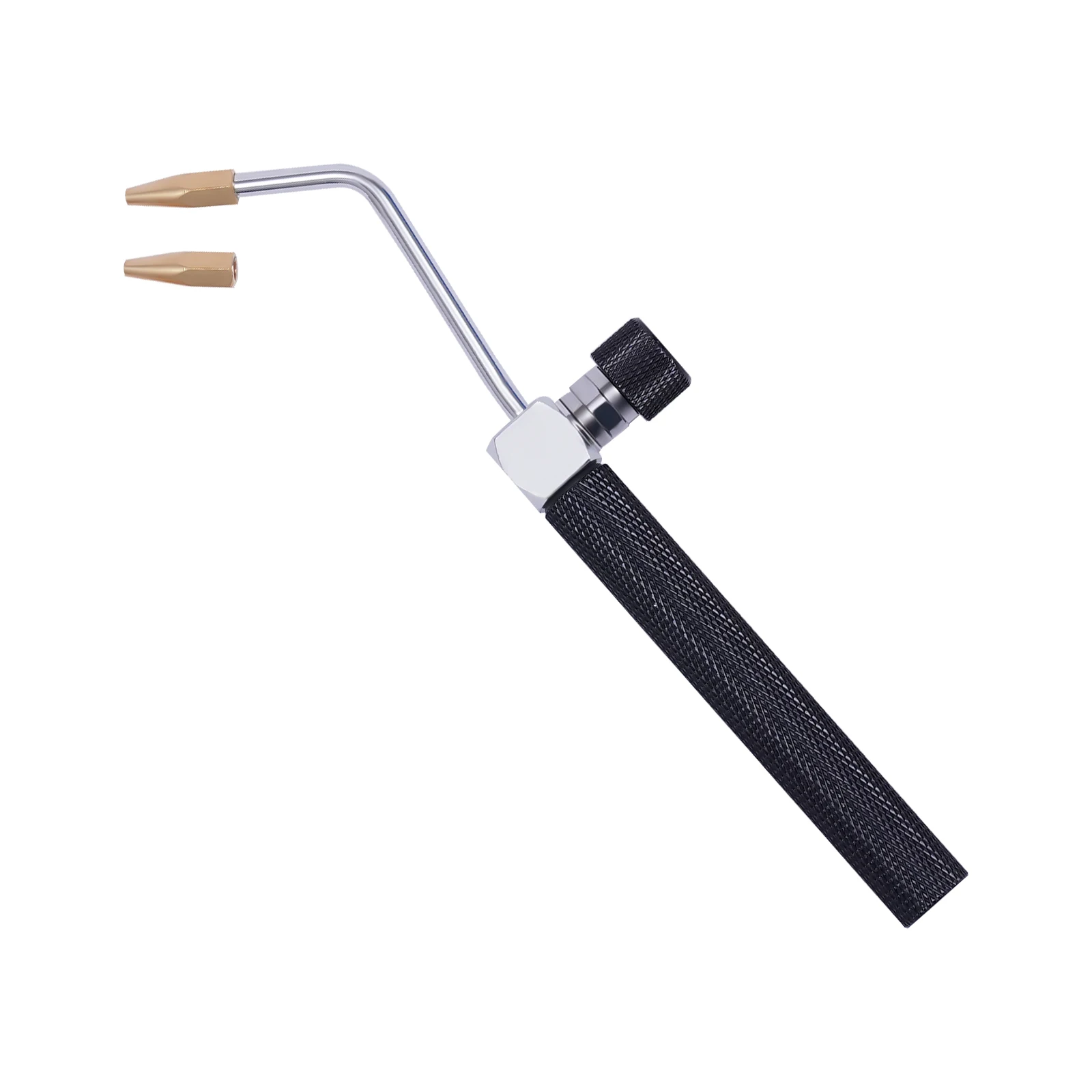

Flame torch supplied: 1
Torch tip supplied: 2

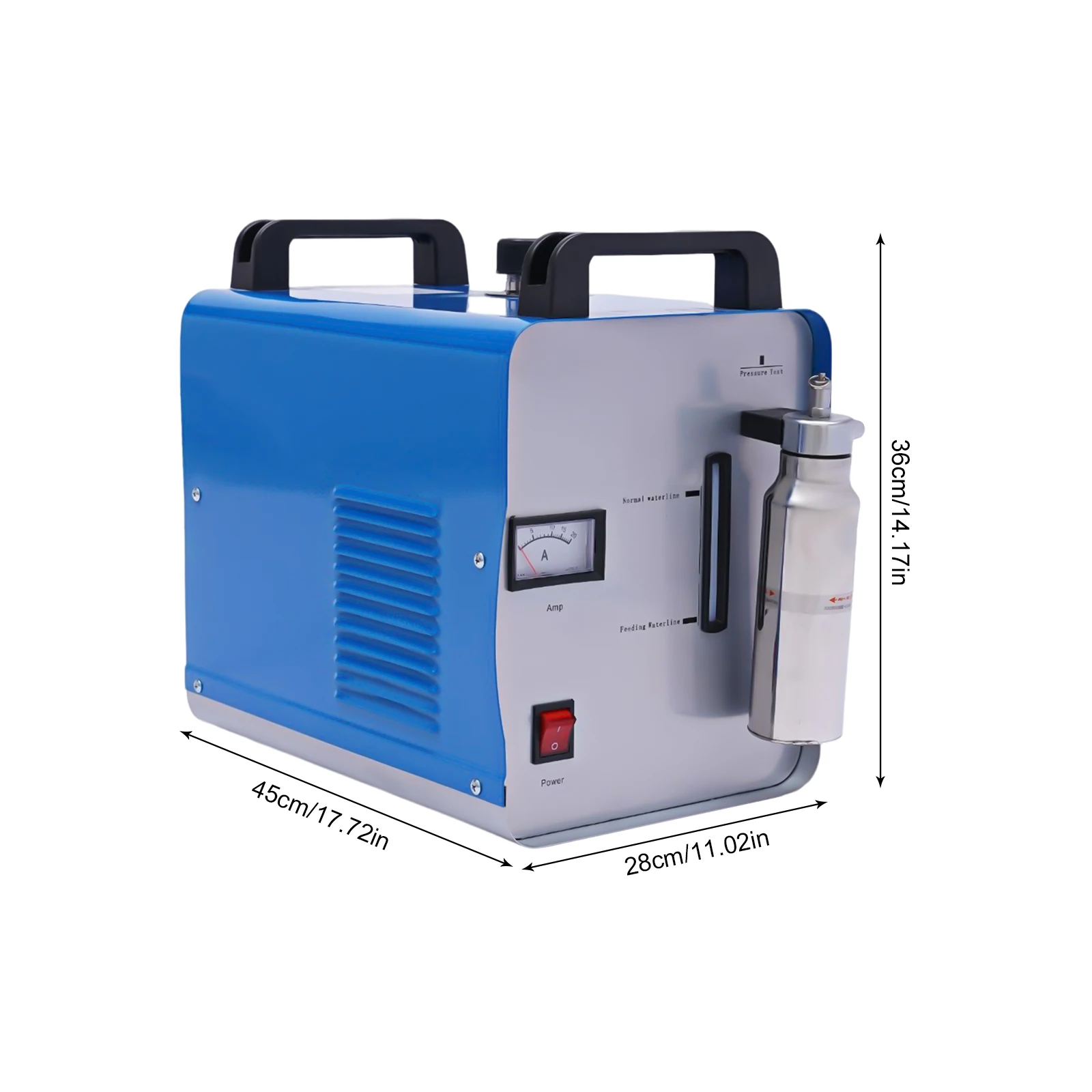

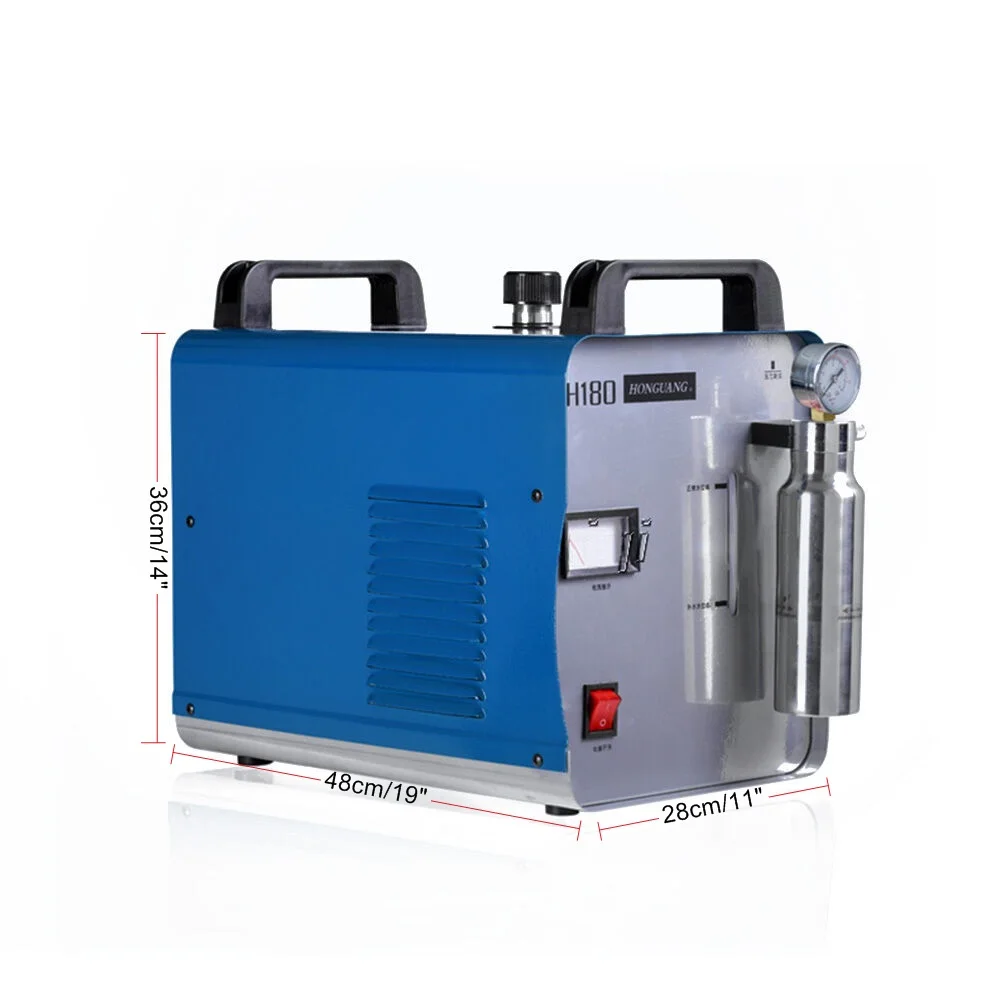

Size: 480*280*360mm
Grarantee period: 3 years
Service recomended: 12 months
Power: 400W
Package includes

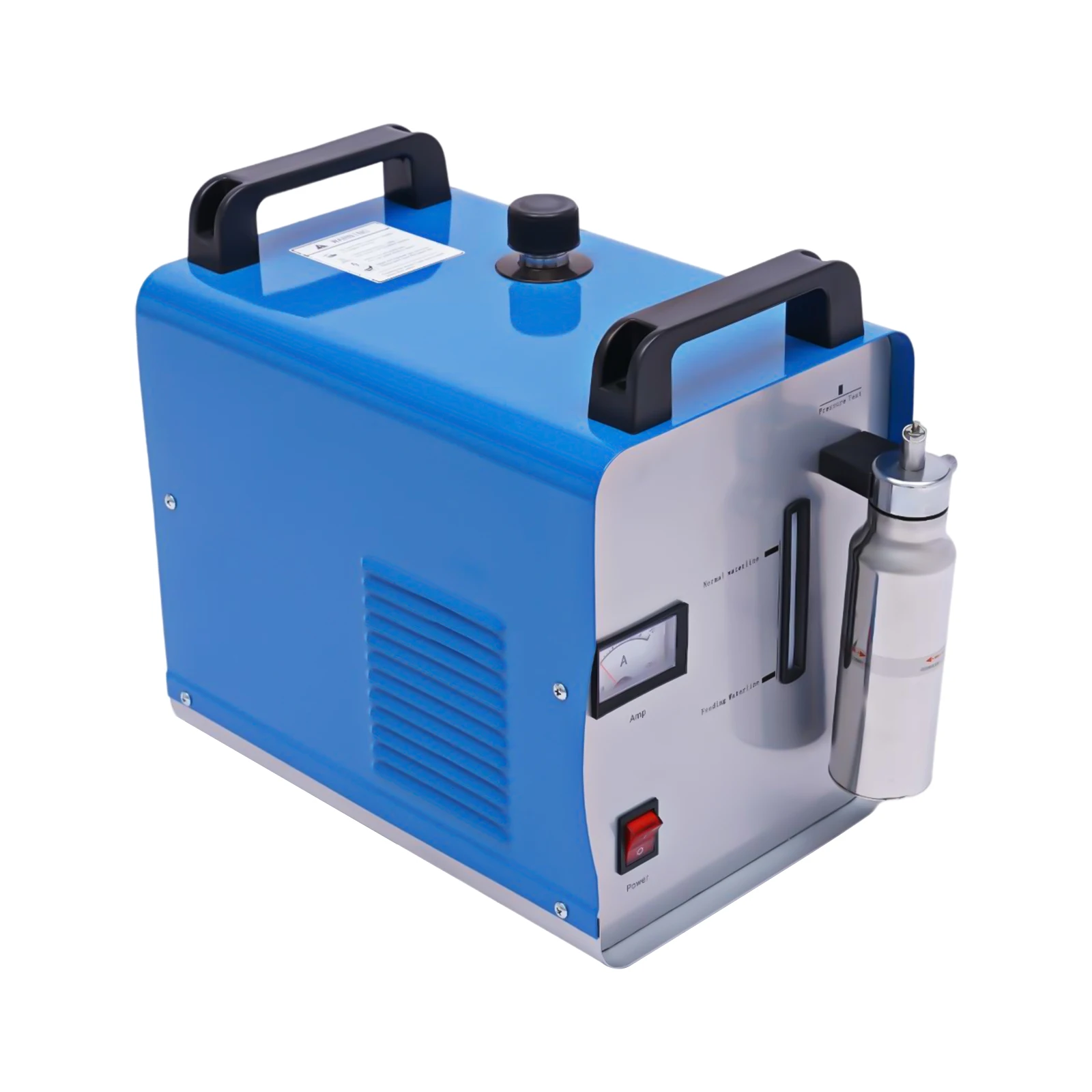

1 set of oxygen hydrogen Polishing Machine

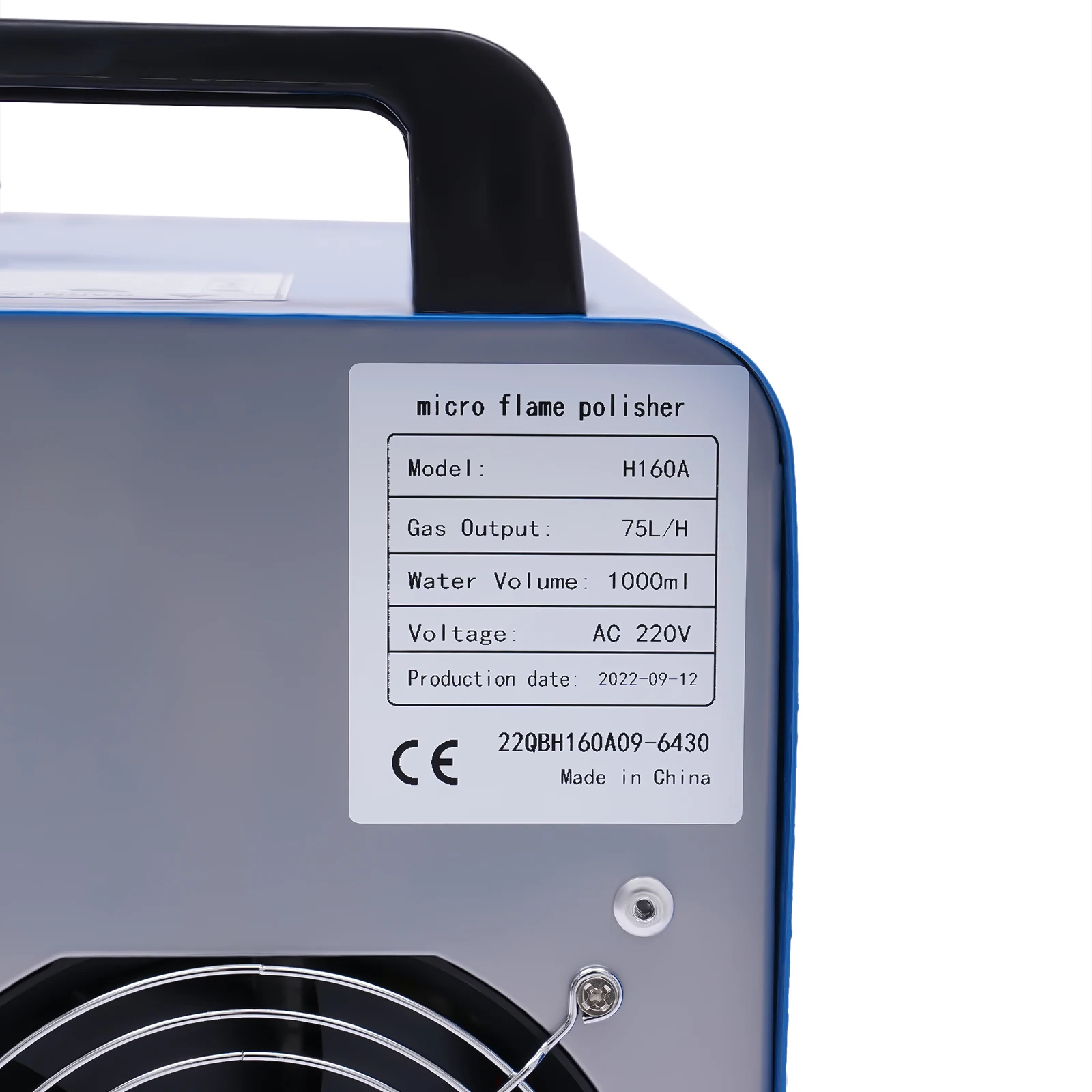

Specifications——75L / H
Input Voltage:AC110V
Maximum Output Gas:75L / H
Operation Gas Pressure:0.08-0.13Mpa
Ambient Temperature:-10°C ∼ 40°C
Flame Temperature:≥2800°C
Water Consumption (L / H):0.015 L / H
Flame Gun No.:Single
Capacity:1.6L

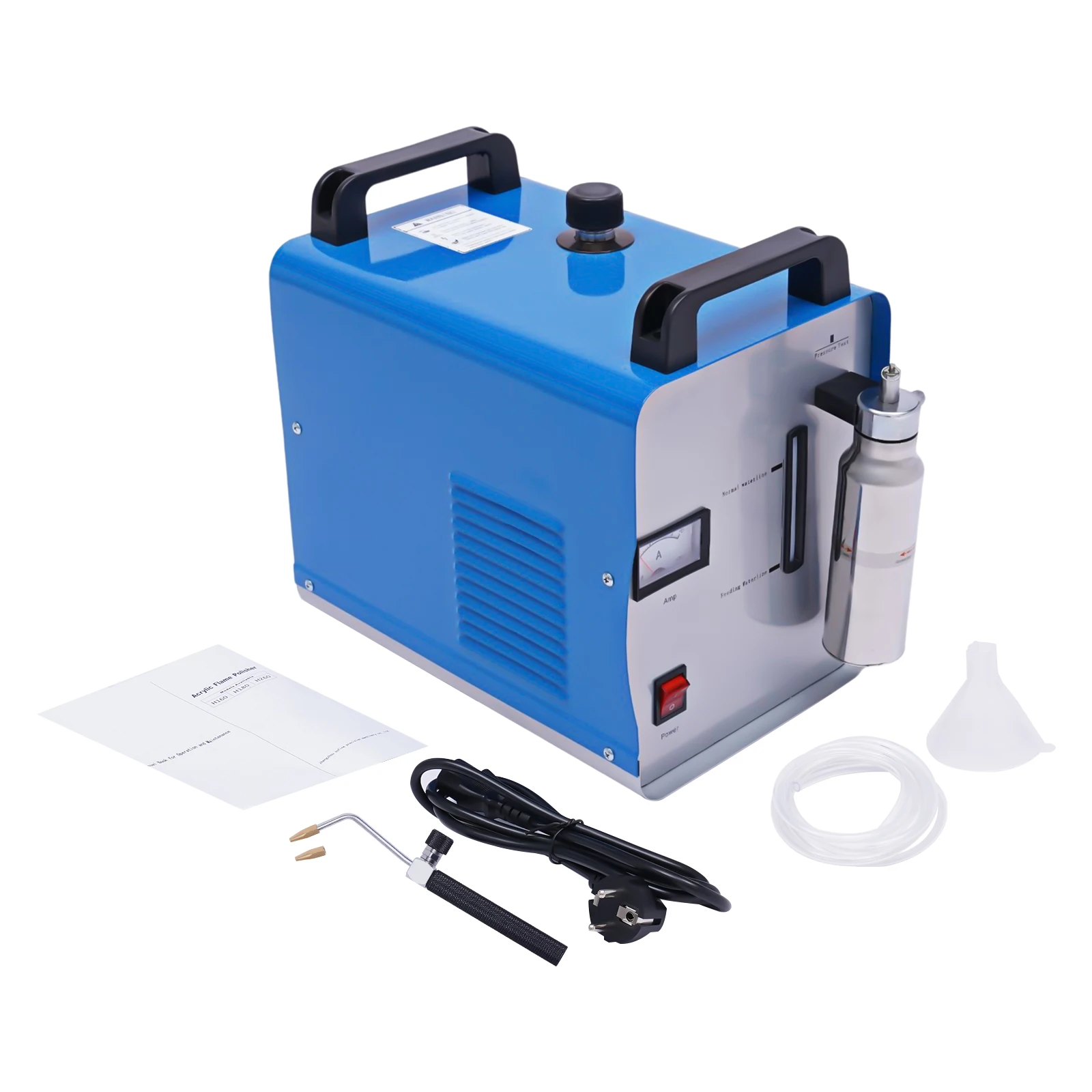

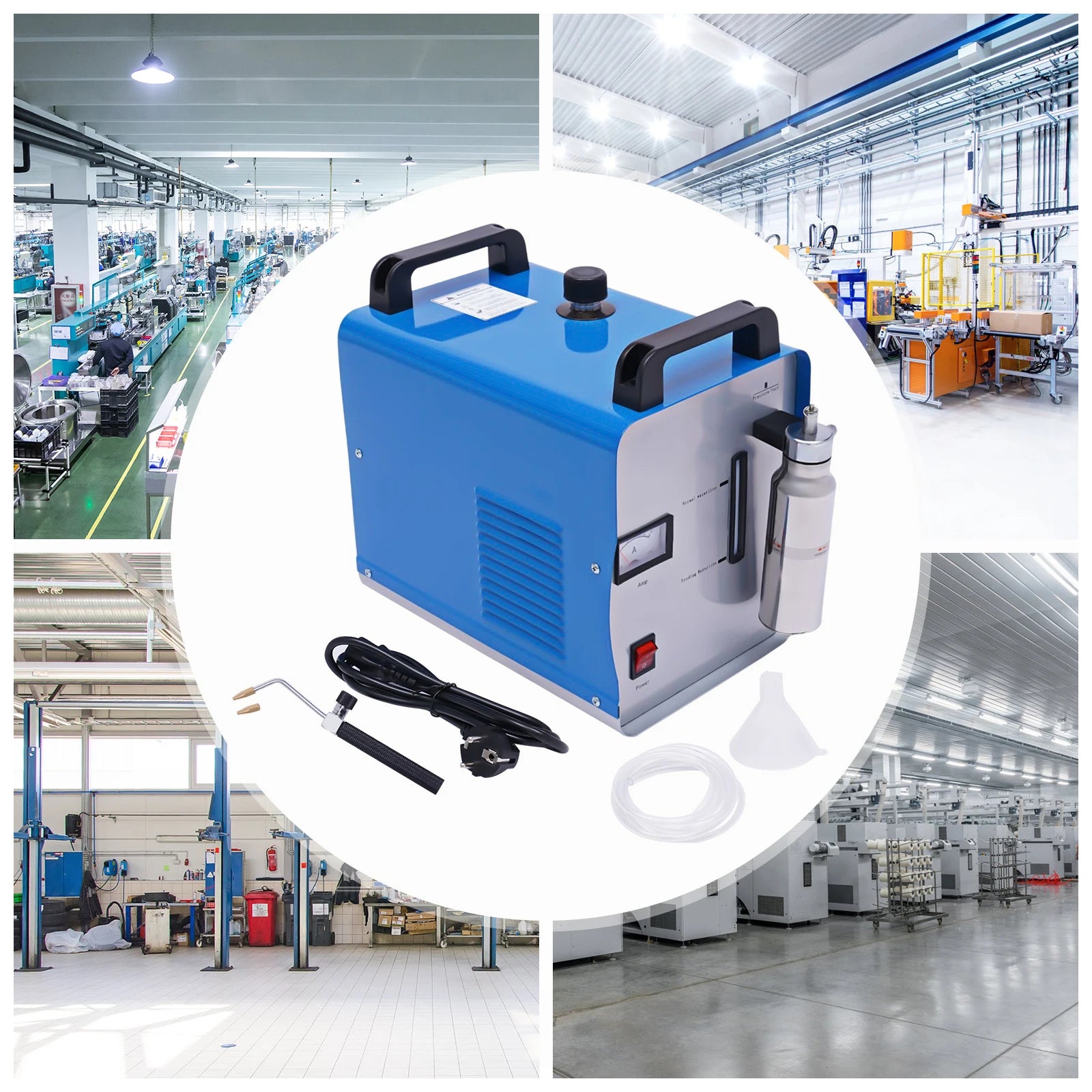

Package includes

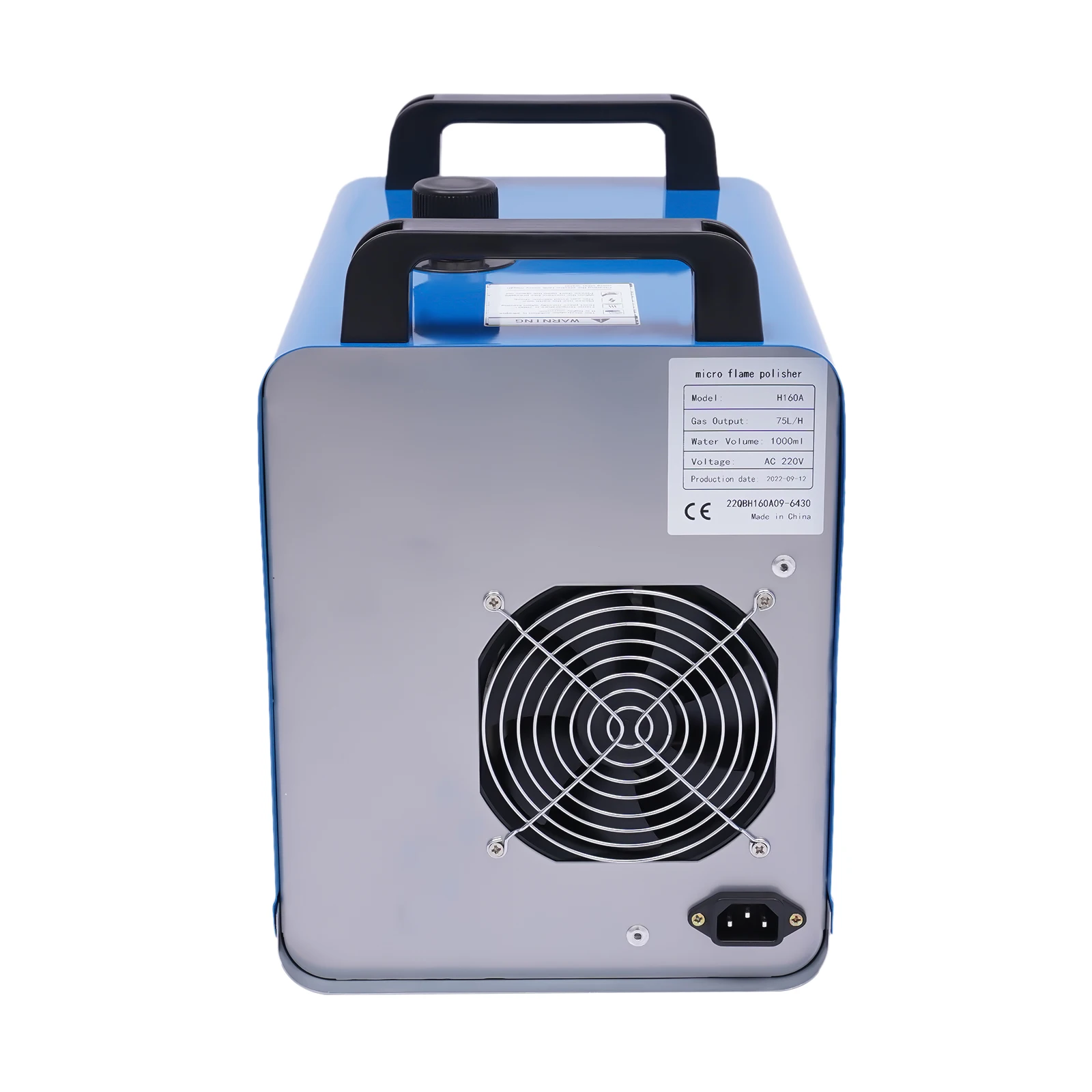

1 x Machine
1 x Flame Gun
1 x Plastic funnel

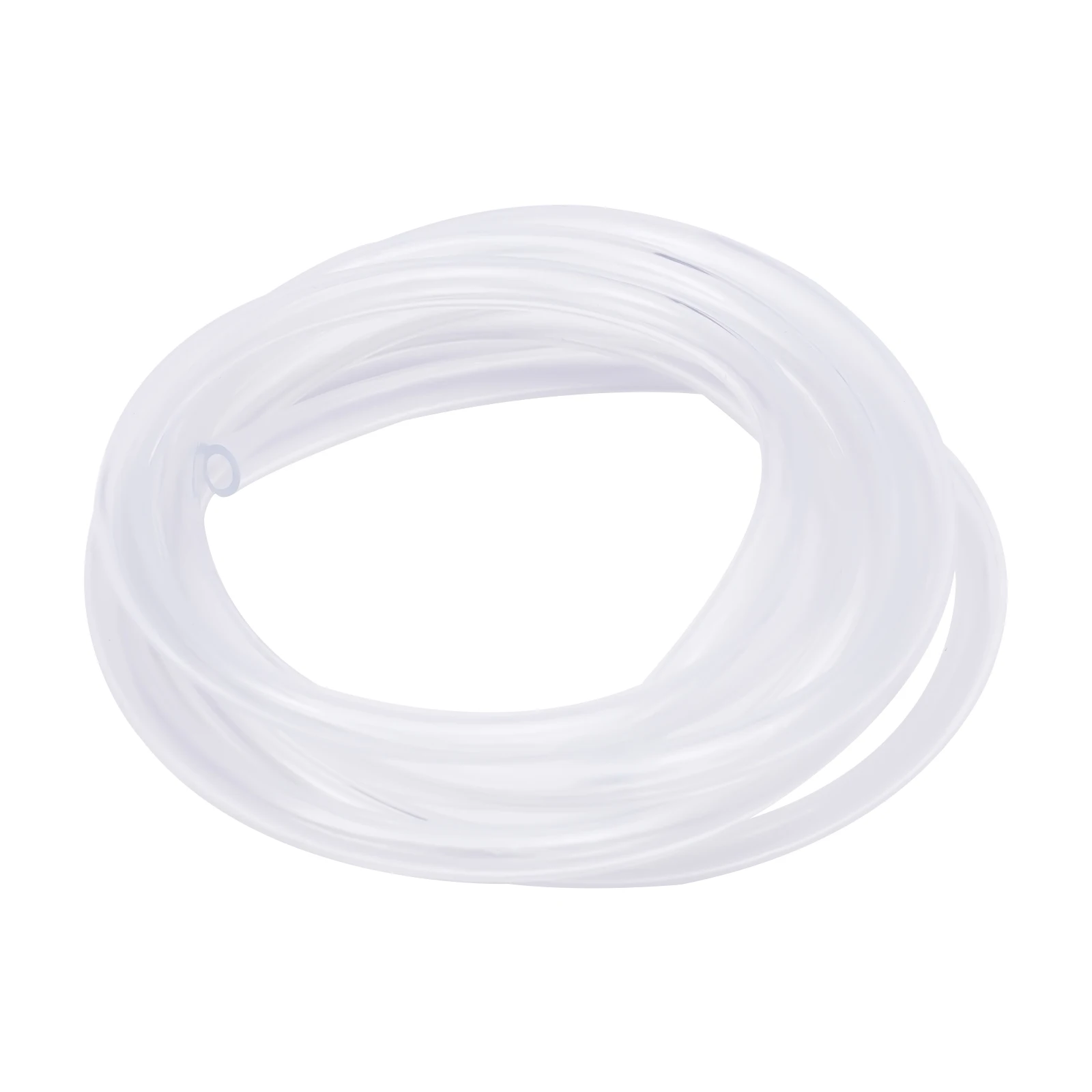

1 x Rubber Tube

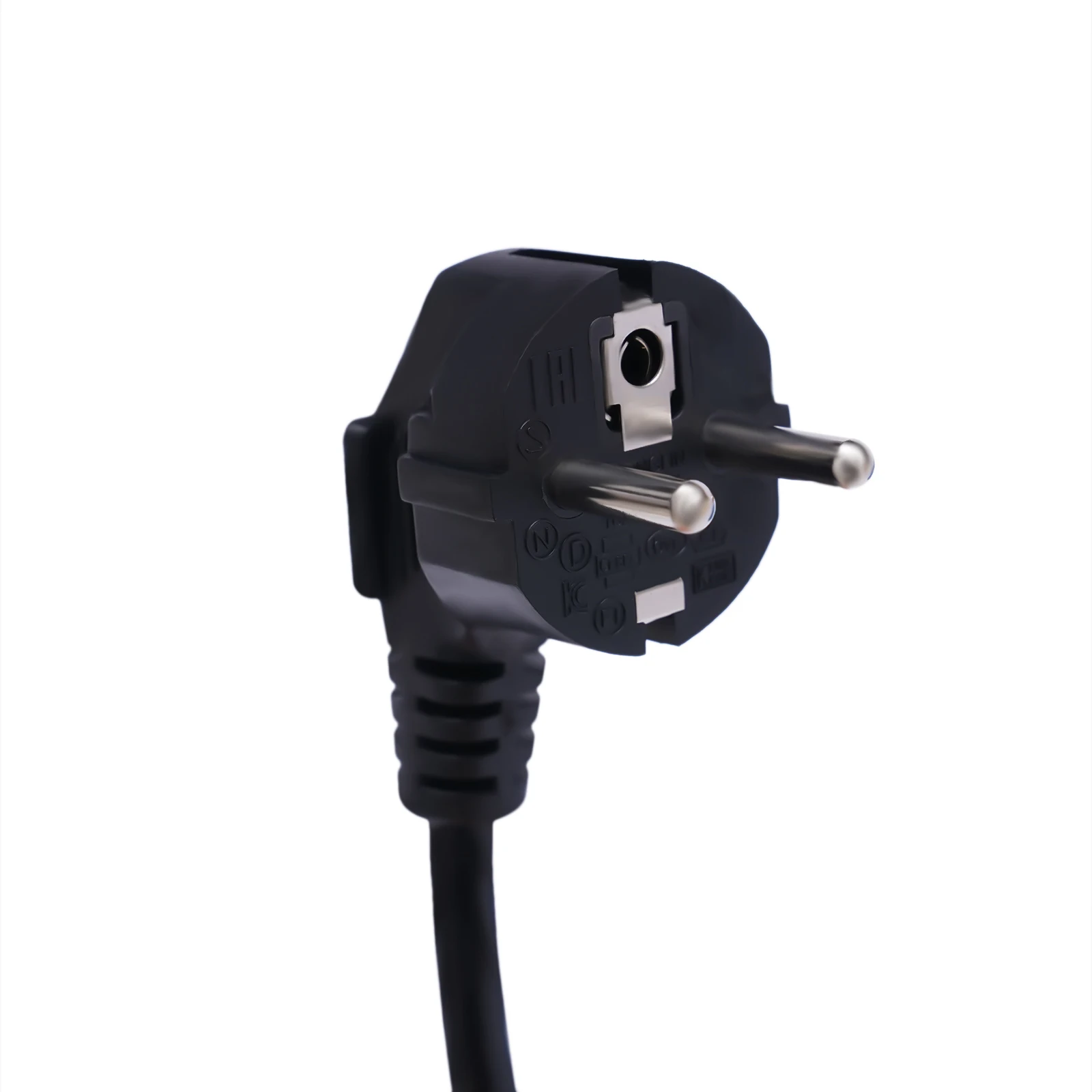

1 x Power cable

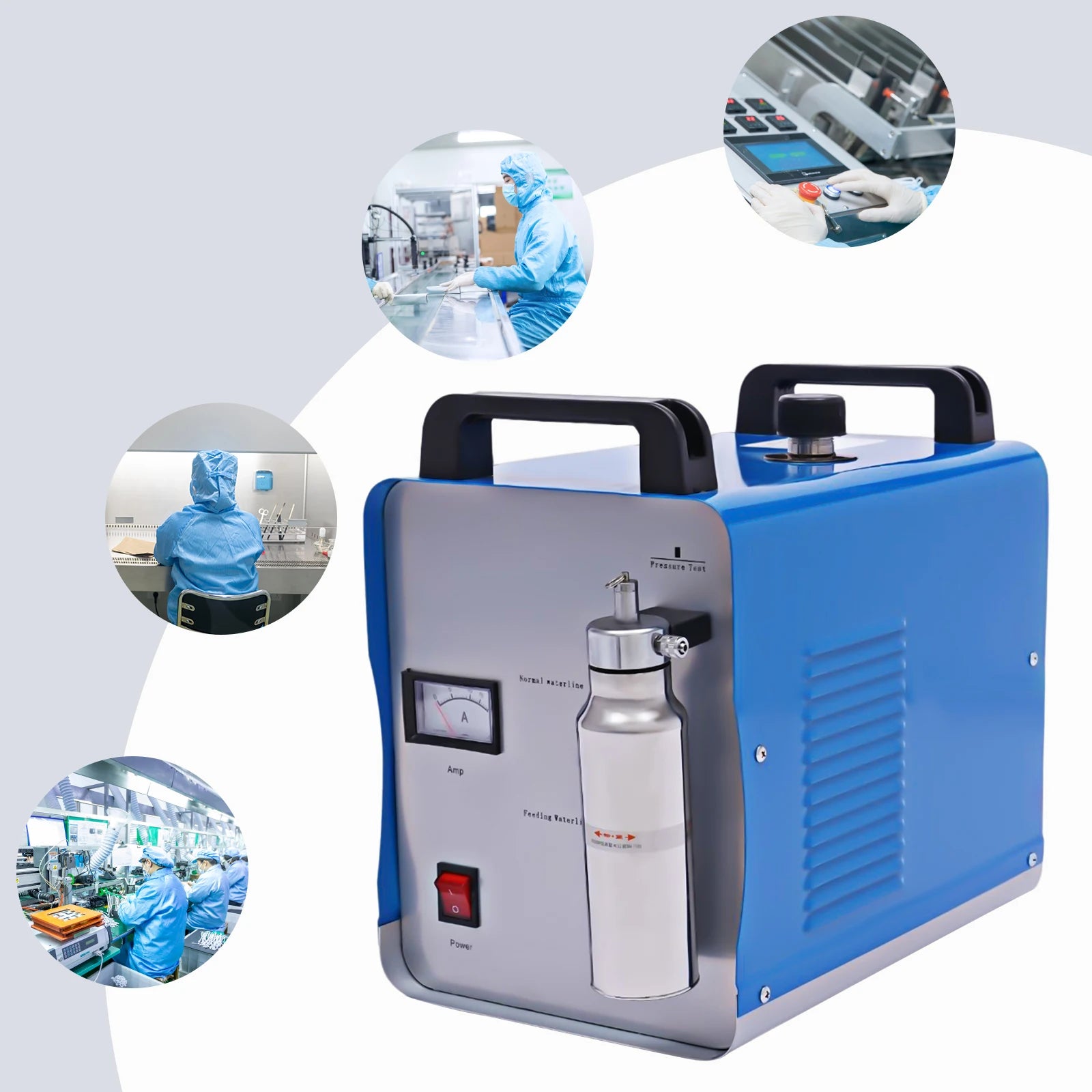

Used For
· Heat treatment for metal parts.
· Weld the hinge of spectacles rim.
· Seal the injection glass bottle, conforming to GMP industrial standards.
· Fuse the lead or tin alloy plate for storage battery.
· Cut and fuse quartz or fine parts etc.
· Peel off FPC of computer, fuse LED chip and thermocouple.
· Weld jewelry made of gold, silver, copper, lead, tin casting etc, such as stud, safety pin, chain etc.
· Polish irregular acrylic surface. After polish, the work piece will be smooth and shiny.
Note
If you don’t know how to use, Please consult our customer service staff
Instructions
The machine Doesn't include electrolytic powder, please prepare it by yourself.
The ratio: 1L water: 250g electrolytic powder
