SPECIFICATIONS
12v solar panel to charge battery: solar panel charger
Brand Name: WUZECK
Certification: CE,FCC,RoHS,weee
Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 1000W,500W, 400W, 300W, 200W, 100W
Model Number: Solar Panel
Module Efficien: 24%
Nominal Capacity: None
Number of Cells: 30 pcs solar cell
Number of Panels: >20
Origin: Mainland China
Rigid Solar Panel: No
Size: 975*550*3mm
Type: Solar Panel
is_customized: Yes
rechargeable solar panel battery: solar panel for battery
WUZECK 1pcs ~10 pcs Flexible Solar Panels 100W Mono Solar Panel 16.5V Photovoltaic Module (100W, 200W, 300W ,400W,500W 1000W) off grid Power for Camping RV Home RVs Boat Caravan

[High Efficiency]PERC technology monocrystalline solar cell.WUZECK solar panel provides high conversion efficiency up to 24%,
[Ultra-thin and ultra-lightweight design] Flexible solar panels are lightweight and portable, weighing 3.96lb and 0.11inch thick.Solar panels are easy to transport, install, hang and remove.

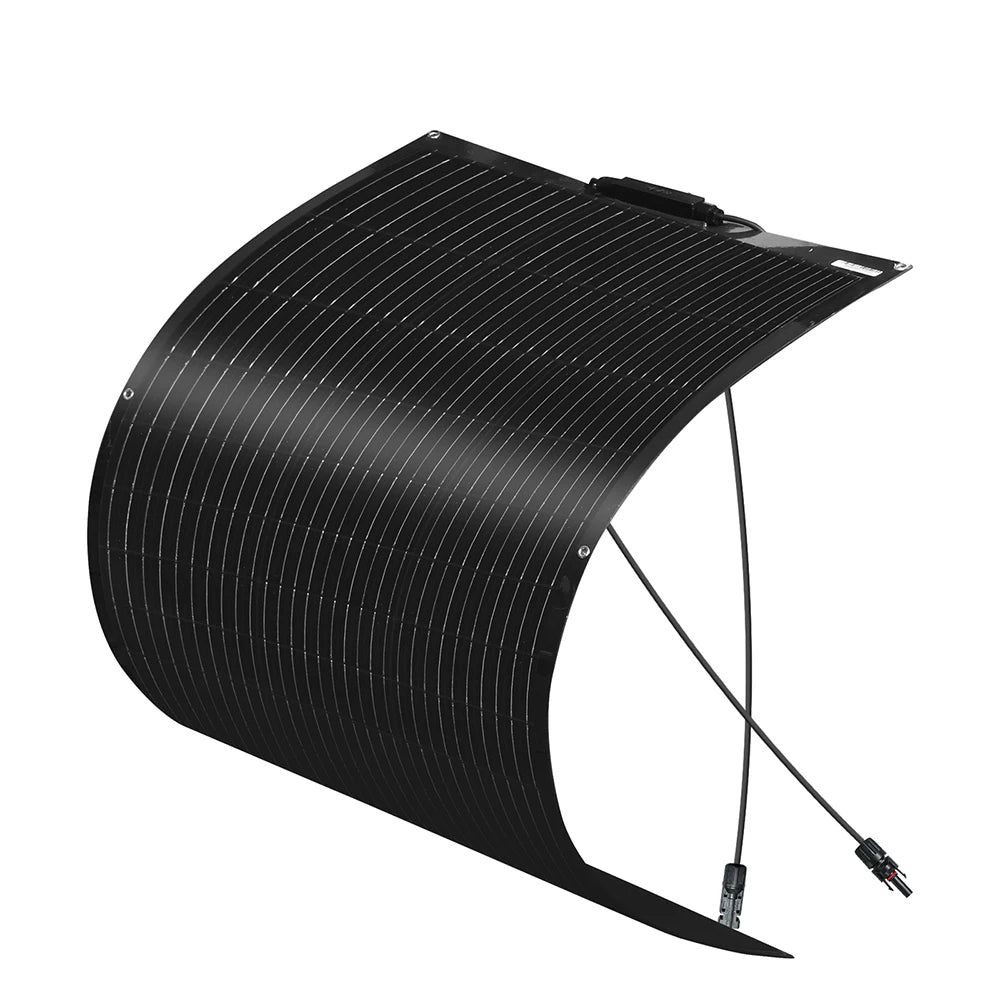

[Bendable and versatile ] Flexible solar panels are bendable and can be shaped to fit a variety of surfaces, This makes them a great choice for use on boats, RVs, trailers,and other vehicles.
[Easy to install] Flexible solar panels are easy to install and can be mounted using a variety of methods, including adhesive backing, grommets, and tie-downs. This makes them a great choice for DIY enthusiasts who want to install own solar panels.
[Compatible with for a variety of batteries] Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4),Multiple protection functions can better protect the battery.
Monocrystalline cell
PERC technology monocrystalline cells with conversion rate up to 24%.

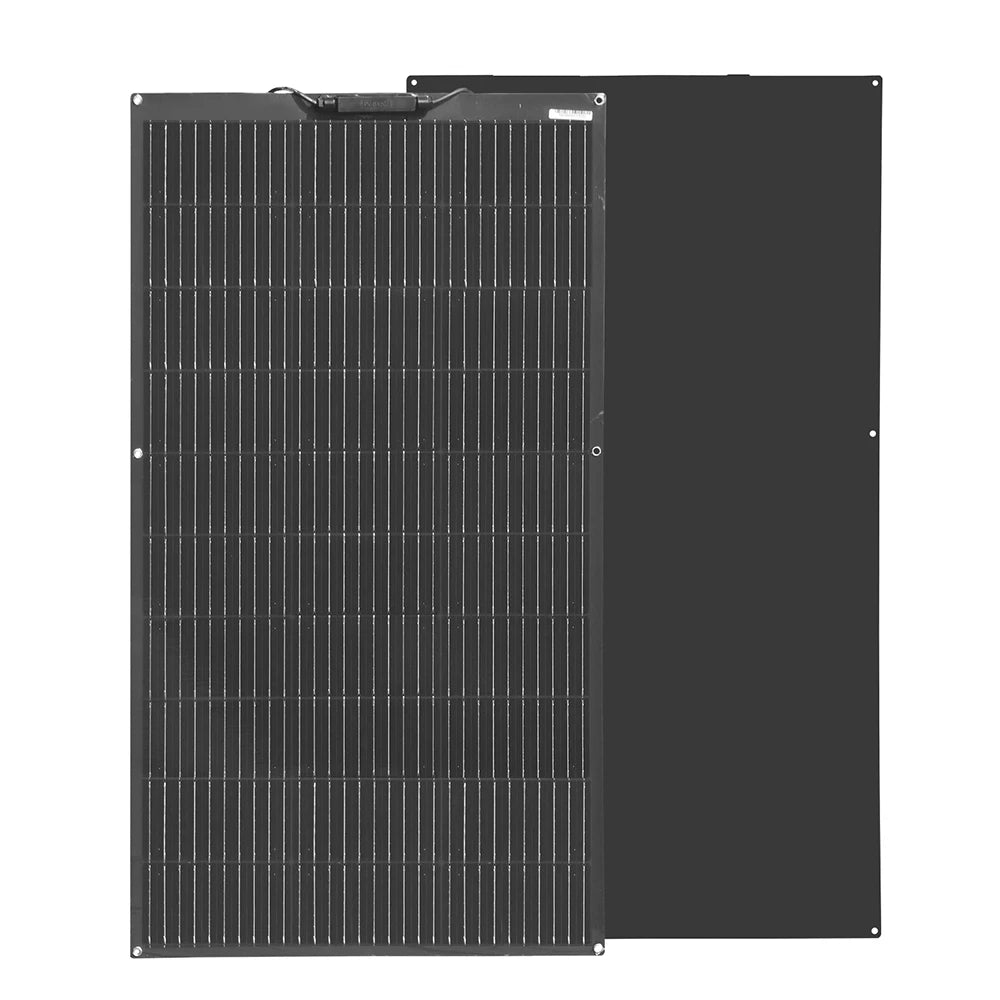

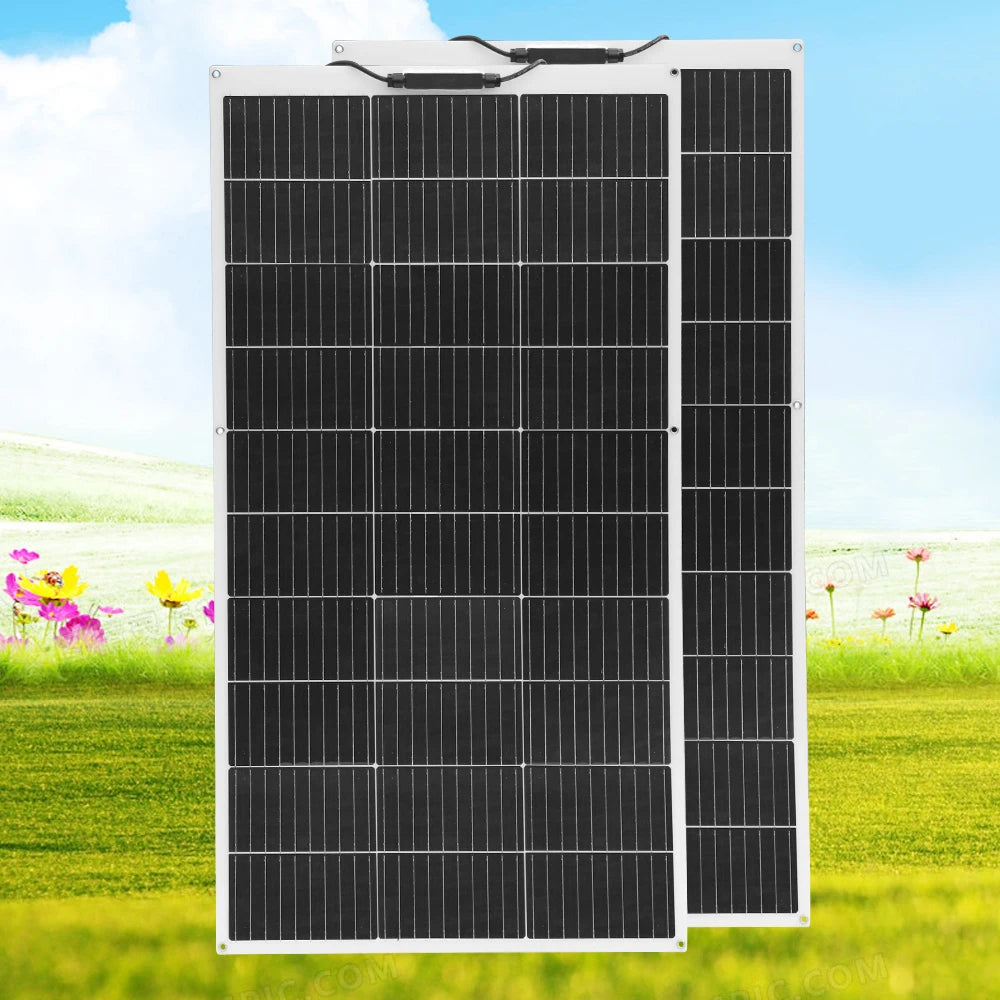

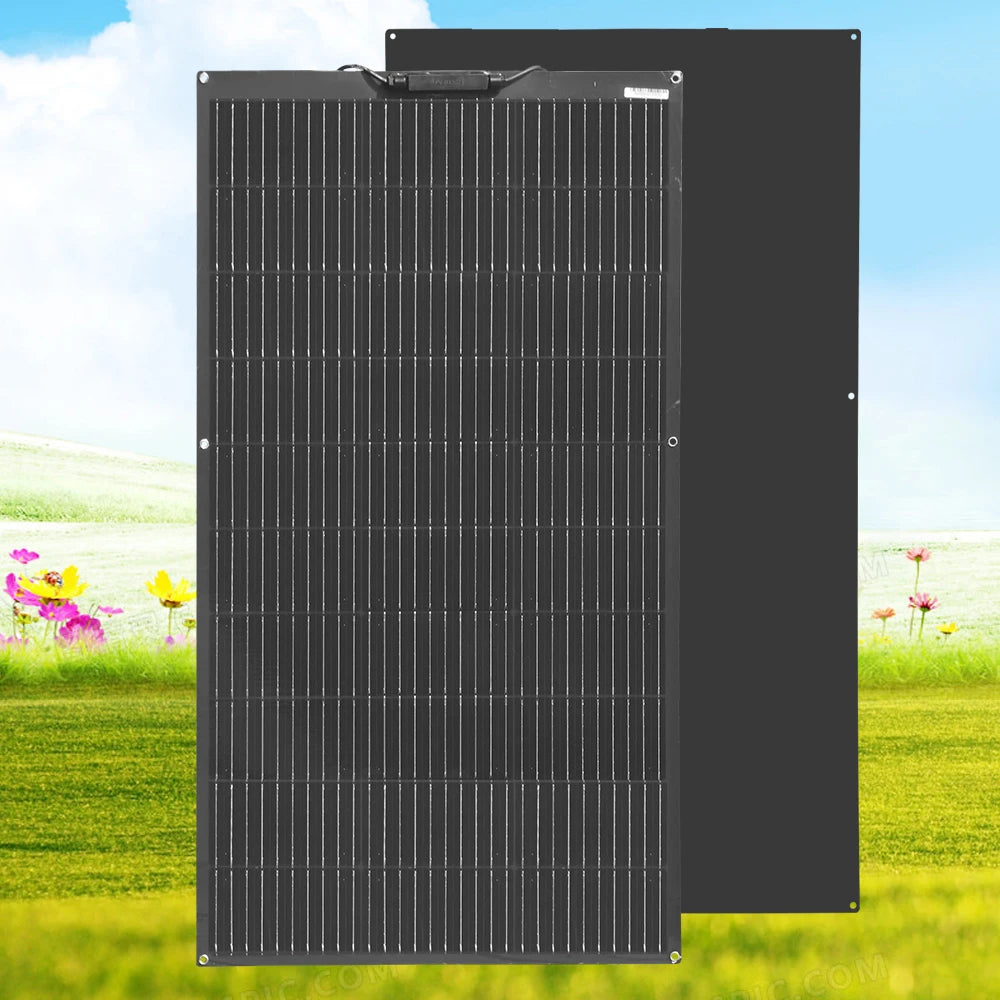

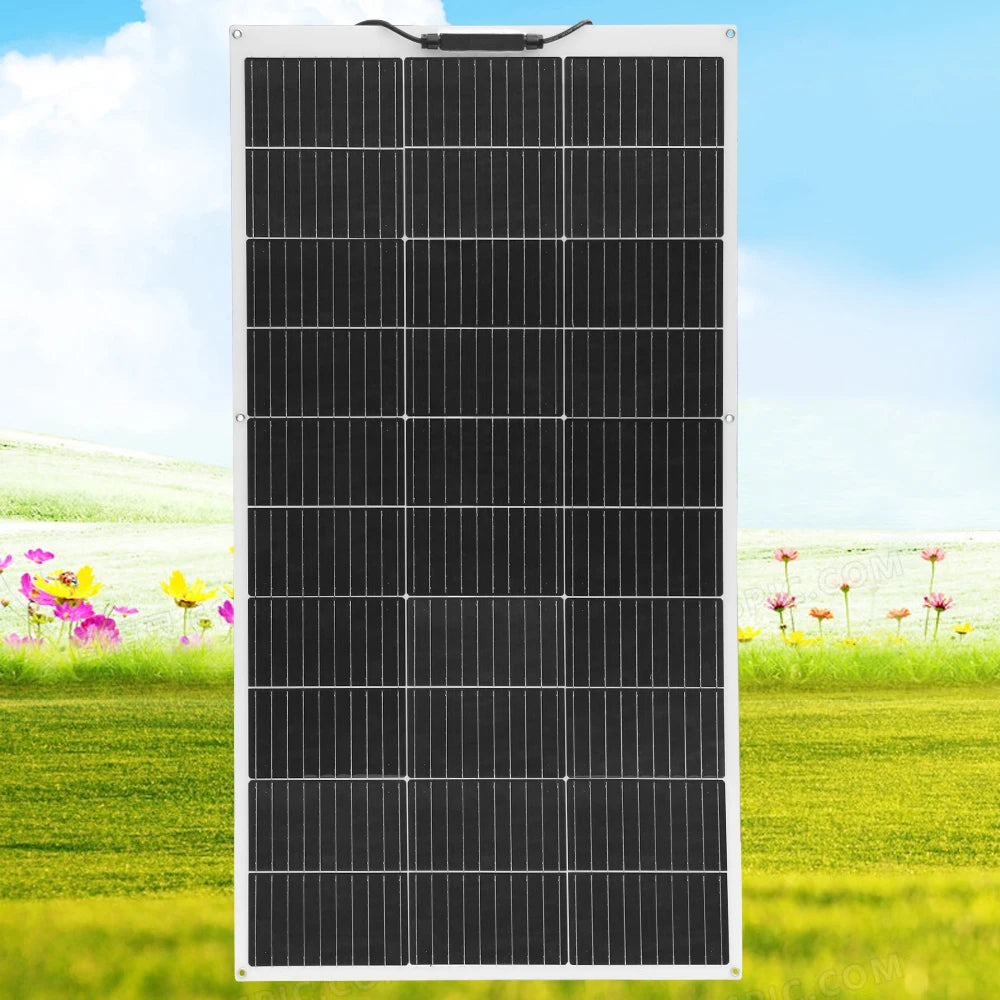

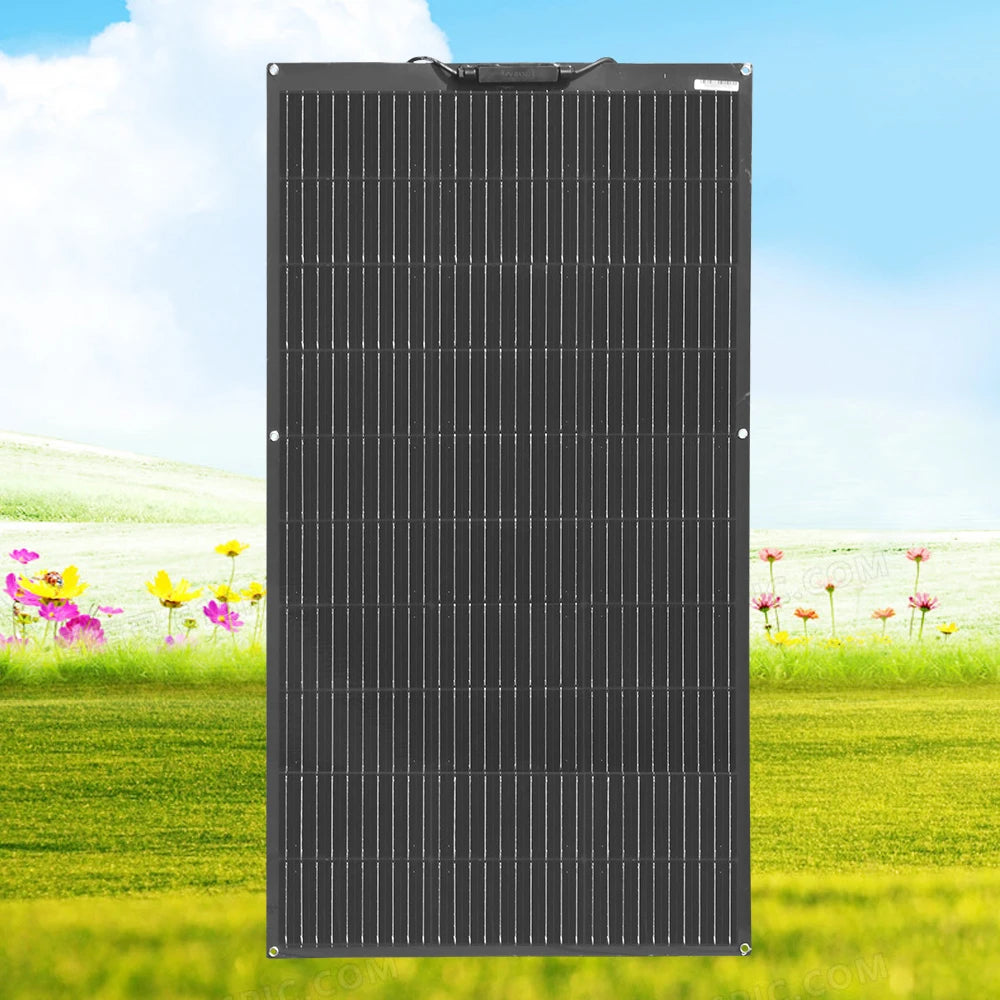

Black or white 100W flexible solar panel
Peak power Pm(W) 100 Watt
Open circuit voltage Voc(V) 19.8V
Max. power voltage Vmp(V) 16.5V
Max. power current Imp(A) 6.06A
Short circuit current Isc(A)6.66A

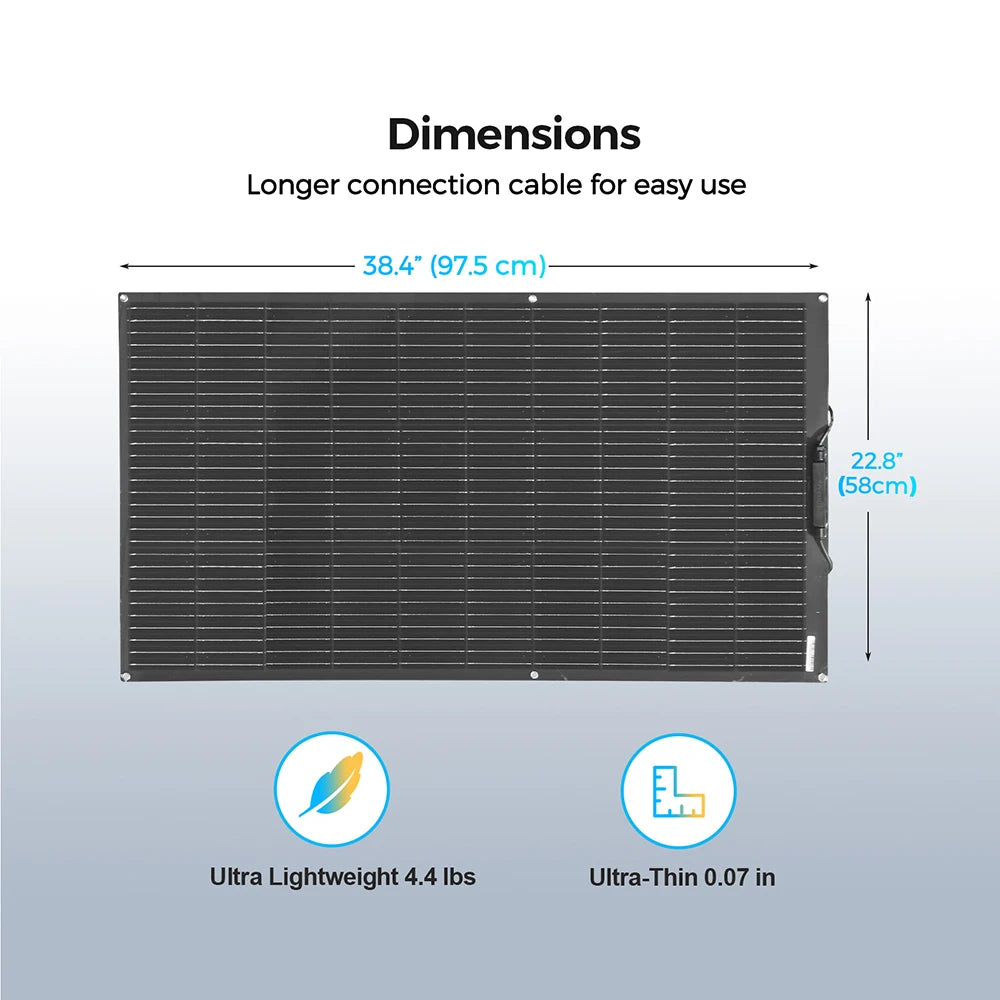

Dimensions 975*550*3mm
Weight 4.18lb
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Waterproof IP67 junction box and M C 4 connectorοΌIdeal for outdoor environment.

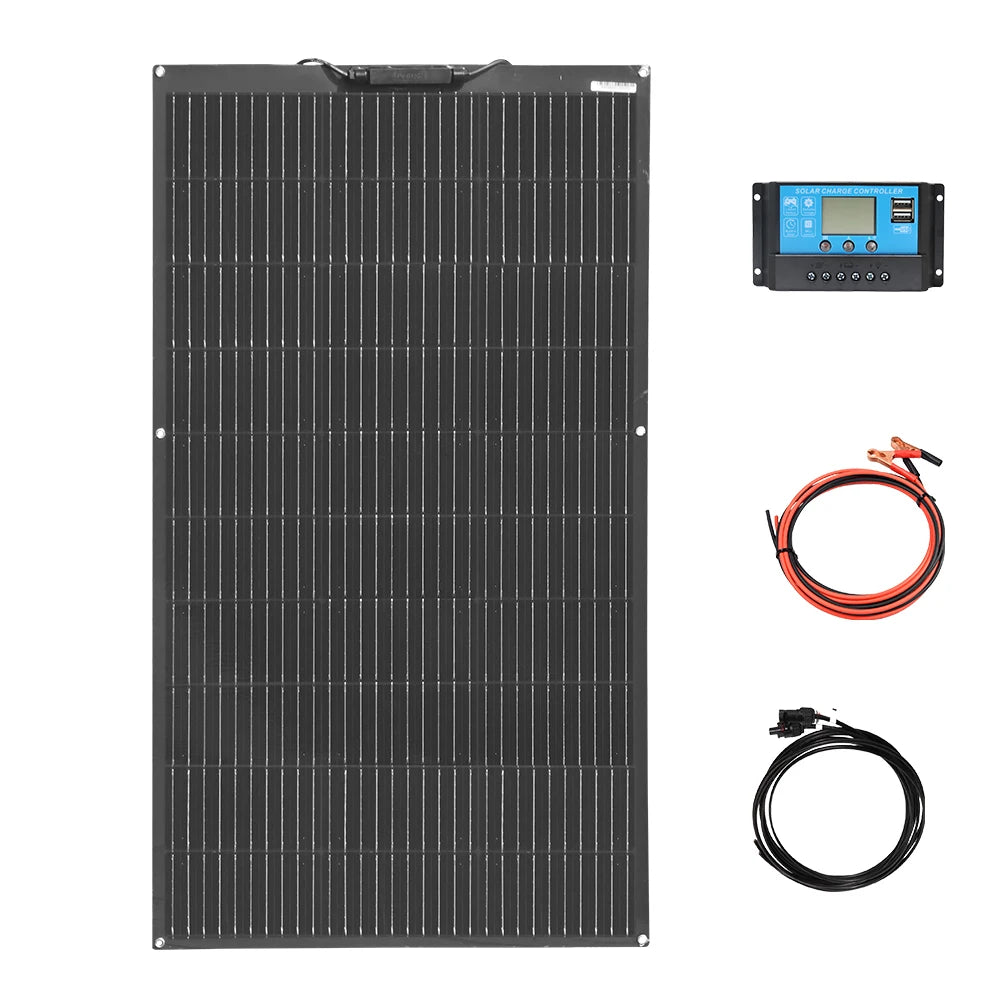

00W Solar kit Included Components : β1pcs solar panel, 1pcs 10A controller, 1 set Alligator clip cable, 1 set m c 4 cable

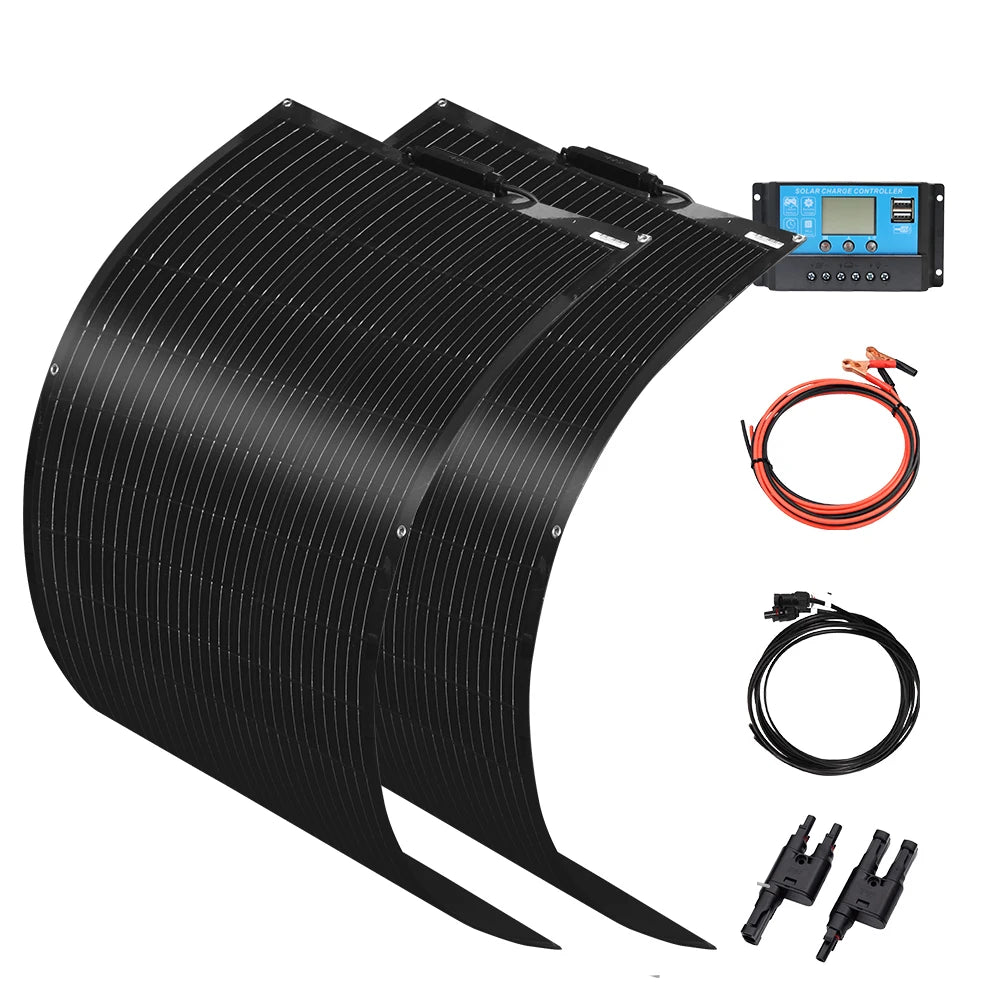

200W Solar kit Included Components β2pcs solar panel, 1 set 2 in 1 Adapters, 1pcs 20A controller, 1 set Alligator clip cable, 1 set m c 4 cable
100W Solar Included Components : β1pcs solar panel.
200W Solar Included Components β2pcs solar panel.

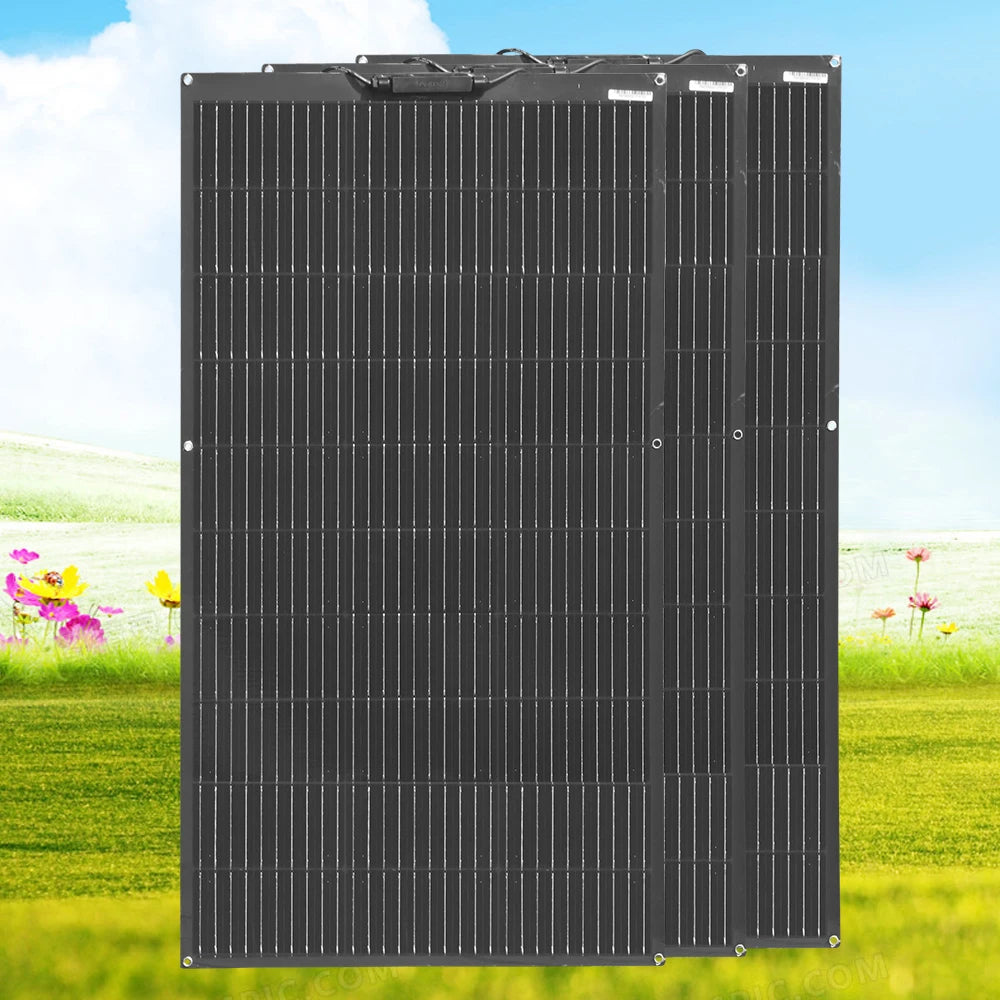

300W Solar Included Components β3pcs solar panel.

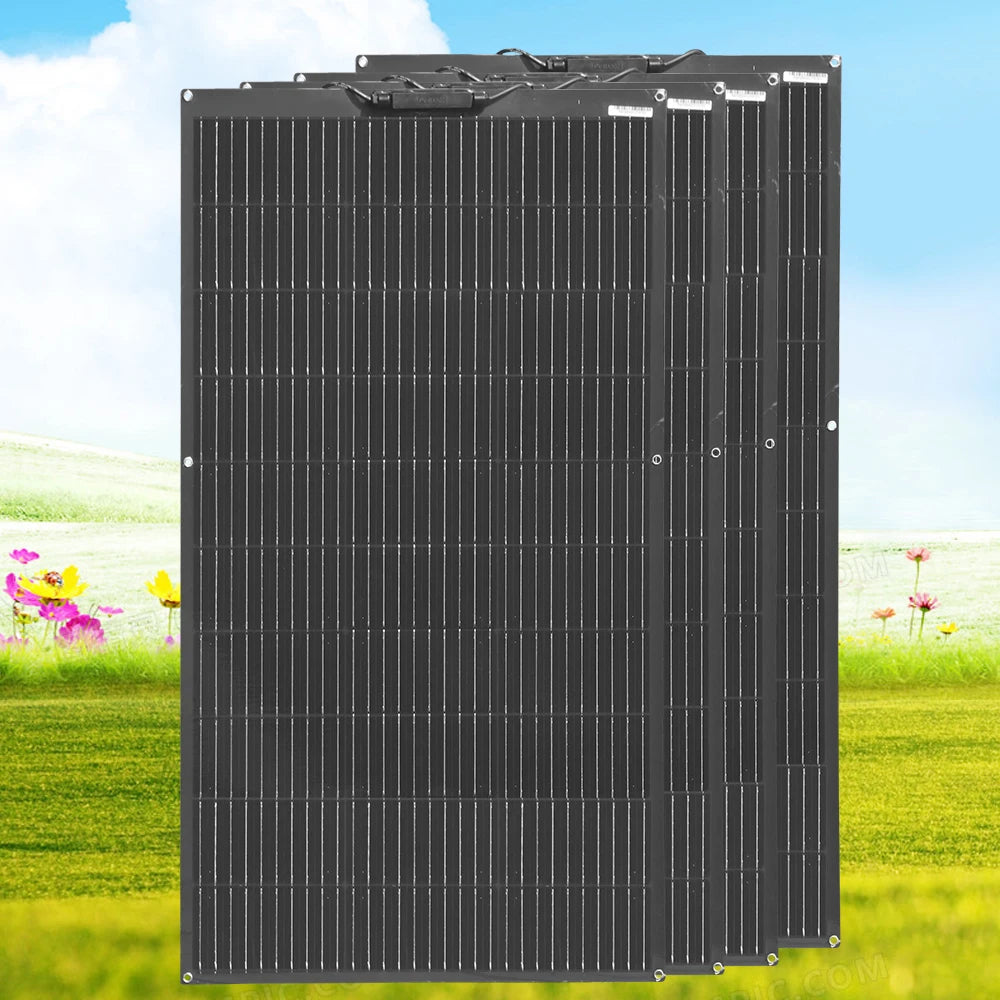

400W Solar Included Components β4pcs solar panel.

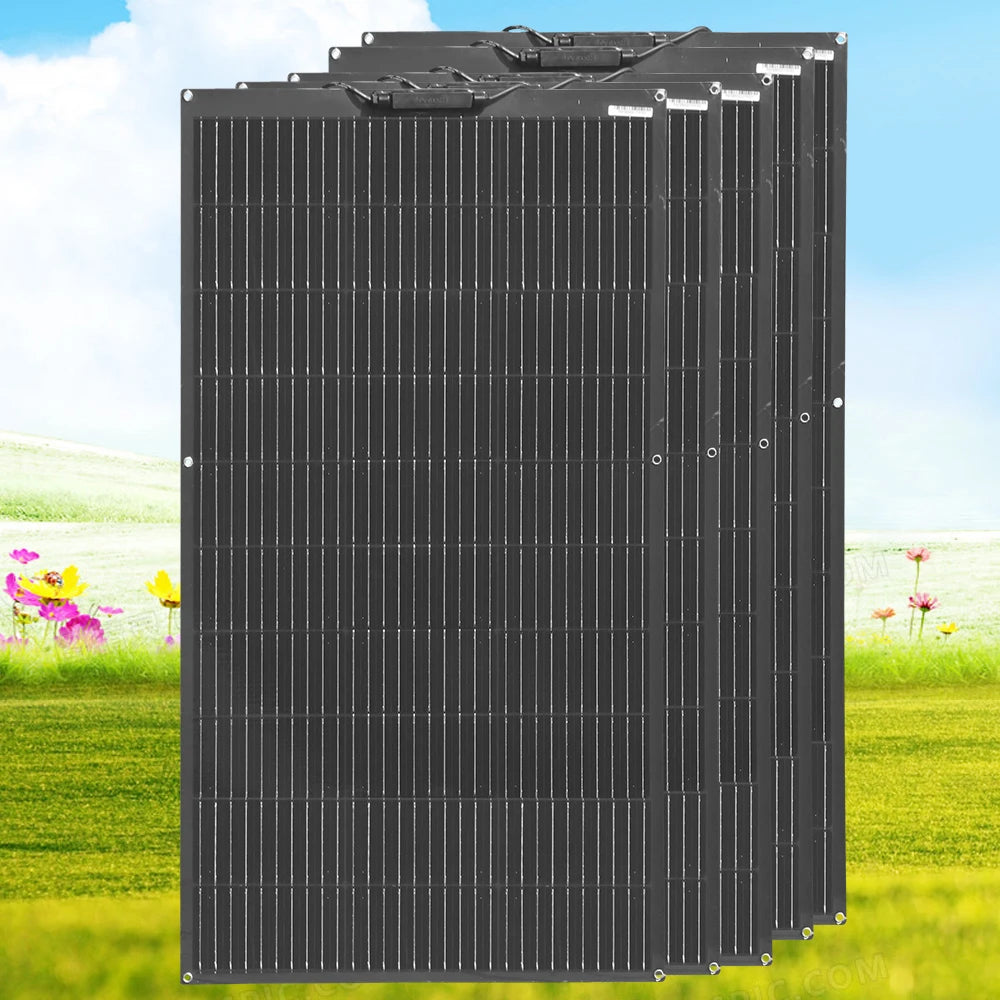

500W Solar Included Components β5pcs solar panel.

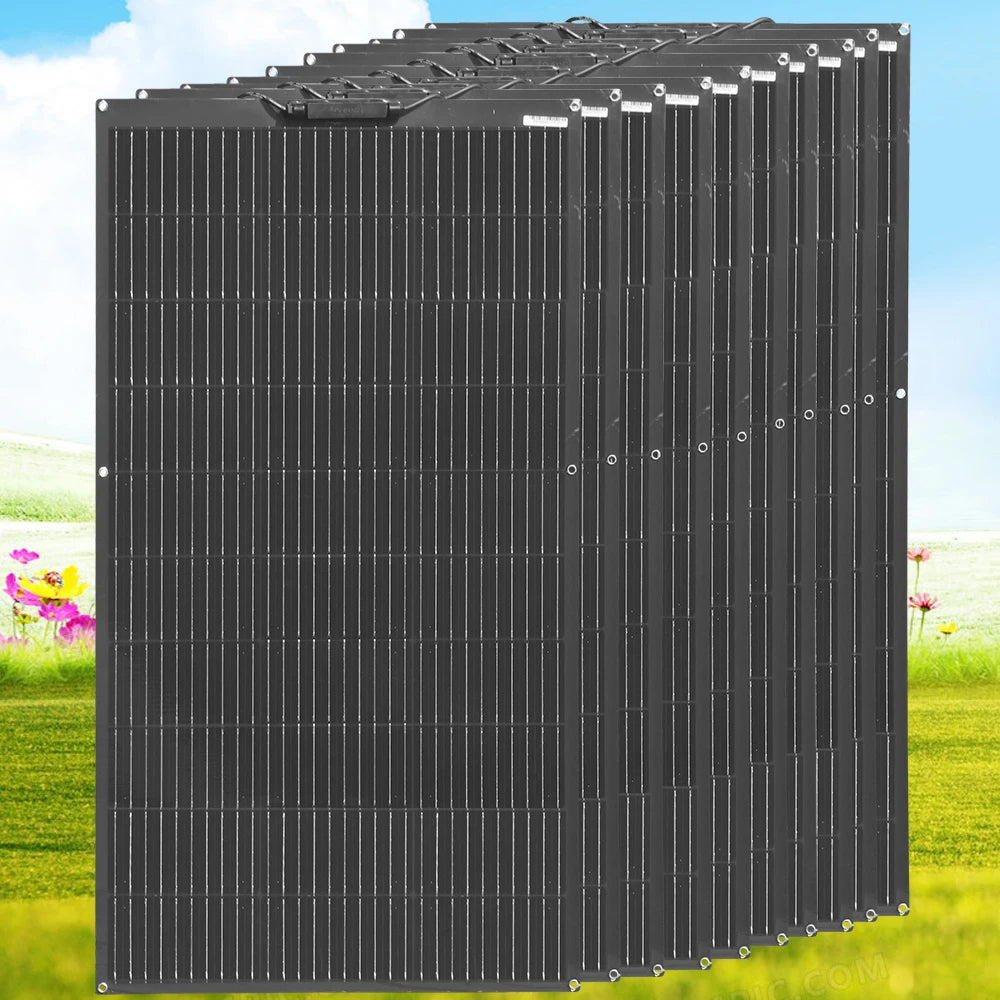

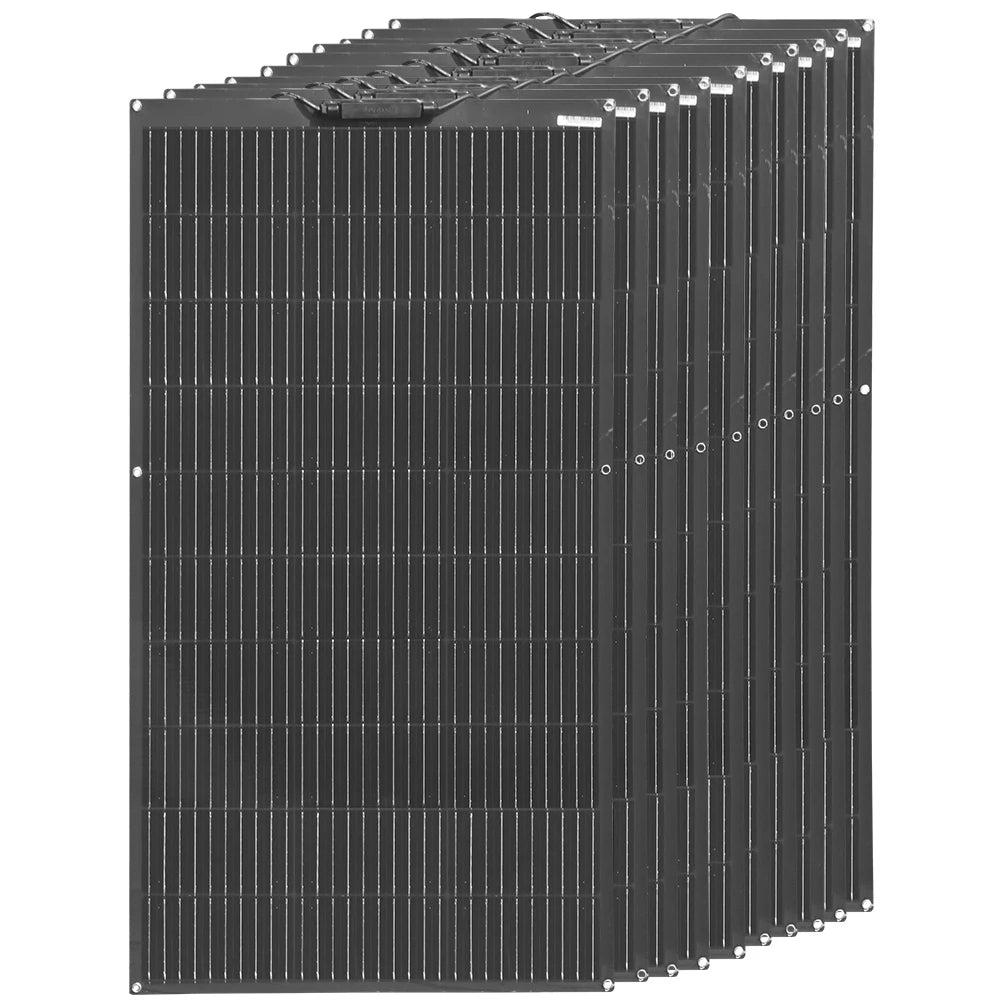

1000W Solar Included Components β10pcs solar panel.
Controller needs to be connected to the battery to show operation
