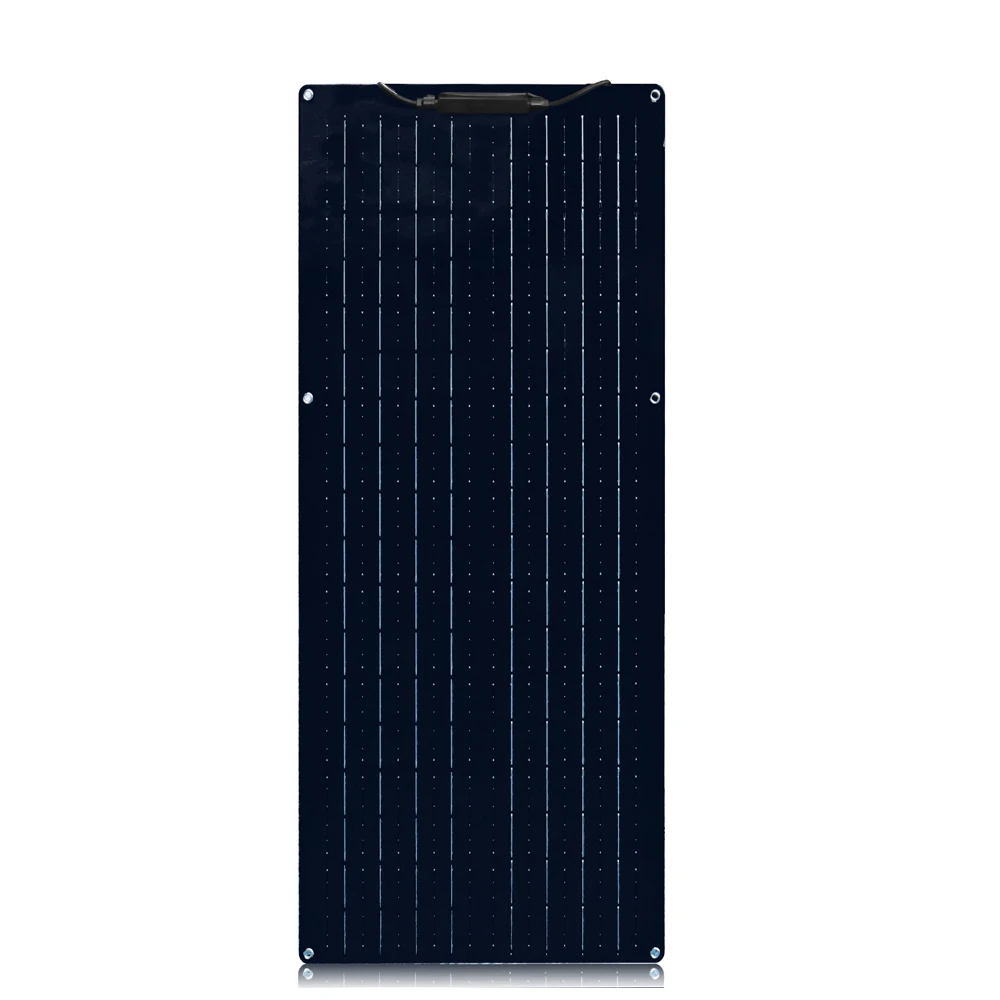

100W Flexible Solar Panel Monocrystalline Silicon 50W 100 Watt Solar Panels For Boat Car Motorhome Yacht 12v/24V Battery Charge
100W Flexible Solar Panel Monocrystalline Silicon 50W 100 Watt Solar Panels For Boat Car Motorhome Yacht 12v/24V Battery Charge
Couldn't load pickup availability
SPECIFICATIONS

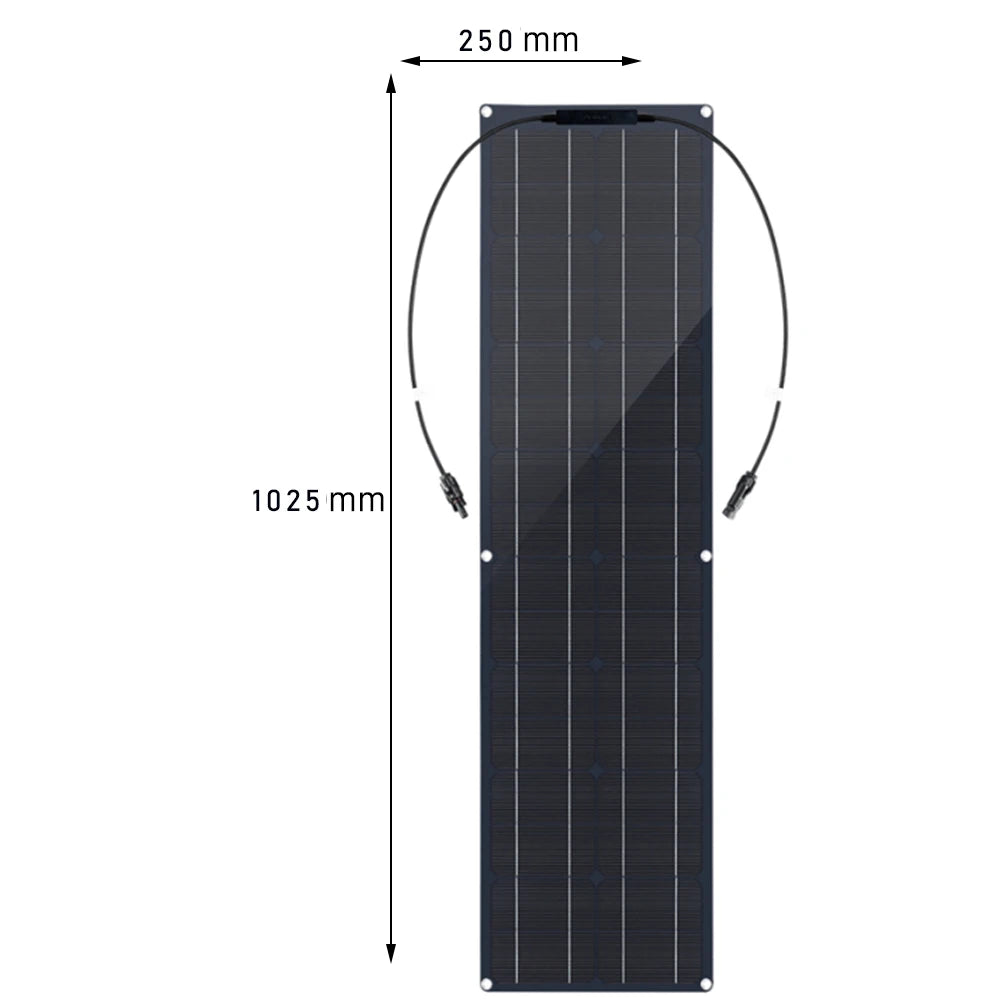

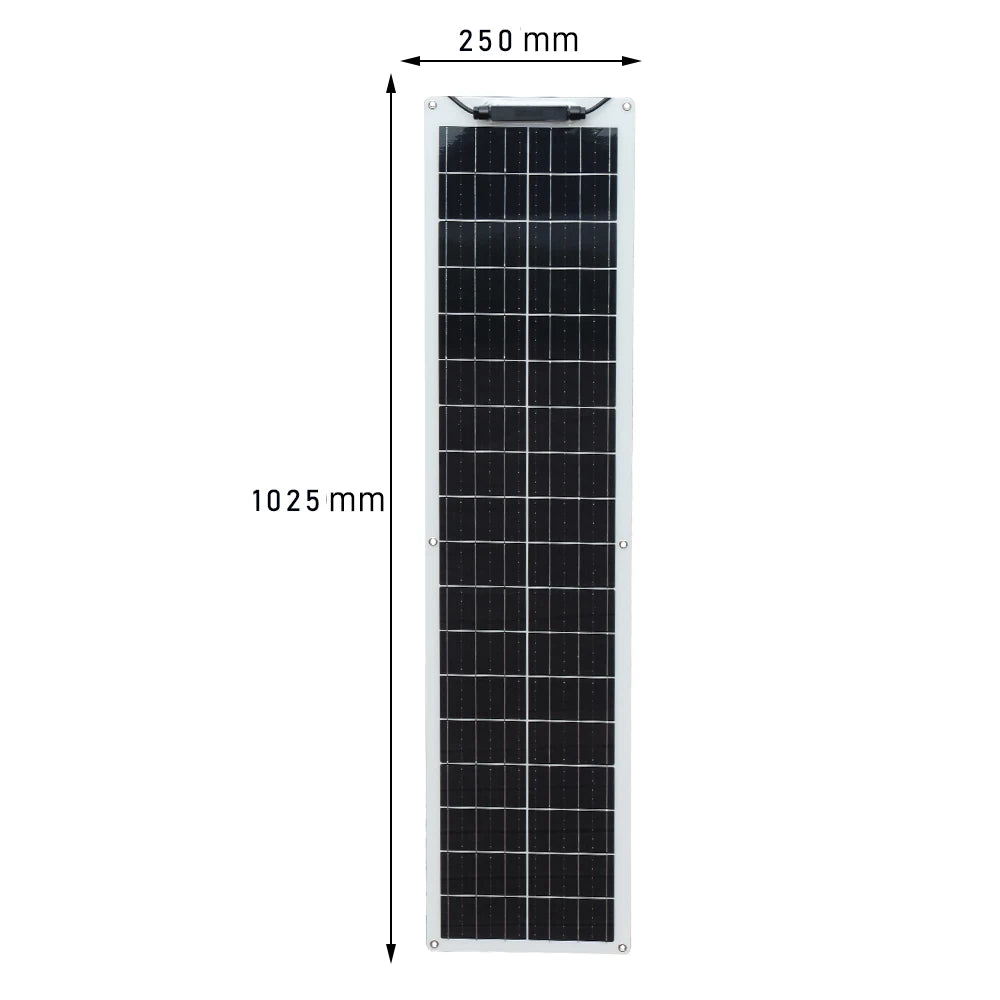

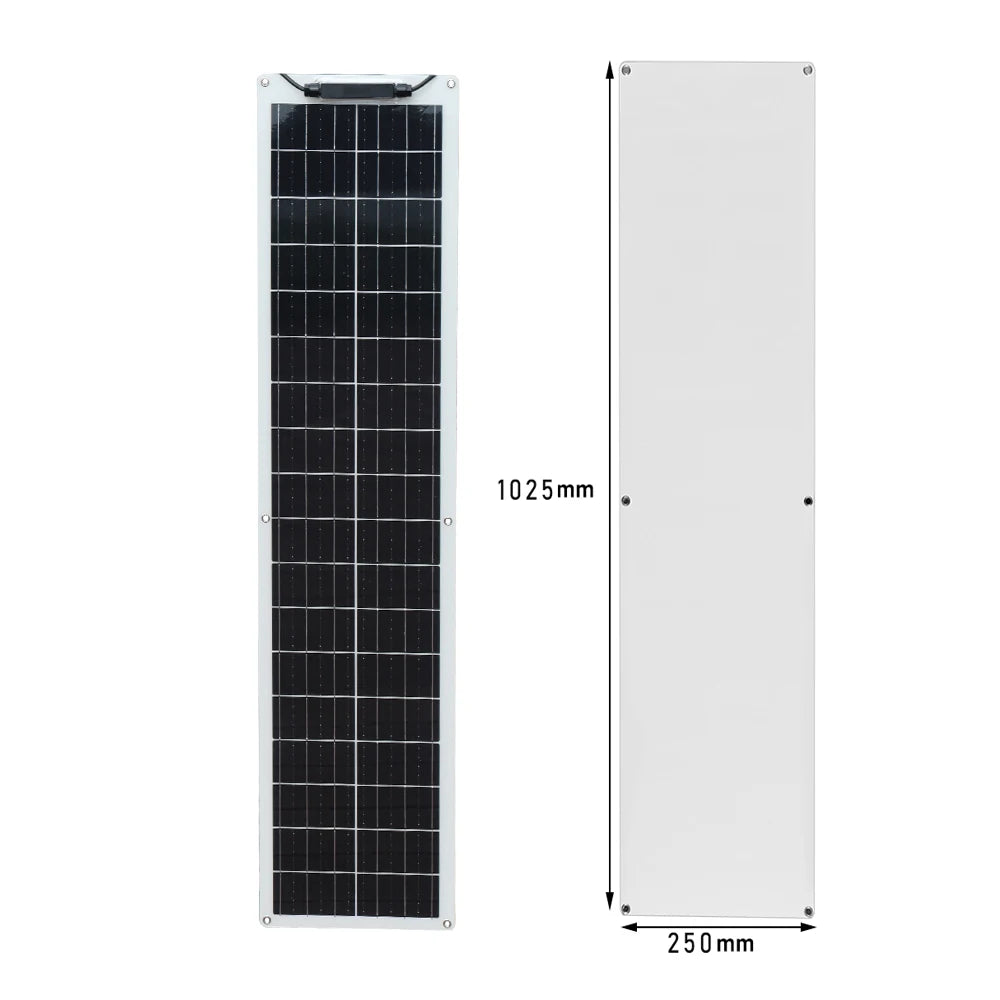

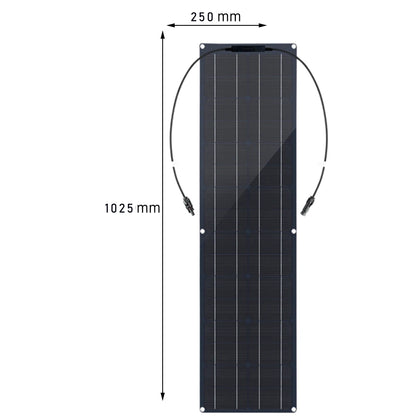

19.8V 50W Solar panel Size: 1025*250*3MM
Brand Name: xinpuguang
Certification: CE,FCC,RoHS,weee
Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 50W/ 100W/ 150W
Model Number: Solar Panel Kit
Module Efficien: 21.8%
Nominal Capacity: 50W 100W 150W
Number of Cells: 32 cells
Number of Panels: >20
Origin: Mainland China
Rigid Solar Panel: No
Size: 42.91 inch*10.9 inch*0.01 inch /
Type: Solar Panel
is_customized: Yes
19.8V Solar Panel Specification
Maximum power(Pmax) 50W
Output tolerance ± 5%
Maximum system voltage 600V DC
Open circuit voltage(Voc) 23.76V
Short circuit current(Isc) 2.77A
Maximum power voltage(Vmp) 19.8V
Maximum power current(Imp) 2.52A
Cell efficiency 24%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 1Kg
Size 1025*250*3 mm
Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
19.8V 50W Specification:
Cell material: Monocrystalline silicon
Pmax (Power at Maximum under STC) :50W
Imp (Current at Max Power, A): 2.52A
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit):21.8V
Isc (Current at Short Circuit,A): 2.65A
Solar Cell Efficiency: 24%

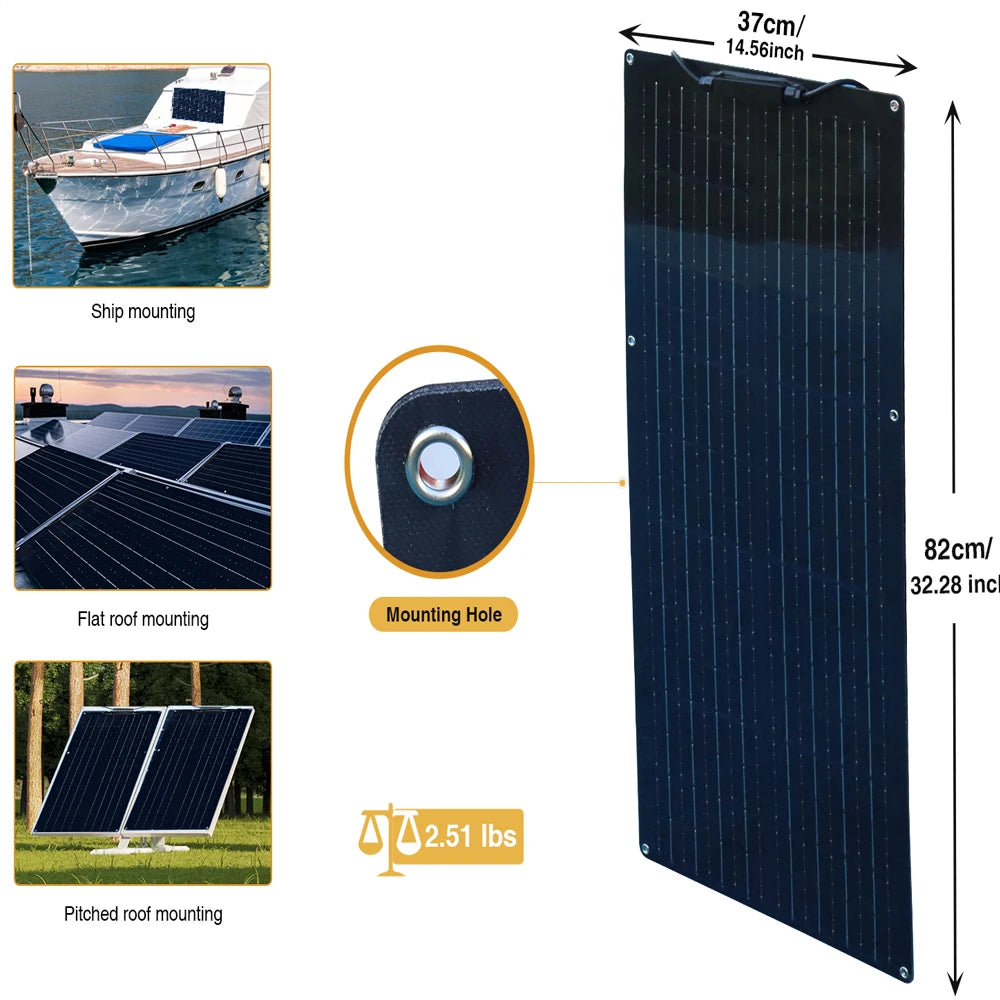

Size of module:820*370*3mm
Net Weight: 1300g
Length of Cables: 19.7(inches)

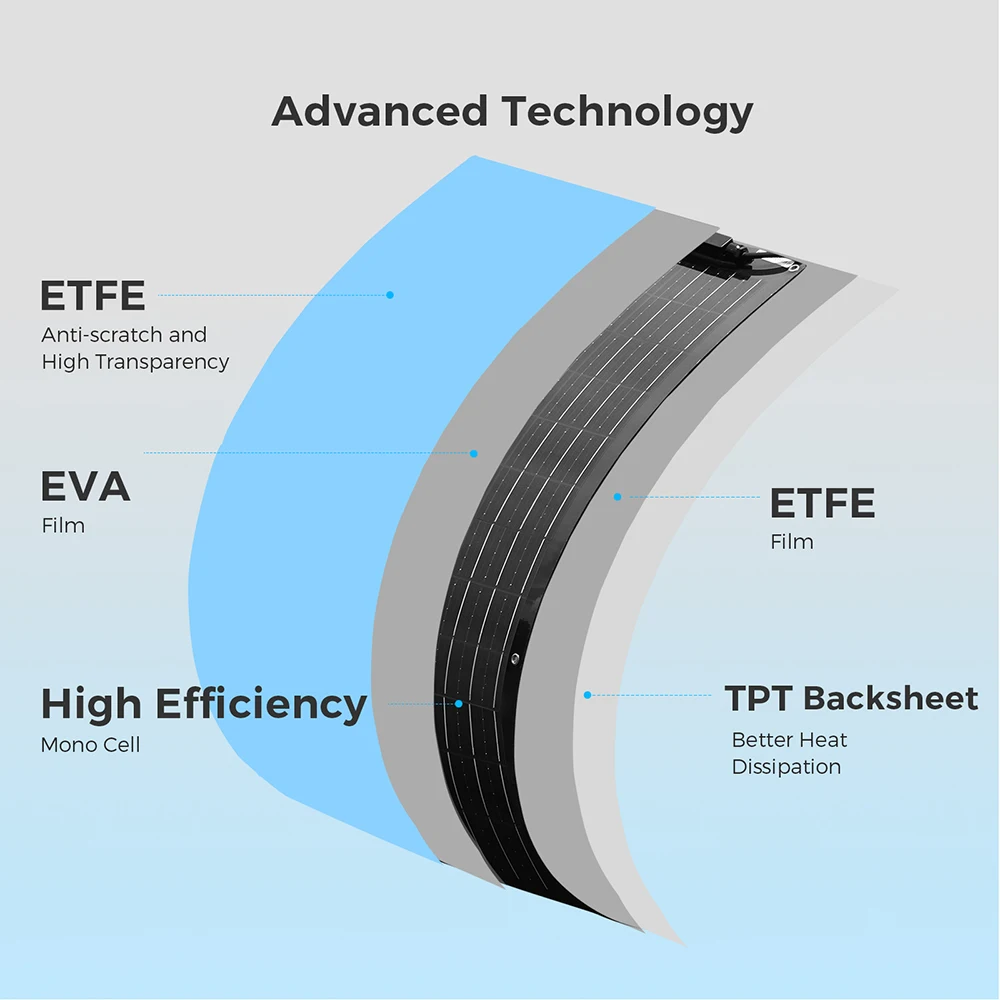

Material structure：
1 floor: PET
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet

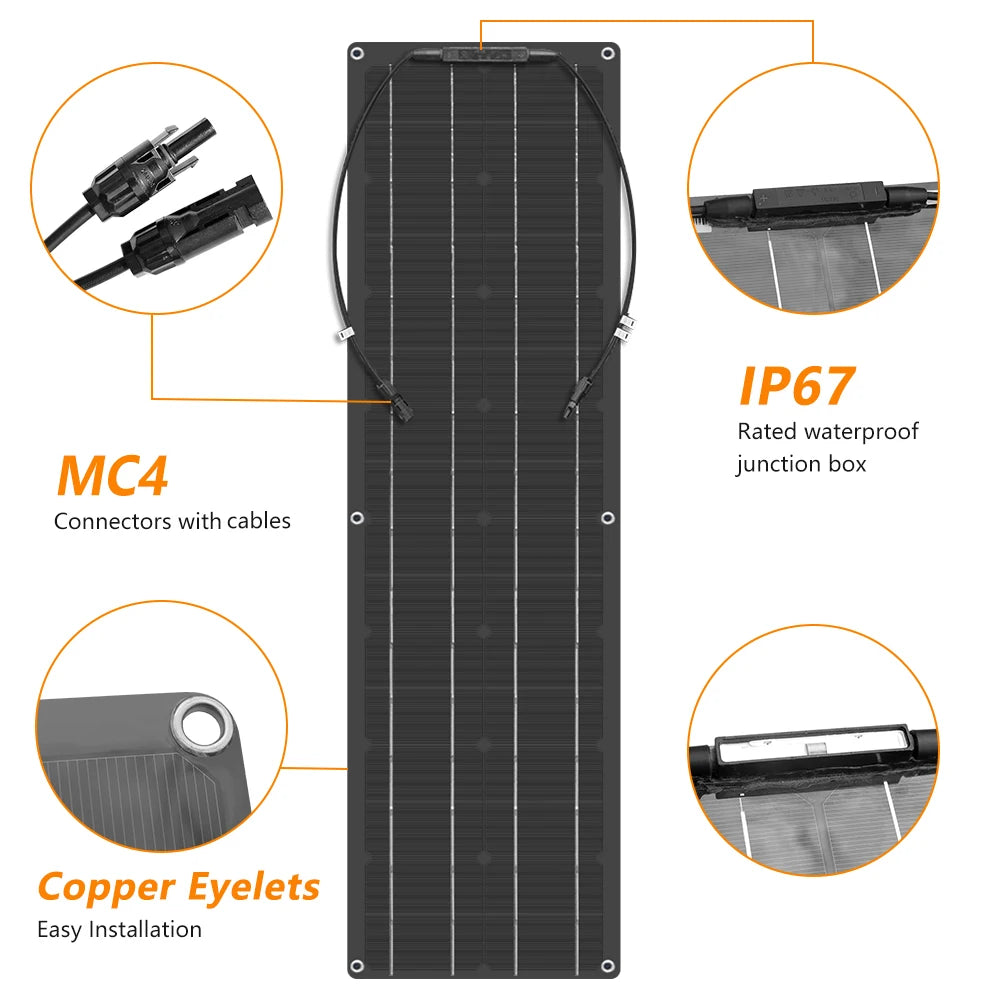

waterproof level：IP67（Junction Box）
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy，thank you）

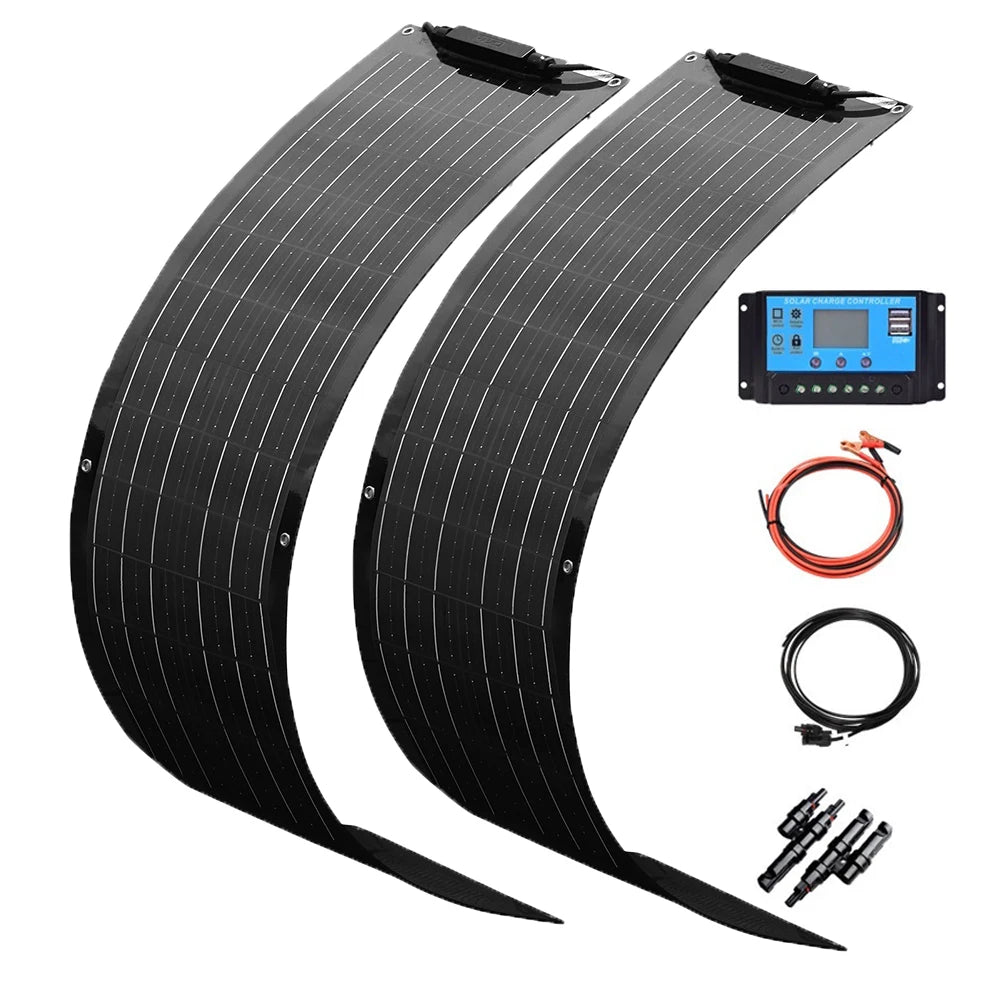

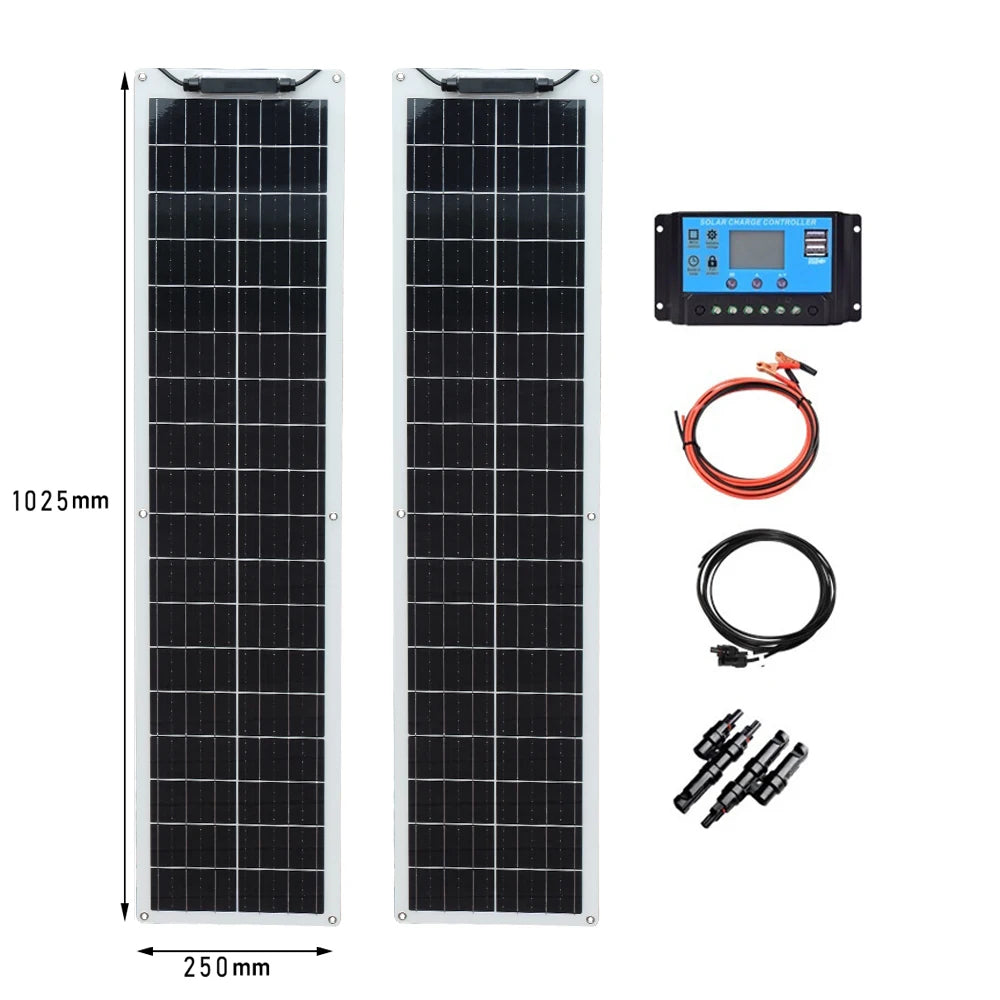

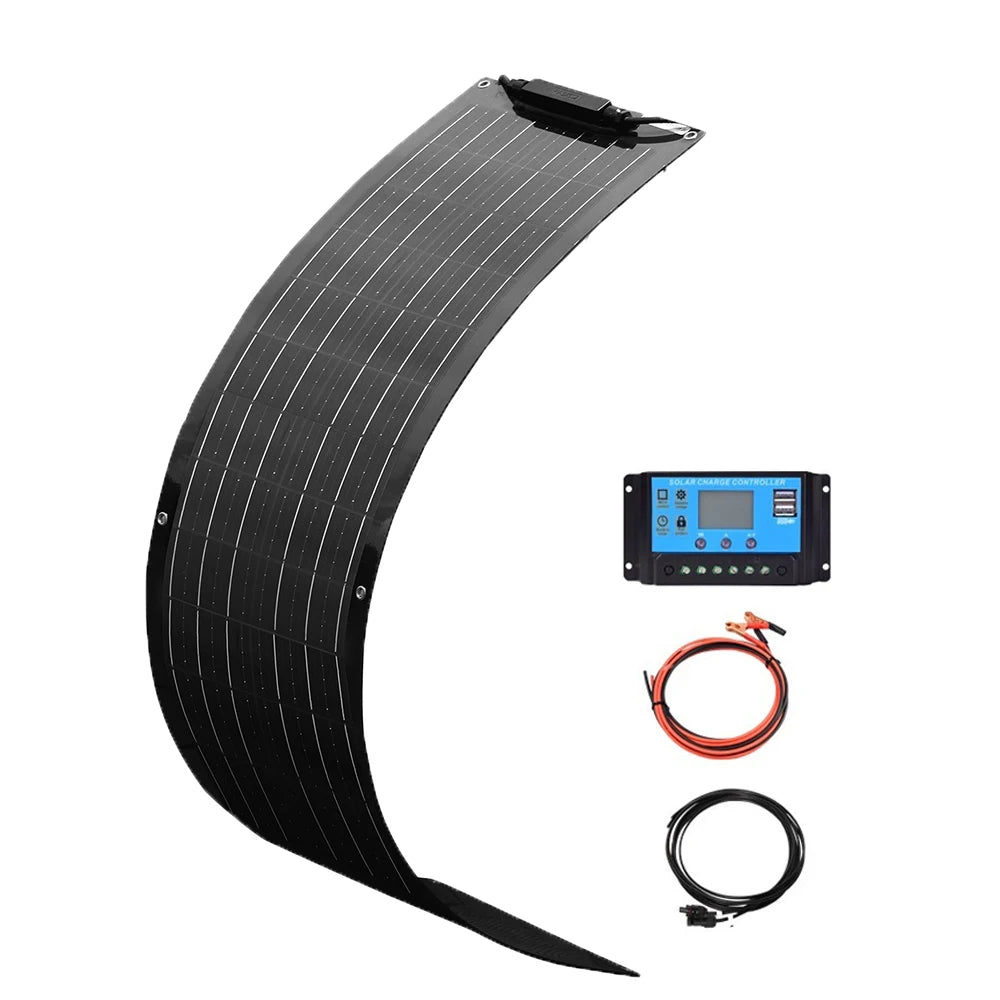

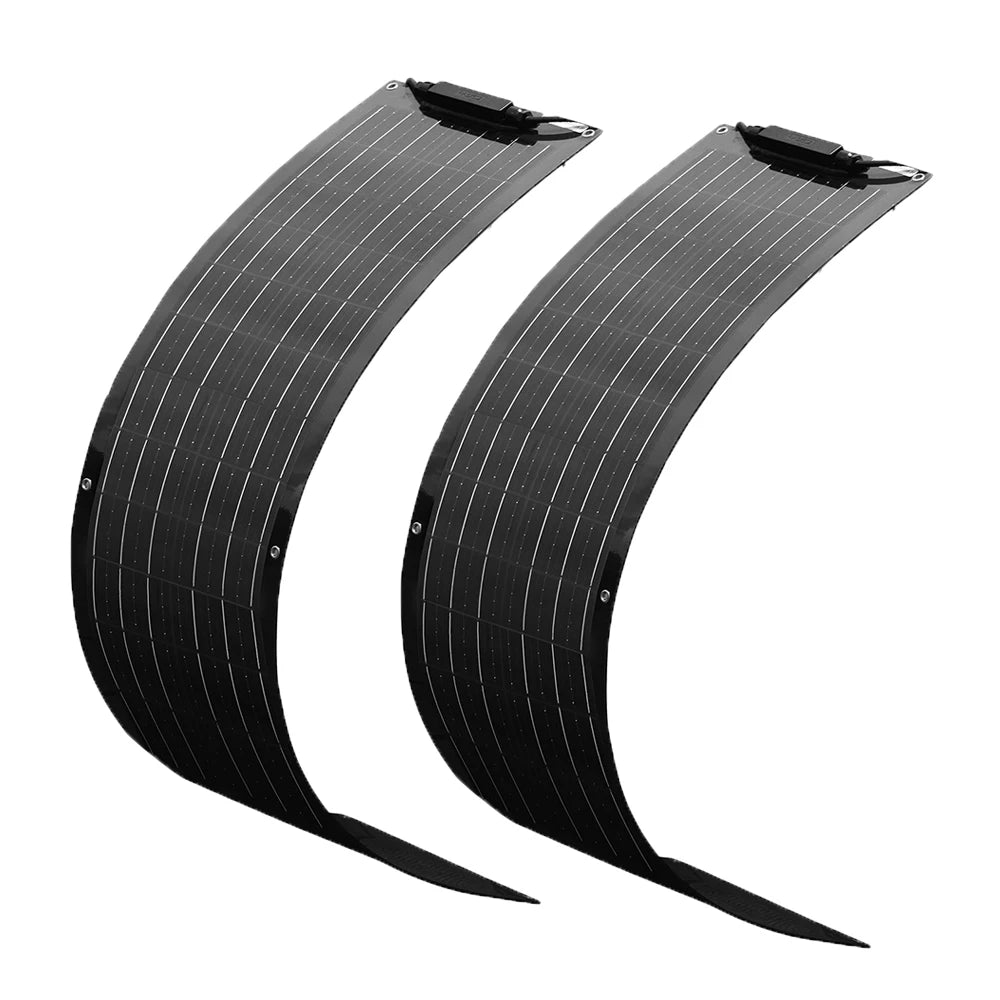

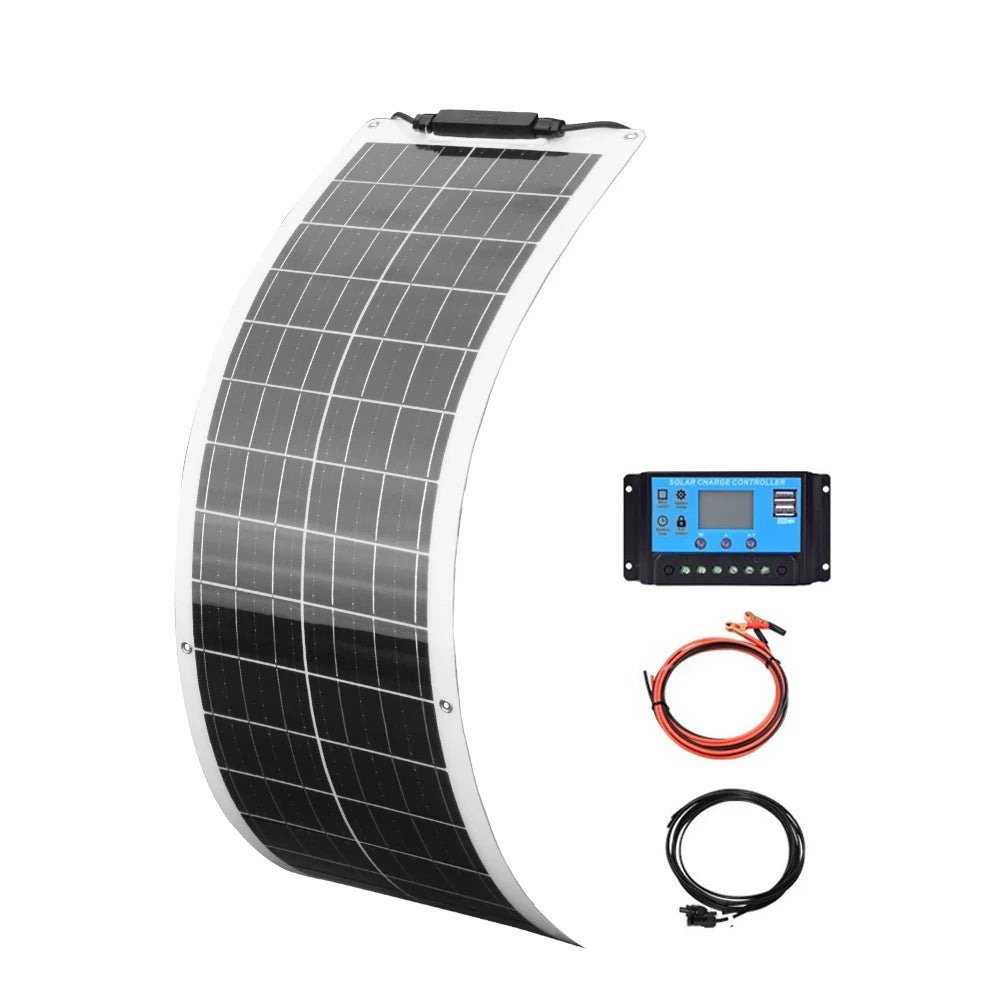

Packing list
1* 16V 50W Flexible Solar Panel (1060*277MM)
OR
1* 19.8V 50W Flexible Solar Panel (1025*250MM)
OR
2* 19.8V 50W Flexible Solar Panel (1025*250MM)
OR
1*19.8V 50W Flexible Solar Panel (1025*250MM)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1*10A Controller
OR
2*19.8V 50W Flexible Solar Panel (1025*250MM)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1*10A Controller
1 set 2 in 1 adapter

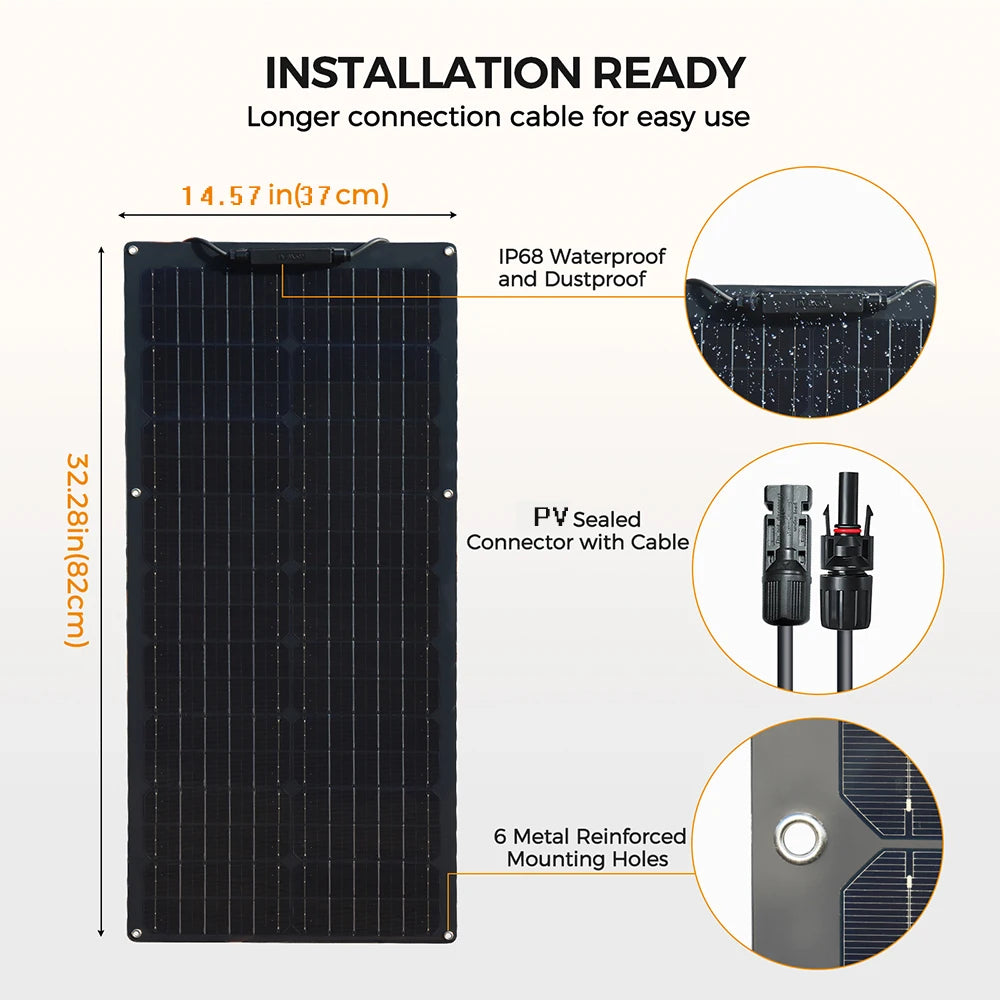

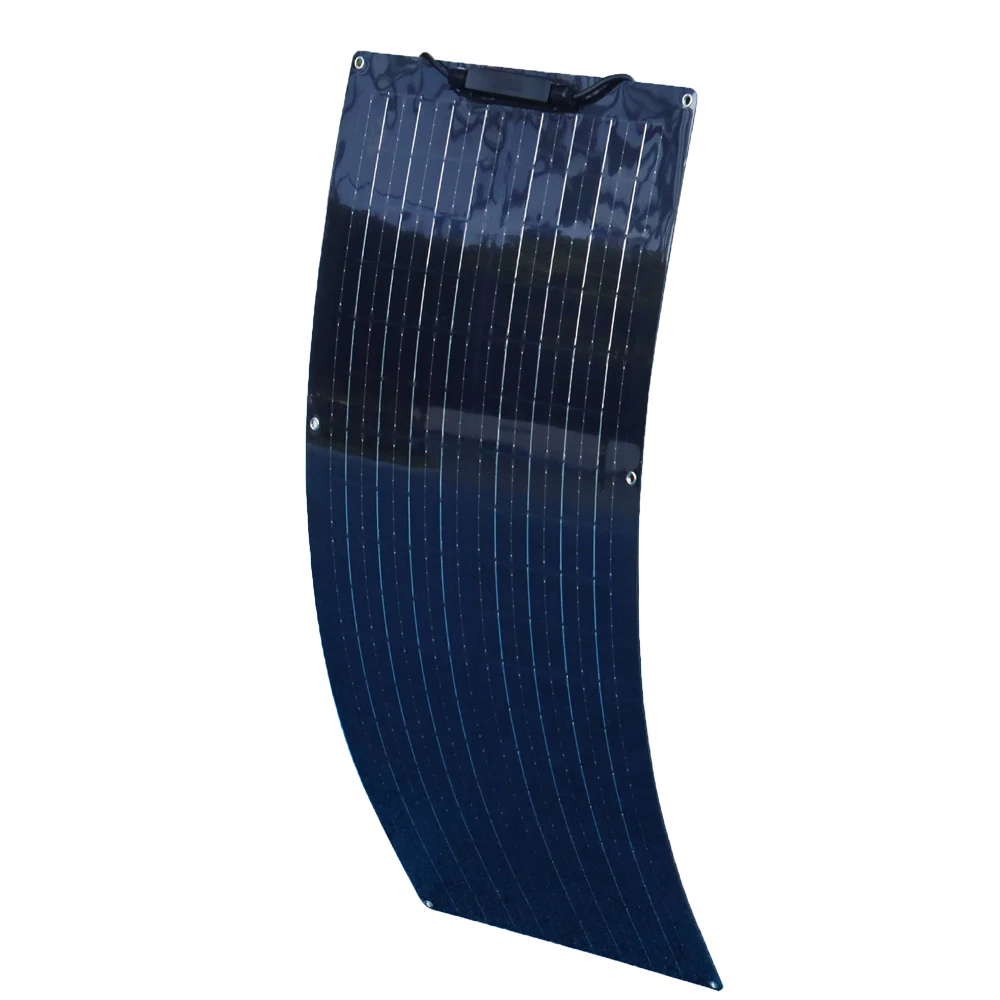

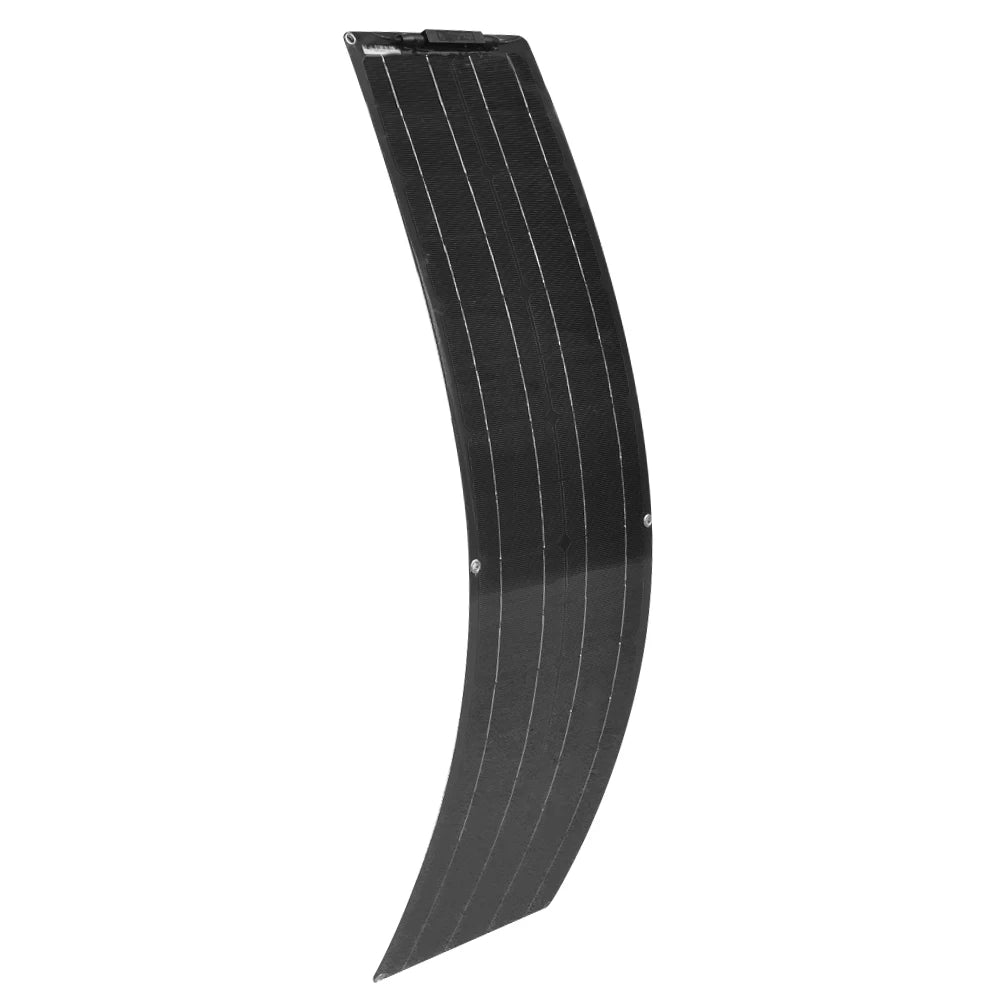

【Semi-flexible】 Can have a bending angle of up to 30 degrees. Can be used on a wide variety of irregular surfaces.
【High efficiency】 Made of highly efficient single crystal silicon, the efficiency is up to 24%. More compact size generate 30% more energy than market solar module, steady perfect energy generate power.
【Durable】 resistance to resistance, can withstand different environment, waterproof performance is good.
【Portable】 The thickness is only 3 mm, light weight, easy carrying, easy shipping, easy installation.
【Widely Applications】 It is widely used to put golf car, yacht, boat, caravan, electric car, travel tourism car, patrol car, roof top, camping, roof power generators, tent, portable bag, backpacks, portable generator kits, etc. Charge for 12V Battery, fix the problem that the device cannot start due to lack of power.
Off-Grid Solar System User Manual
Use attention
1. Please install the solar panel system in cloudy days. If installing in strong light, pay attention to protection against electric shock.
2. Normally red color is the positive electrode and black color is the negative electrode. The positive and negative electrodes must be installed correctly.
Do not directly connect the positive and negative poles of the solar panel to avoid short circuit.
3. Do not scratch or step on the solar panel during installation and use. Check in advance whether the controller, battery, inverter and other accessories are normal.
Installation process
1. First connect the battery to the controller to activate the controller. There is no display if only the solar panel is connected to the controller.
2. Then connect the solar panels, please install solar modules in a sunny and shadowless area. When using a 12V system, configuring 12V batteries and 16V/18V solar panels, so multiple solar panels need to be connected in parallel. When using a 24V system, configuring 24V batteries and 32V/36V solar panels, so every 2 solar panels need to be connected in series, then connect all pairs in parallel. And so on. The parallel requires the same voltage, especially the series requires the same current.
The schematic diagrams of parallel and series connection of solar panels are as follows
(the same applies to batteries):
Next, connect the inverter to the battery, and finally connect the load to the inverter. The low-power DC load can be directly connected to the controller, and the AC load needs to be connected to the inverter.
First connect the inverter wire to the positive and negative poles of the inverter and tighten them, and then connect the other end of the wire to the positive and negative poles of the battery. It is normal if there is a small spark. Then connect the load to the inverter and turn on the inverter switch to start the load.
Do not connect the inverter to the controller to avoid damage.
The whole connection diagram is as follow:
