19.8V 200W Glass Rigid Solar Panel China 26.4V 200W 400W Monocrystalline Waterproof Solar Panels Charging 12V Camping/Home/RV CE

WHY CHOOSE Our Glass Solar Panel

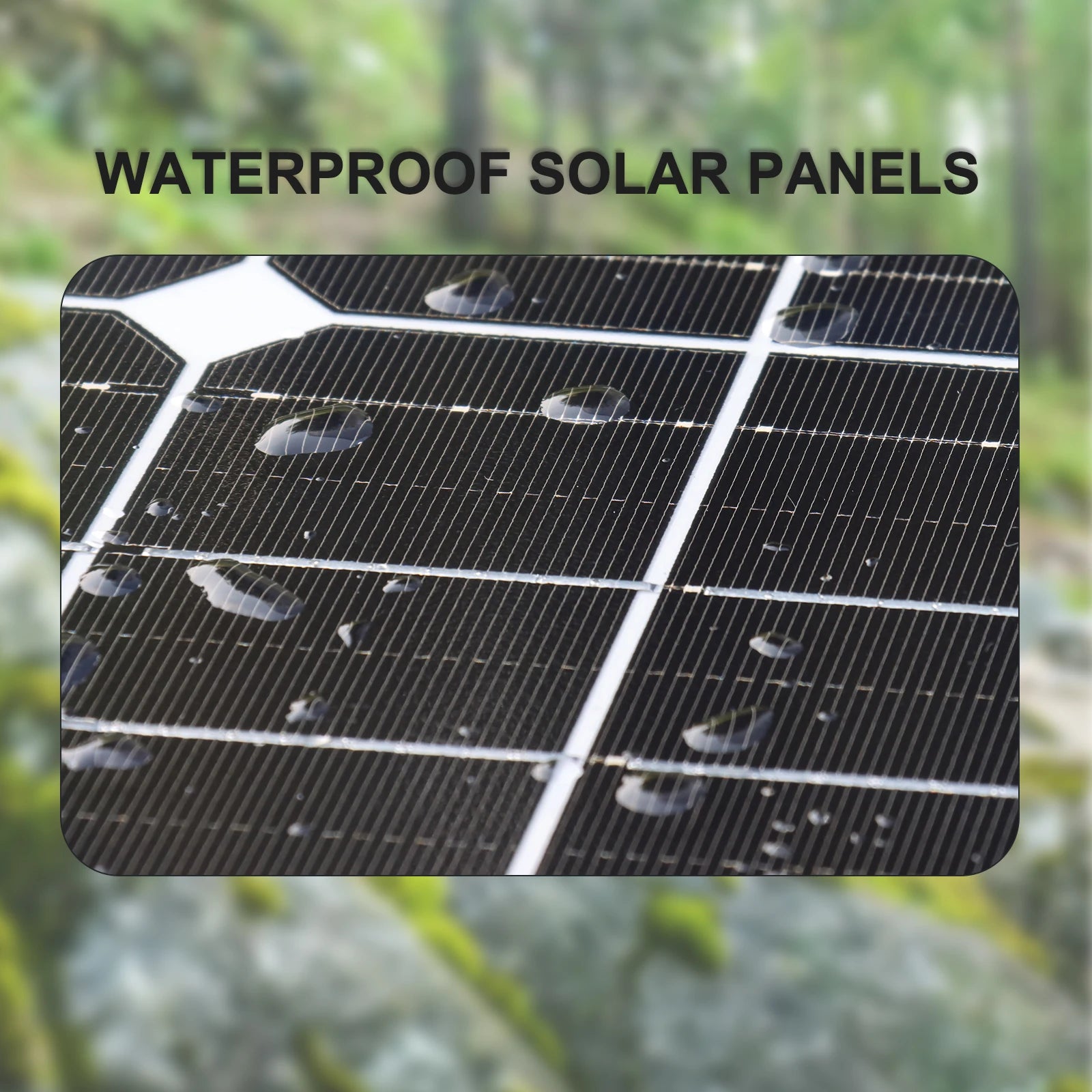

100% IP 67 waterproof

Bear Hailstorm

5 Years Warranty, 25 Year Lifetime

26.4V 200W Solar Panel Specification:

Maximum power(Pmax)                           200W

Output tolerance                                      ± 5%

Maximum system voltage                       1000V DC

Open circuit voltage(Voc)                         31.68V

Short circuit current(Isc)                          7.57A

Maximum power voltage(Vmp)               26.4V

Maximum power current(Imp)                8.3A

Cell efficiency                                           24%

Operating temperature(NOCT)          45±2℃

Temperature range                                 -40℃～+80℃

Cell                                                          Monocrystalline silicon

Number of cells                                       48pcs

Weight                                                     8kg

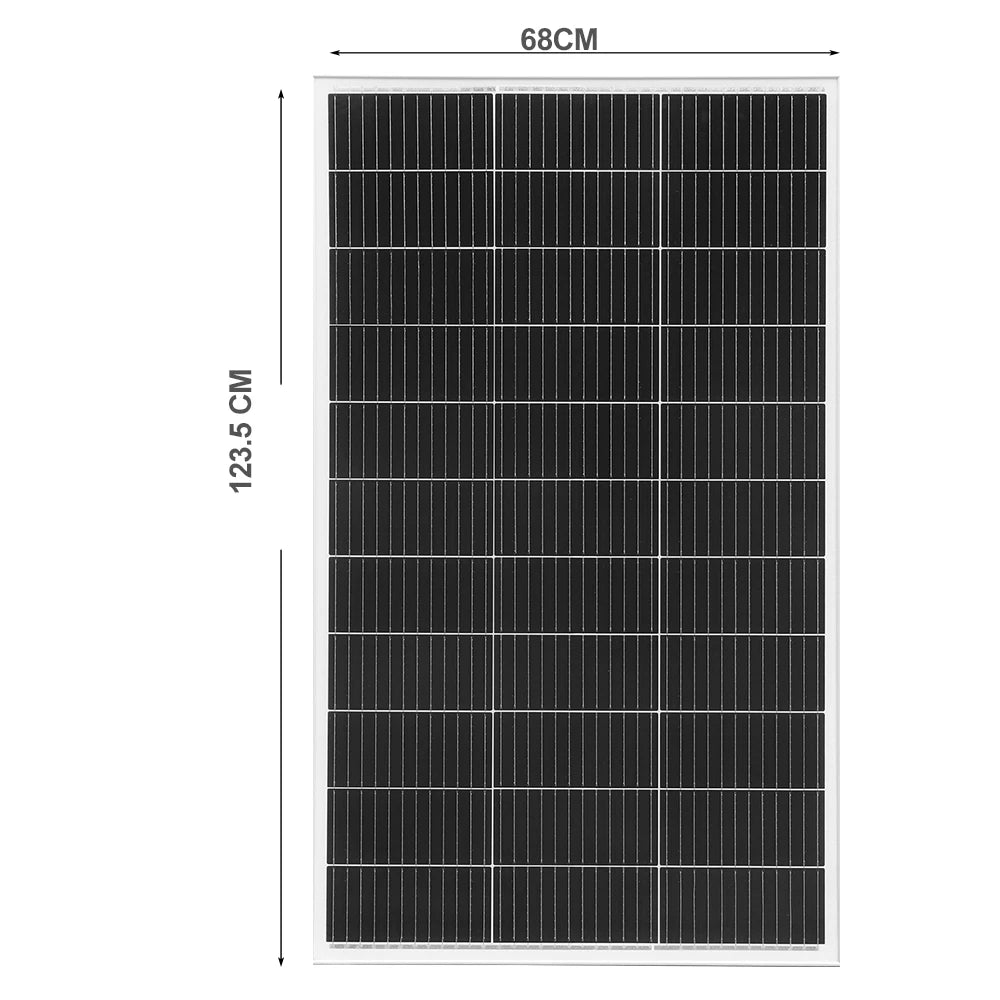

Size                                                          1160*700*25 mm

Surface material                                       Toughened glass

Back film Color                                        White

Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

Notes for use:

1.This product must not come into contact with highly corrosive substances.

2.It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

3.A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

4.The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

5.The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

6.It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

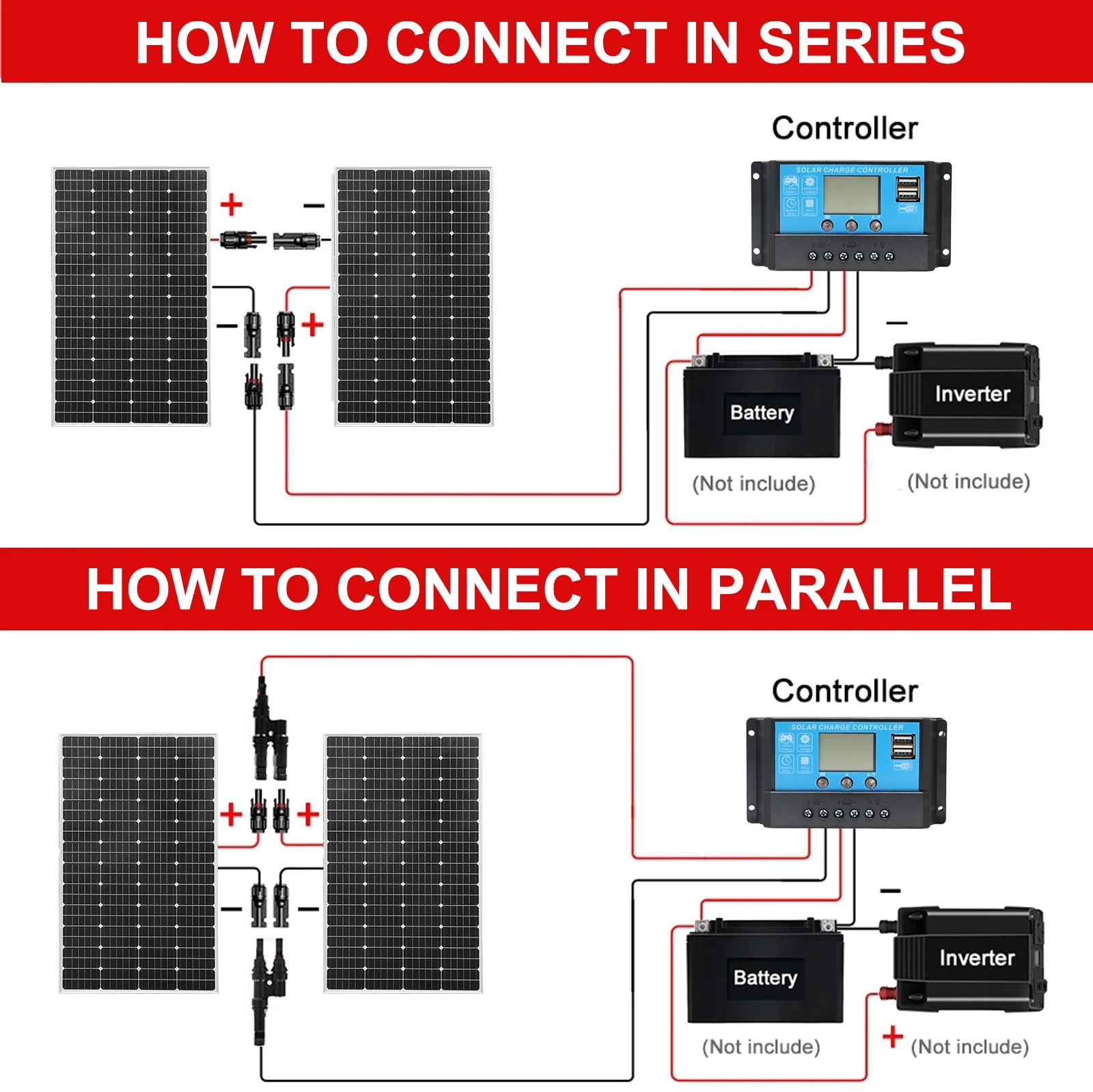

7.The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

8.The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

9. The inverter can only be connected to the battery, not directly to the controller.

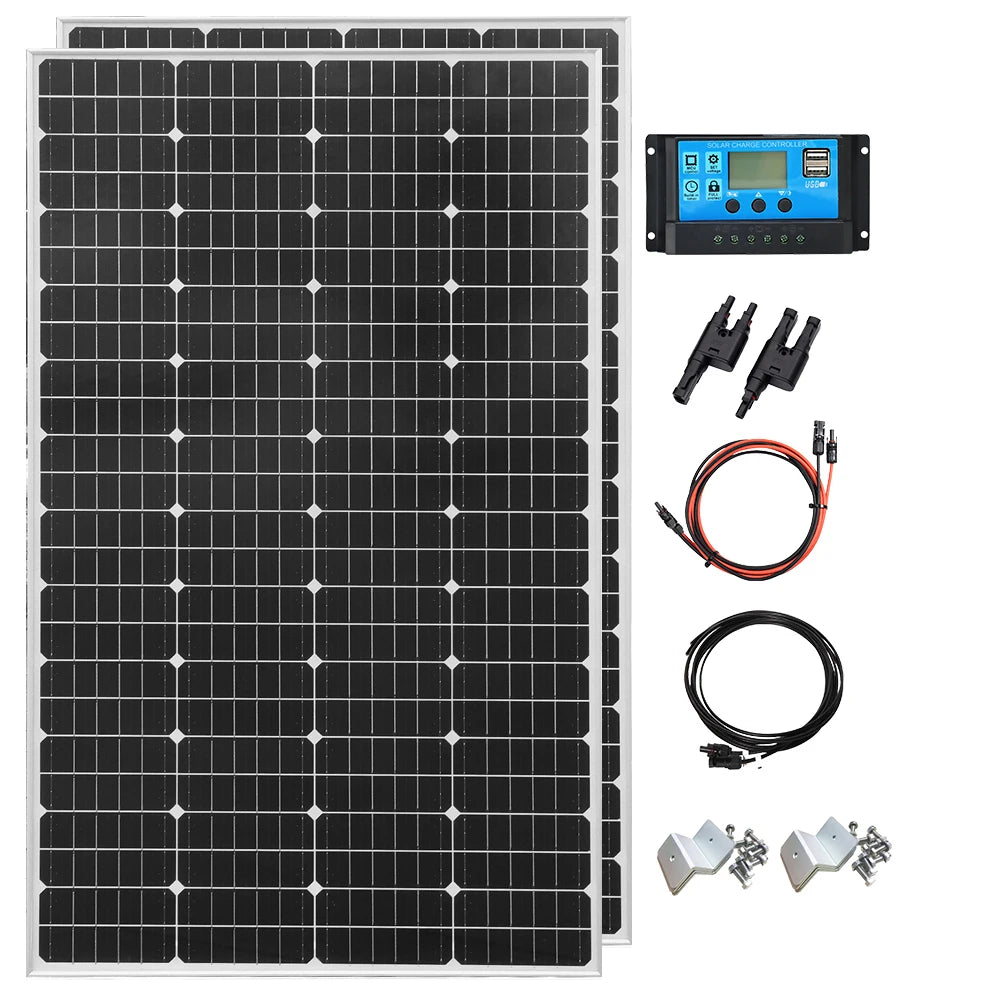

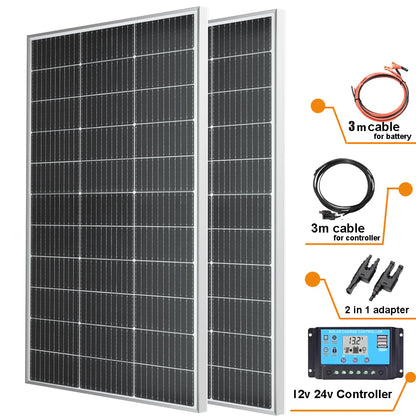

Packing list

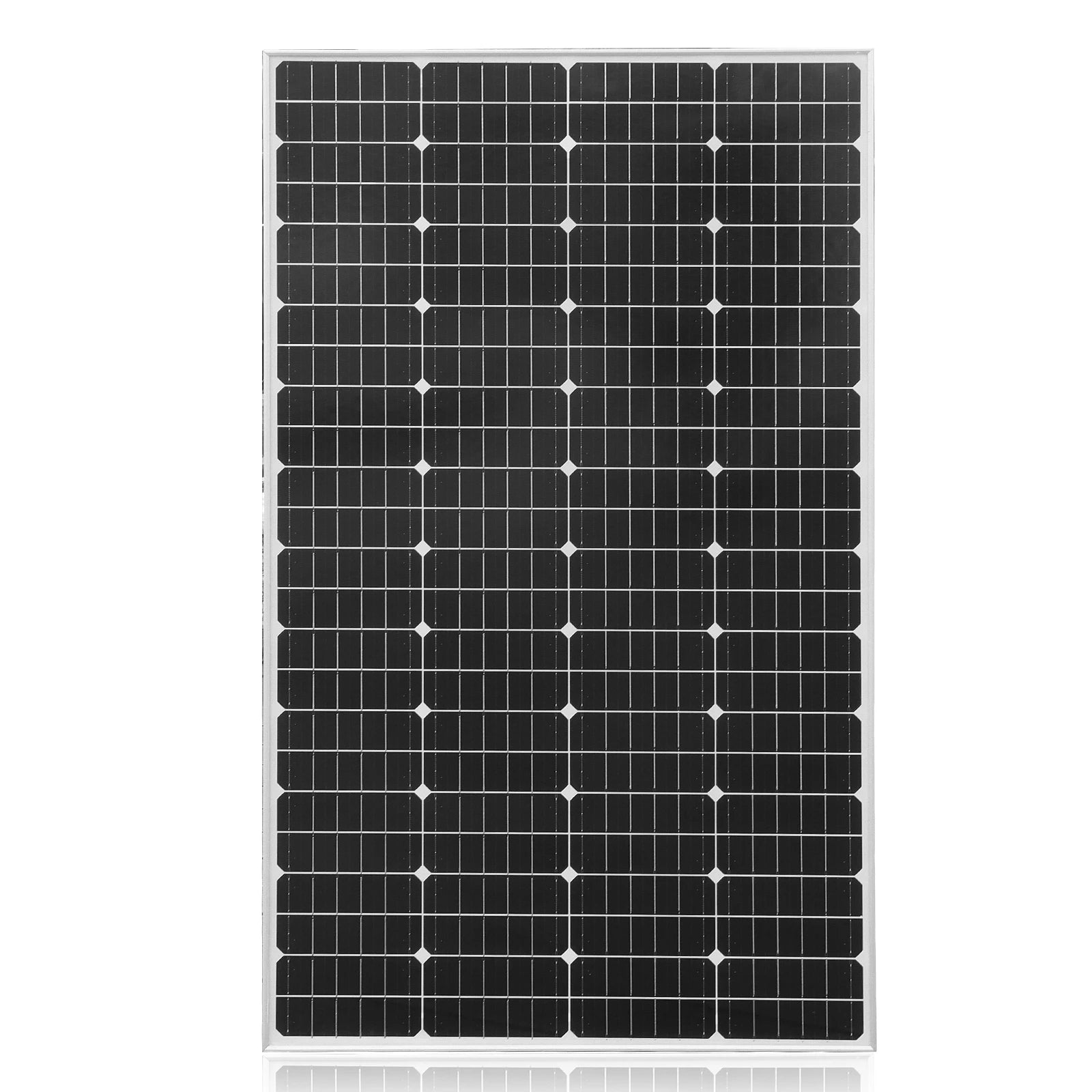

1 x 200W 18V Solar Panel (200W)

or

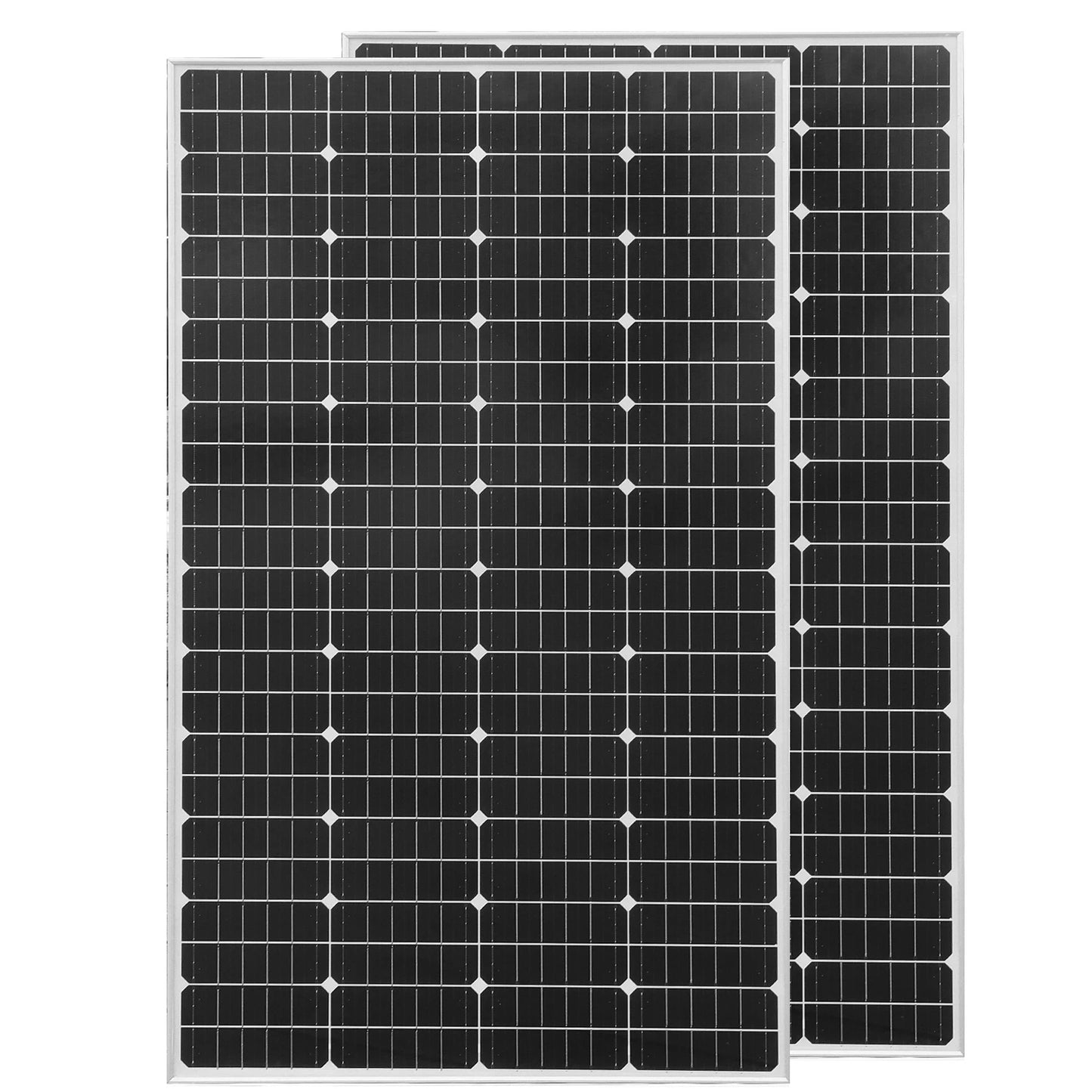

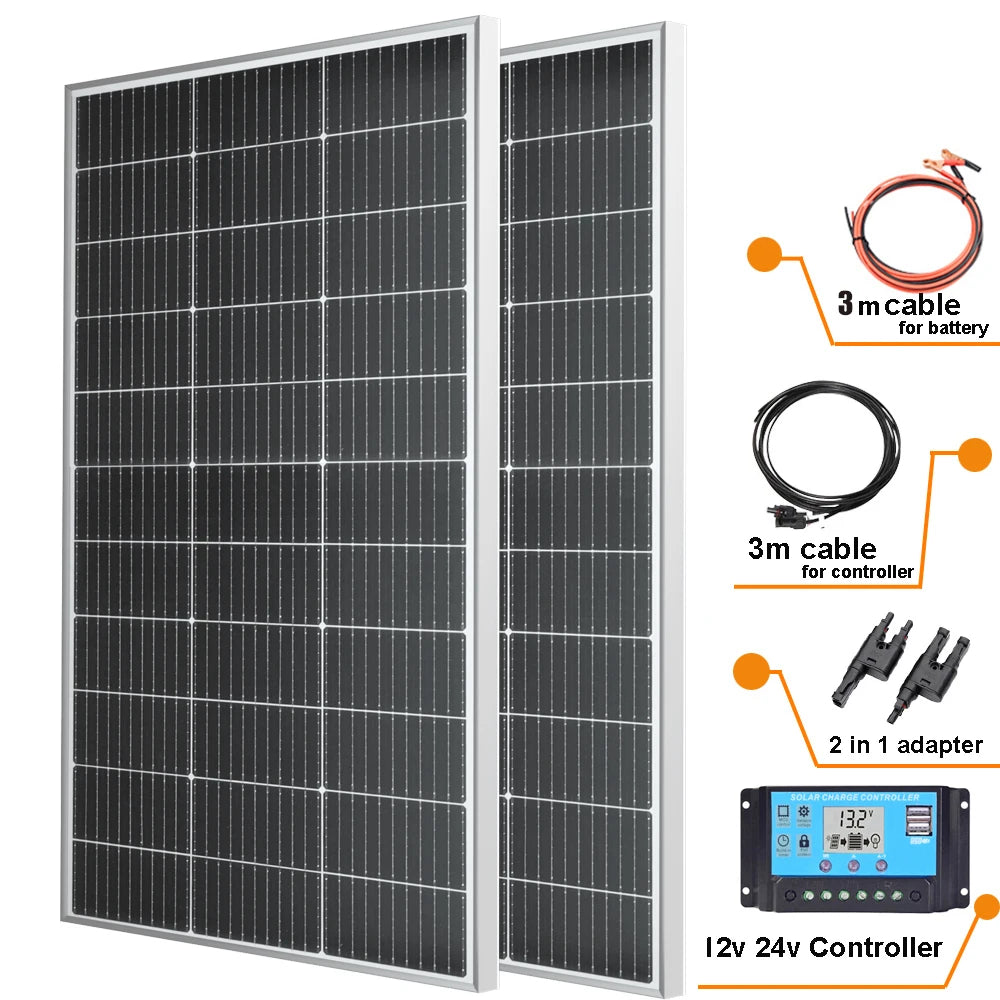

2 x 200W 18V Solar Panel (400W)

or

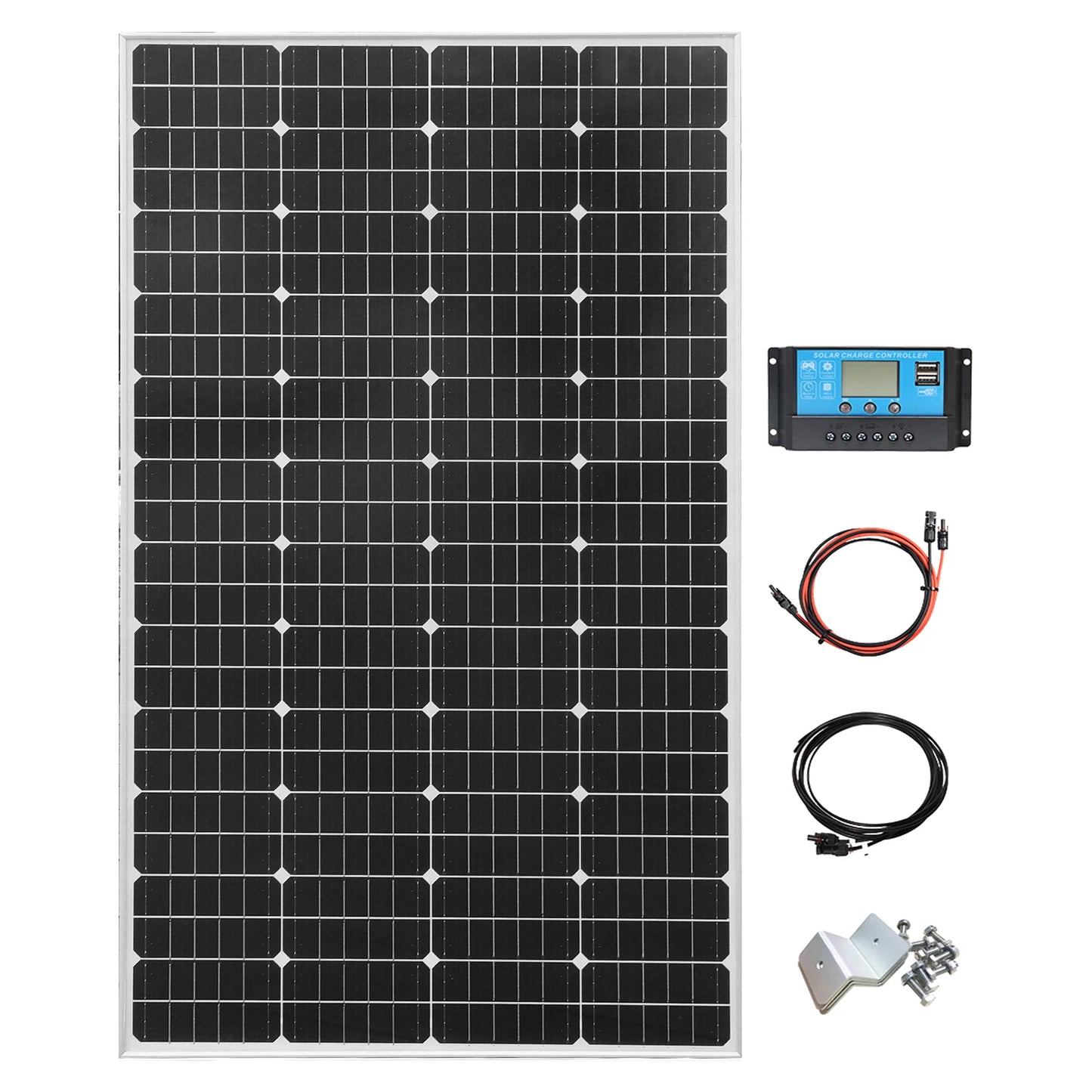

1 x 200W 18V Solar Panel (200W Kit)

1 set 3m cable with PV connector

1 set 3m cable with Alligator clip

1 X 20A Controller

1 set 2 in 1 PV adapter
