Delap Living

200W 12V Flexible Solar Panel 2x100W Monocrystalline Cell 24V Flexible for Marine RV Trailer Boat Cabin Van Car Battery Charge

200W 12V Flexible Solar Panel 2x100W Monocrystalline Cell 24V Flexible for Marine RV Trailer Boat Cabin Van Car Battery Charge

Regular price $368.11 USD
Regular price $0.00 USD Sale price $368.11 USD
Sale Sold out
Color
Ships From
Quantity

SPECIFICATIONS

Brand Name: xinpuguang

Certification: CE,FCC,RoHS,weee

Flexible Solar Panel: Yes

Foldable Solar Panel: No

High-concerned chemical: none

Material: Monocrystalline Silicon

Max. Power: 200W-2x100w

Model Number: XP-100W-975M x 2

Module Efficien: 24%

Nominal Capacity: 200W

Number of Cells: 30 pcs

Number of Panels: 2

Origin: Mainland China

Rigid Solar Panel: No

Size: 975*550*3mm

Type: Solar Panel

is_customized: Yes



200W 12V Flexible Solar Panel 2x100W Monocrystalline Cell 24V Flexible for Marine RV Trailer Boat Cabin Van Car Uneven Surfaces Battery Charge

This link offers four options:
- Two 100W black solar panels
- Two 100W white solar panels
- 200W black solar panel kit
- 200W white solar panel kit

solar panel specifications:

Aximum power(pmax) 100w

Maximum system voltage 600v dc

Open circuit voltage(voc) 19.8v

Short circuit current(isc) 6.66a

Maximum power voltage(vmp) 16.5v

Maximum power current(imp) 6.06a

Number of cells 30pcs

Weight 2kg

Yesze 975mm*550mm*3mm

Operating temperature(noct) 45 plus or minus 2 celsius system

Stc: lrradiance1000w/m2,temperature 25 celsius system, am=1.5

Please note that the solar panel power output refers to the test output at stc: lrradiance1000w/m2,temperature 30 celsius system, am=1.5
The output power of other tests in different environments will be different.In addition, the solar panel needs to be in the sun to have output.If you want to test, you need to test it in the sun

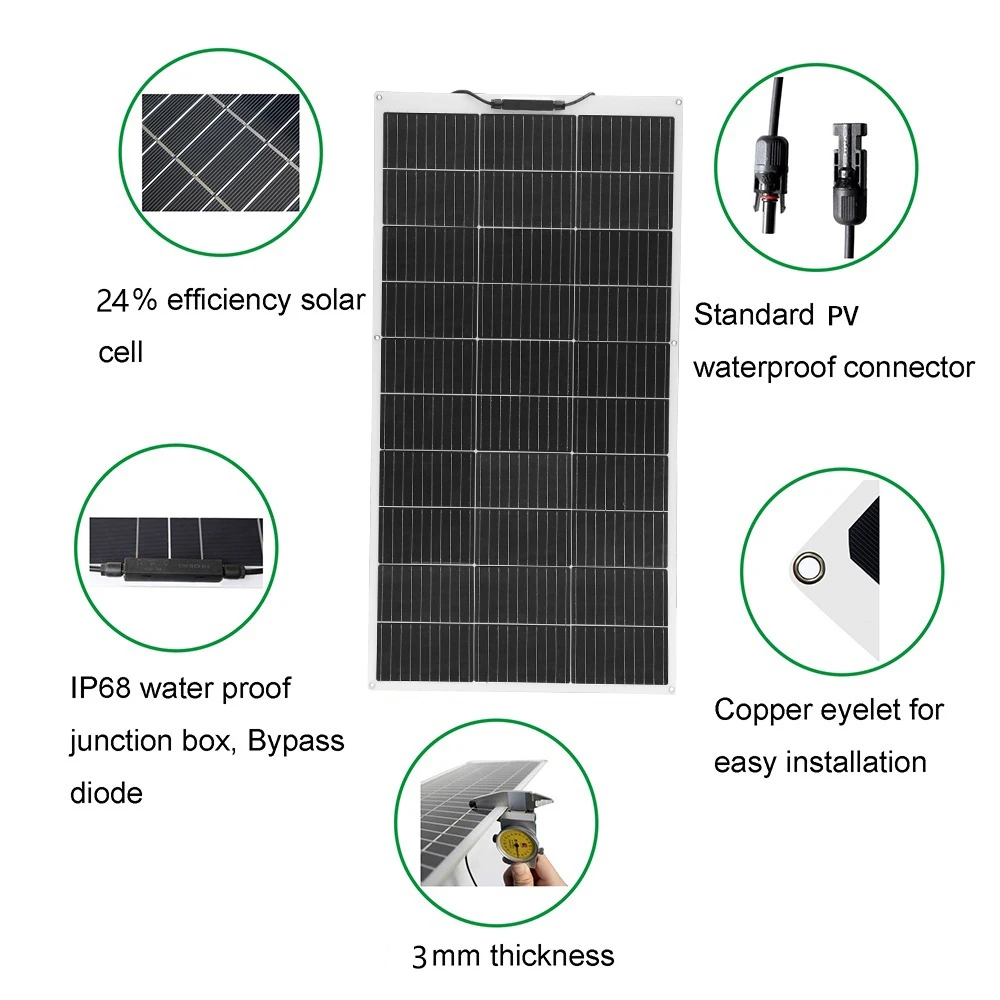

Features:

a. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.
b. Using the latest component packaging technology, thinner, lighter, softer and longer life.
c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.
e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.
f. Use photovoltaic special cable and MC4 connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. MC4 connector is easy to use, plug and play.

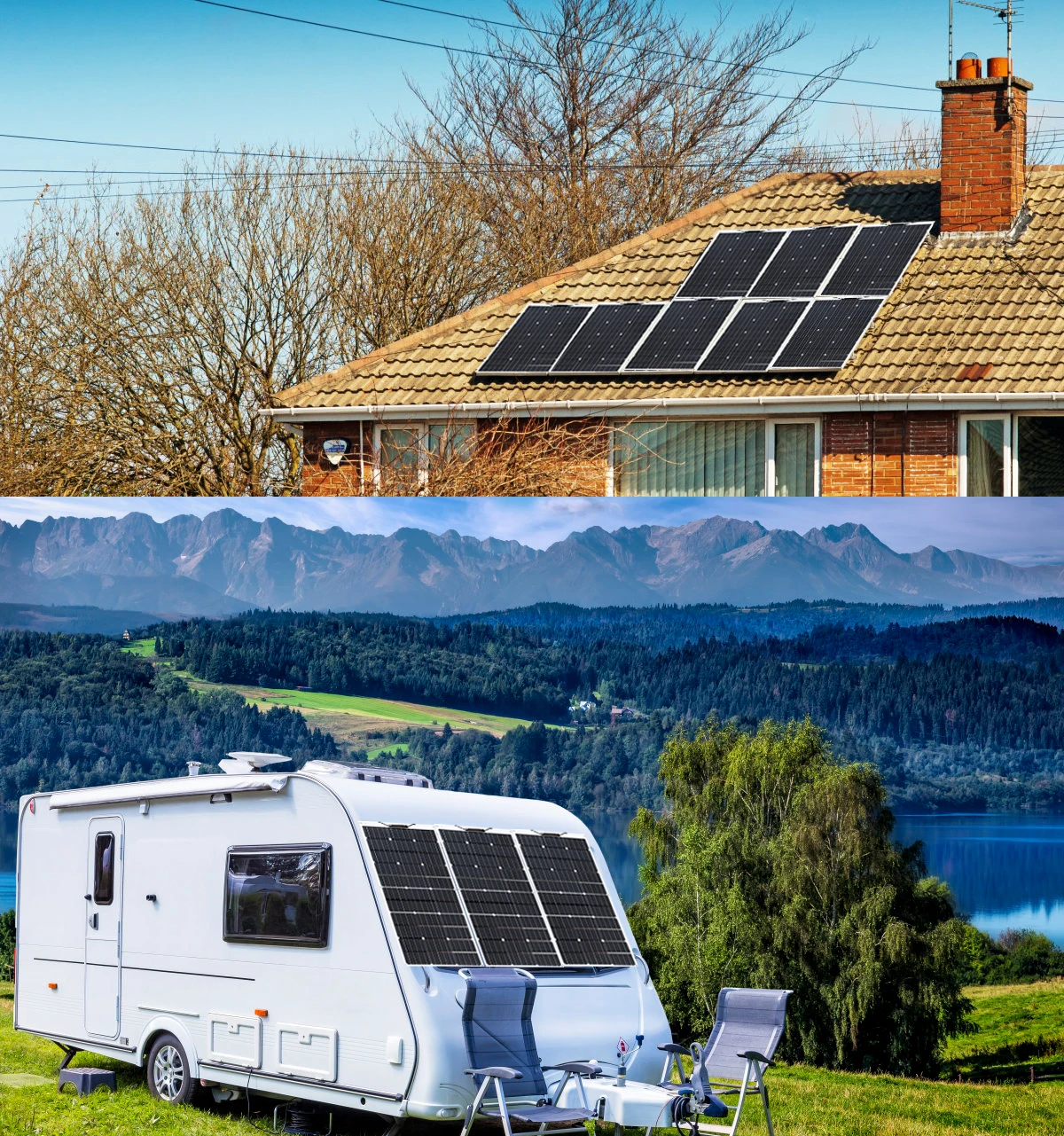

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

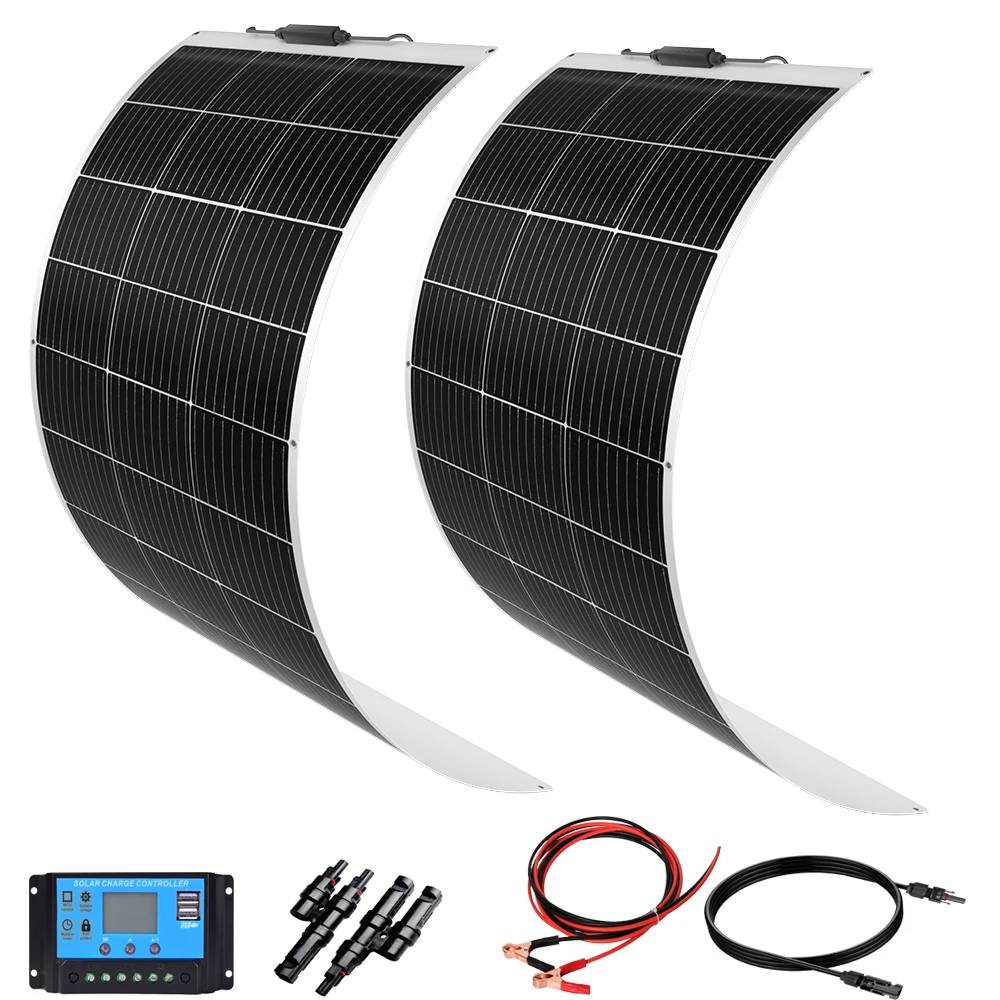

Packing list

2 x 100W 16.5V Solar Panel (200W)

OR
2 x 100W 16.5V Solar Panel (200W solar Kit)

1 set 3m cable with PV connector

1 set 3m cable with Alligator clip

1 X 20A Controller

1 set 2 in 1 PV adapter

* conversion efficiency 24%.

* generate electricity all day in the sun.

* can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage,

* lightweight and easy to install.

* outdoor photovoltaic power generation portable device.

* wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.
