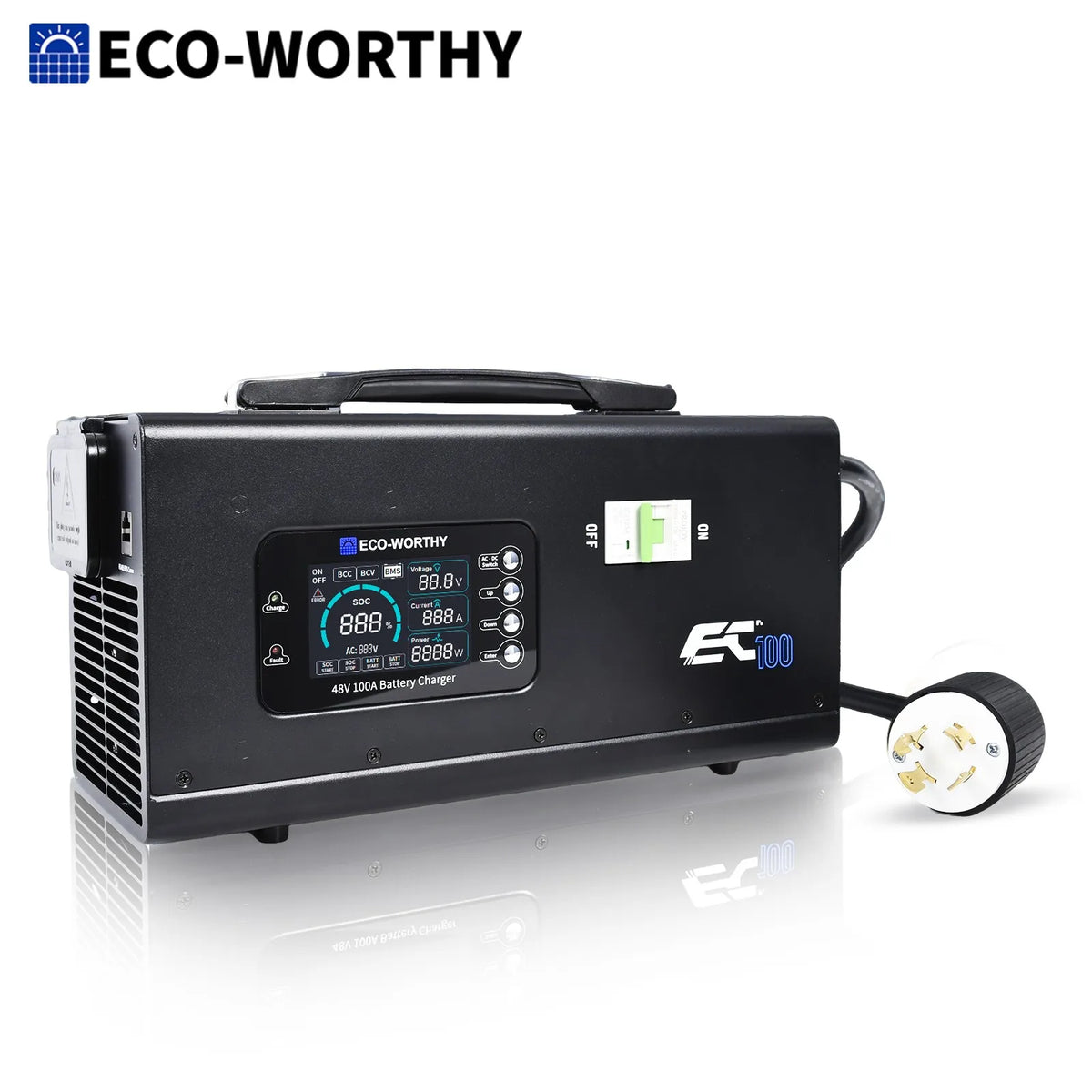

ECO-WORTHY 48V 100A Battery Charger for LiFePO4, Suitable for 120/240V Generators Fast Charging, for 48V 100Ah Battery
ECO-WORTHY 48V 100A Battery Charger for LiFePO4, Suitable for 120/240V Generators Fast Charging, for 48V 100Ah Battery
Couldn't load pickup availability
SPECIFICATIONS
AC Input Voltage: 90-260Vac, 50-60Hz
Application: Home
Battery Voltage: 48V
Brand Name: ECO-WORTHY
Charge Current (Adjustable): 2-100A@240Vac; 2-60A@120Vac
Charge Voltage (Adjustable): 42-57.8Vdc (Default 57.6Vdc)
Country of Origin: China
DC Circuit-breaker: 125A
Dimensions: 12.8*5.3*6.3in
High-concerned chemical: none
Load Power (W): 100A
Max. Input Current: 28A@240Vac / 14A@120Vac
Max. Output Power: 5780W@240Vac / 2890W@120Vac
Model Number: 1100700160
Operating Temperature Range: 14°F-131°F
Origin: Mainland China
Output Voltage (V): 48V
Peak Efficiency: 92% @240Vac ; 88% @120Vac
Relative Humidity: 5% to 95% relative humidity (non-condensing)
Solar Power (W): 100A
Specification: Normal
Standby Power Consumption: ≤140W
Storage Temperature Range: 5°F-140°F
Type: Solar Battery Charger
Warranty Period: 3 years
Weight: 14.33lbs
Work Time (h): 24H
[Power Input & Output]

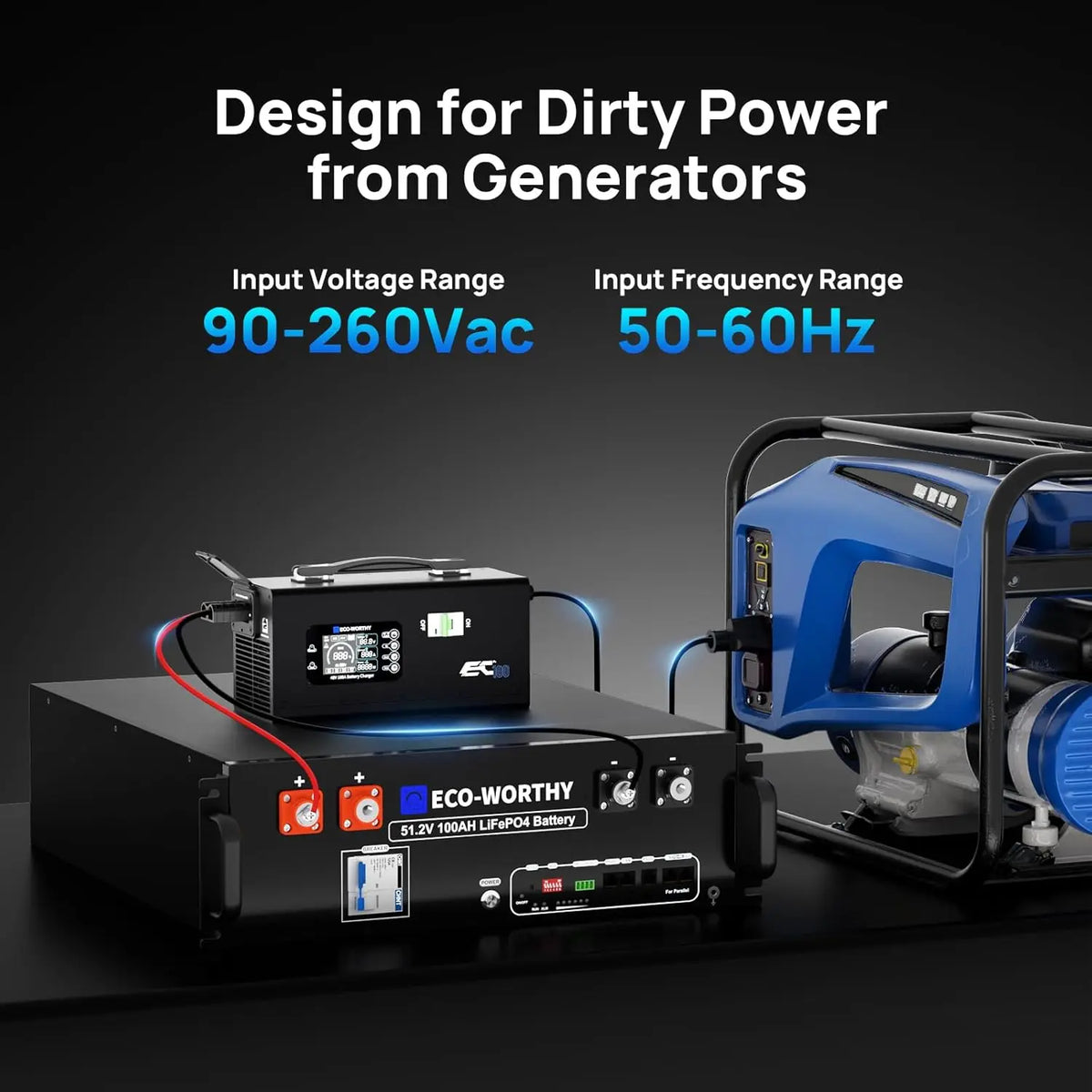

This highly compatible, high-performance power supply accepts 90-260V AC input, perfectly handling high total harmonic distortion (THD) dirty power from generators, and provides fast charging according to your specific needs, with a charging current that can be set from 2-100A.
[Versatile Setup Options]
The charger comes standard with a NEMA L14-30P plug, and an L5-30P plug is included in the package for replacement to adapt to different AC power sources. The DC output uses a detachable Anderson connector, allowing for modification with longer cables.
[Portable & Mountable Design]
The charger comes with a comfortable carrying handle, making it easy to transport to wherever you need to use it. A wall-mounting bracket is included in the package, allowing you to mount the charger on the wall. It also features four non-slip rubber feet on the bottom.
[Smart Touchscreen Interface]
The 3.5-inch color LCD screen features integrated backlighting, allowing for clear data display under any lighting conditions. Four control buttons facilitate easy parameter settings, and the device supports automatic charging start and stop based on battery voltage or SOC (State of Charge).
[Smart Communication & Control]
The charger can communicate with the battery to obtain the battery's SOC (State of Charge) data to guide its operation. It can also transmit start/stop signals to the generator via the RJ11 port.
