SPECIFICATIONS

Brand Name: CHENGXIANGUANGDIAN

Display Function: Graphics

High-concerned chemical: none

Item Weight: 10 Kilograms

Model Number: P4

Origin: Mainland China

Pixels: 4mm

Size: 40"L x 40"W

Tube Chip Color: Full Color

Use: Outdoor

is_customized: Yes

Durable Construction: Features a robust 40" x 40" aluminum case, suitable for both outdoor and indoor use, ensuring longevity and resilience.

Advanced Display: Utilizes P4 SMD technology with a high resolution of W240 x H240 dots, capable of displaying colorful images, videos, and scrolling texts.

Flexible Programming: Supports content updates via Wi-Fi using a smartphone app (iOS/Android) or through a U-disk with PC software (Windows OS only).

Versatile Layouts: Offers switchable display modes including vertical OPEN, vertical LED SIGN, and horizontal LED DISPLAY to suit various advertising needs.

Energy Efficient: Designed for low power consumption, providing an attractive LED sign solution with reduced operational costs.

Broad Applications: Ideal for diverse public settings such as shopping malls, supermarkets, hotels, and exhibitions to capture attention effectively.

Comprehensive Package: Includes a USB flash drive with programming software, two adjustable mounting holders, and a power plug for immediate setup.

【How to program】

Install the HDplayer software on your computer, note that the software only supports Windows computers Setup the parameters

Open the software and set the correct screen parameters in the pop-up window or Click "Setting"→"Screen Parameter Setting", into the parameter setting interface：

Device type: C16L , width: 240 , height: 240 . then you can adding programs what you want to display on LED sign including texts, date,time, pictures Videos.

Send the programs to LED sign by WiFi or USB

After finishing editing, the contents can be sent to the screen and will be showed on screen. The control card support updating programs through WiFi and U-Disk.

【Package Including】

◆*1*U disk

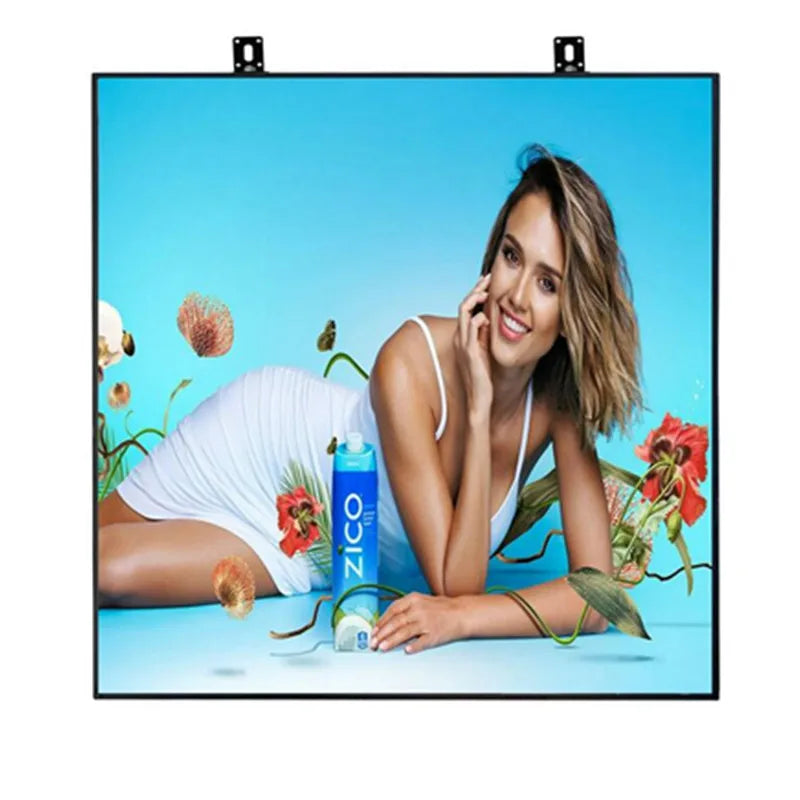

◆2* mounting points that can be adjusted

◆1*Programming software on USB flash memory

◆1*Printed instruction manual on English language

◆1* 40" x 40" SMD Full Color P4 mm Programmable LED Sign

【LED Display Parameter】

Specification / LED Display Parameter

❤Viewing Angle: 120°/70°

❤Voltage:110V ±10%

❤Brightness(CD/m²): 5000CD

❤Support: Win8/Winxp/ Win7/ W10

❤Cabinet Resolution (Pixel): W240 x H240

❤Cabinet Size: W1030x H1030MM(40 x 40Inch)

❤Power Consumption Max(w/set): 100Watt

❤Theoretic LED Working Life: ＞100000 hours

❤Control Method: Wifi +USB control
